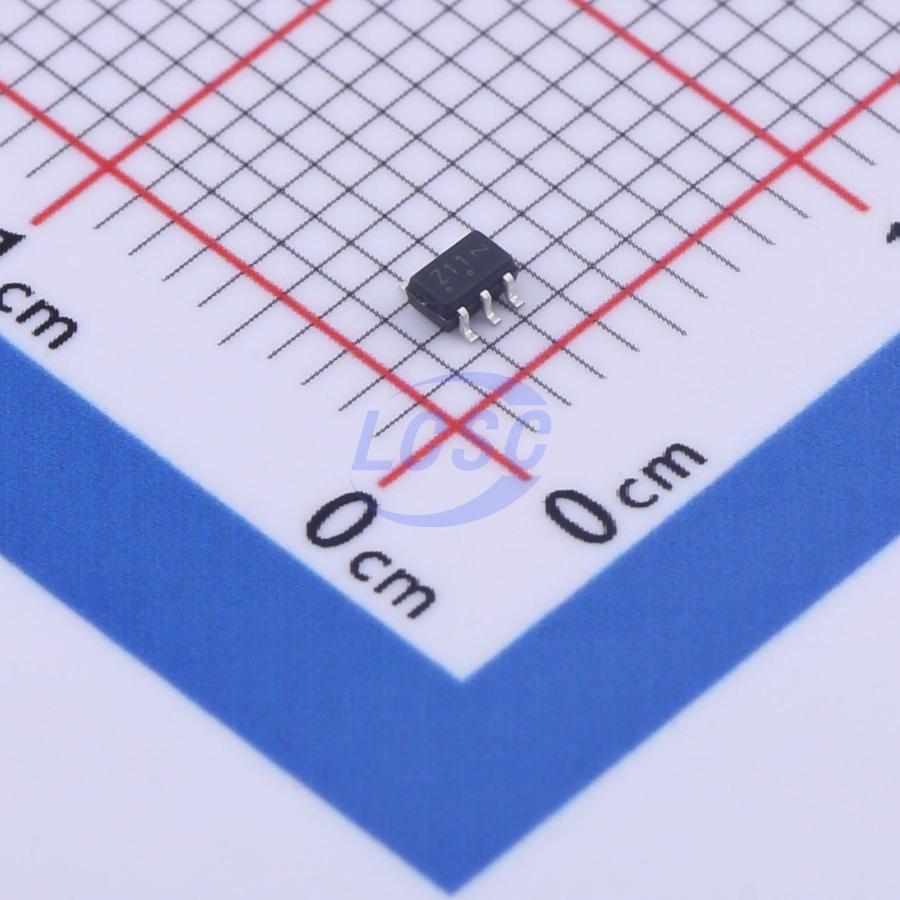

TinyLogic UHS Three-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ11P6X
- Store part #
- C891952
- Package / case
- SC-70
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,130 in stock
#C891952
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.73 | ₹53.65 |
| 50+ | ₹8.19 | ₹409.50 |
| 150+ | ₹6.92 | ₹1,038.00 |
| 500+ | ₹5.97 | ₹2,985.00 |
| 3,000+ | ₹5.21 | ₹15,630.00 |
| 6,000+ | ₹4.83 | ₹28,980.00 |
5 × ₹10.73
₹53.65
excl. GST
₹63.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ11P6X
₹53.65 for 5 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7SZ Series
- Output Logic Level - High
- 1.55V;2.2V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;3
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 100mV;550mV
- Propagation Delay
- 2.9ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The NC7SZ11 is a single three−input AND Gate from ON Semiconductor’s Ultra−High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage.
Key features
- Ultra−High Speed: tpD = 2.9 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Power Down High Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SC70 Package
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
