NC7SZ126M5X-L22090
20uA 1.65V~5.5V 2.6ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSDiscontinued

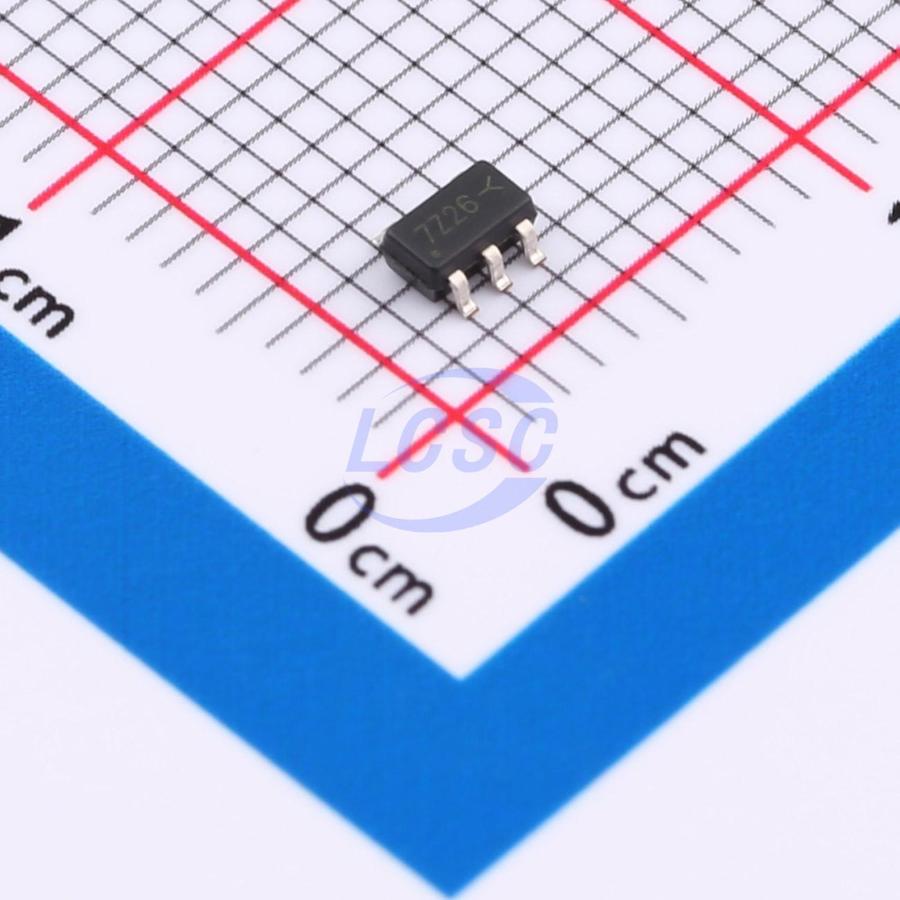

TinyLogic UHS Buffer with Three-State Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ126M5X-L22090
- Store part #
- C5207771
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,550 in stock
#C5207771
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.20 | ₹91.00 |
| 50+ | ₹16.03 | ₹801.50 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹13.96 | ₹6,980.00 |
| 3,000+ | ₹13.44 | ₹40,320.00 |
| 6,000+ | ₹13.12 | ₹78,720.00 |
5 × ₹18.20
₹91.00
excl. GST
₹107.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ126M5X-L22090
₹91.00 for 5 + GST
Specifications
- output type
- Tri-State
- Features
- Local shutdown mode;Overvoltage-tolerant input;Rear drive protection;Controllable output enable
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.55V;2.2V;2.9V;4.4V
- Quiescent Current(Iq)
- 20uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;1
- Propagation Delay
- 2.6ns@5V,50pF
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The NC7SZ126 is a single buffer with three−State output from onsemi’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high impedance above ground when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. The output tolerates voltages above VCC in the 3−STATE condition.
Key features
- Ultra−High Speed: tpD = 2.6 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX when Operated at 3.3 V VCC
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SOT23−5, SC−74A and SC−88A Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
