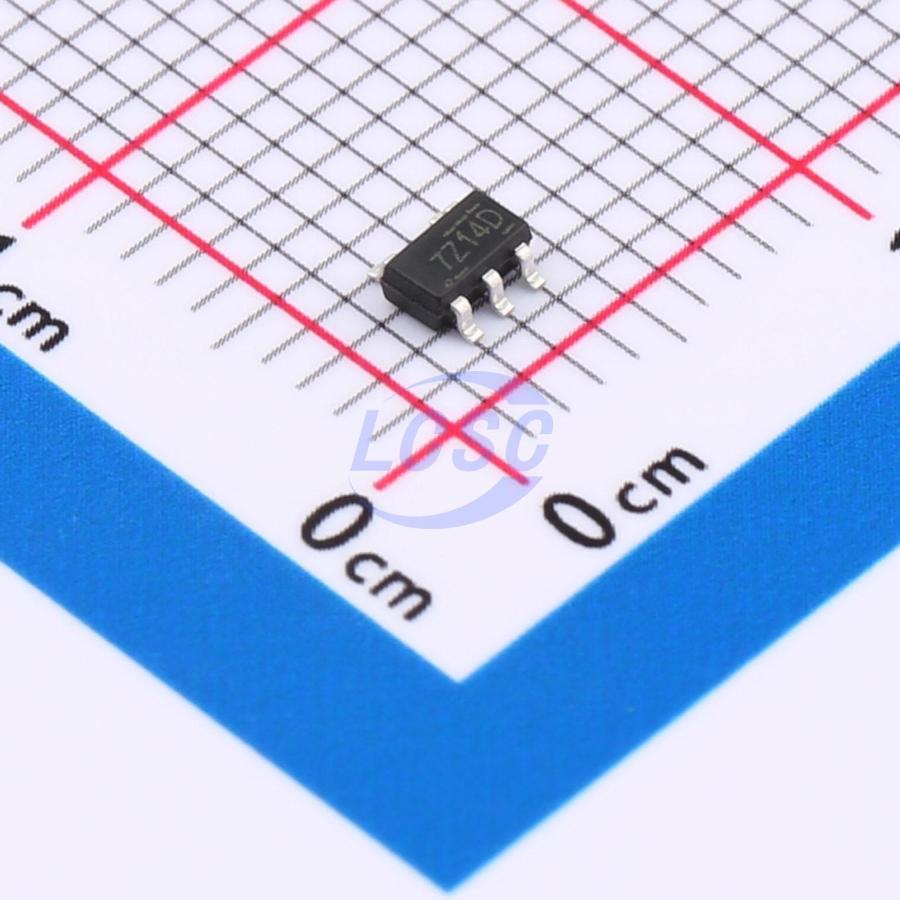

NC7SZ14M5X
Schmitt trigger 1.65V~5.5V 8ns@5.5V,50pF 10uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE SCHMITT-TRIGGER INVERTER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ14M5X
- Store part #
- C42370506
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,750 in stock
#C42370506
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.80 | ₹1,440.00 |
| 1,000+ | ₹4.55 | ₹4,550.00 |
| 5,000+ | ₹4.35 | ₹21,750.00 |
| 10,000+ | ₹4.26 | ₹42,600.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ14M5X
₹57.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 8ns@5.5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The is a single Schmitt-trigger inverter, it provides the function v = A. The device have different input threshold levels for positive going (V T+) and negative-going (VT-) signals because of the Schmitt-trigger action in the input.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
Key features
- Operation Voltage Range: 1.65V~5.5V
- Power Down Protection ±24mA
- Output Drive (VCC = 3.0V)
- Low Power Consumption, 10μA Max ICC
- Power Down High Impedance Inputs / Outputs
