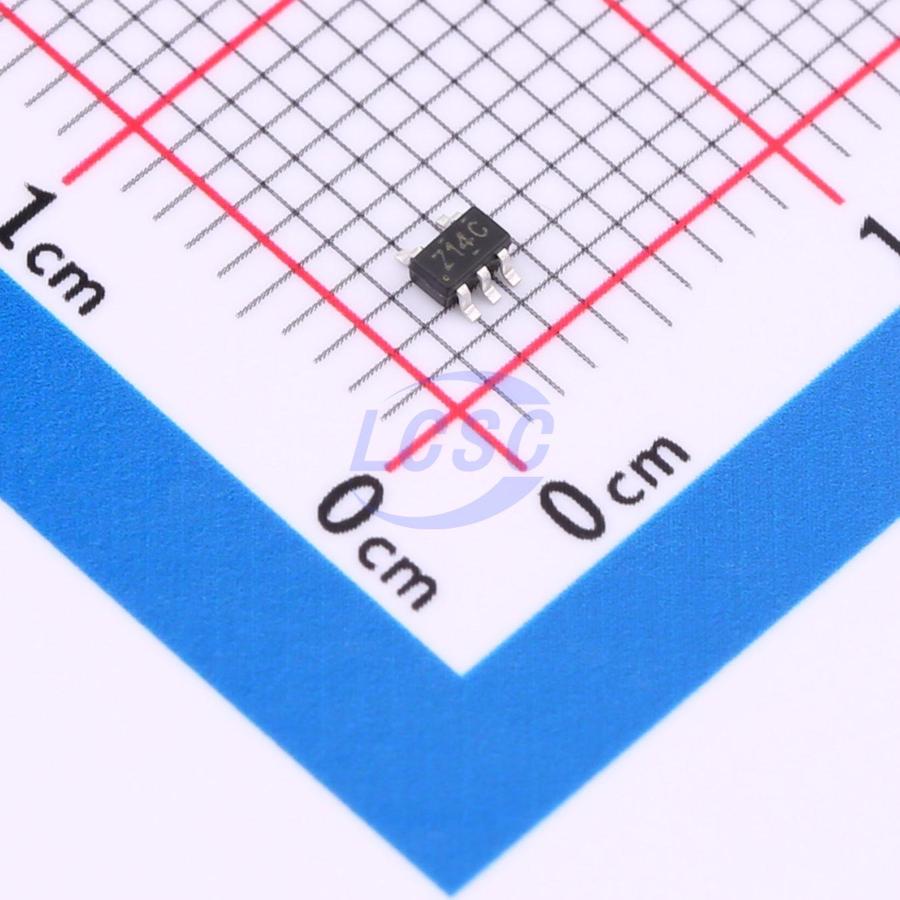

NC7SZ14P5X
Schmitt trigger 1.65V~5.5V 8ns@5.5V,50pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE SCHMITT-TRIGGER INVERTER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ14P5X
- Store part #
- C19829606
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,630 in stock
#C19829606
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.23 | ₹62.30 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.21 | ₹1,263.00 |
| 3,000+ | ₹3.69 | ₹11,070.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.08 | ₹27,720.00 |
10 × ₹6.23
₹62.30
excl. GST
₹73.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ14P5X
₹62.30 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 8ns@5.5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The is a single Schmitt-trigger inverter, it provides the function v = A(overline). The device have different input threshold levels for positive going (V(T+)) and negative-going (VT-) signals because of the Schmitt-trigger action in the input.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Operation Voltage Range: 1.65V ~ 5.5V
- Power Down Protection ±24mA
- Output Drive (VCC = 3.0V)
- Low Power Consumption, 10μA Max ICC
- Power Down High Impedance Inputs / Outputs
