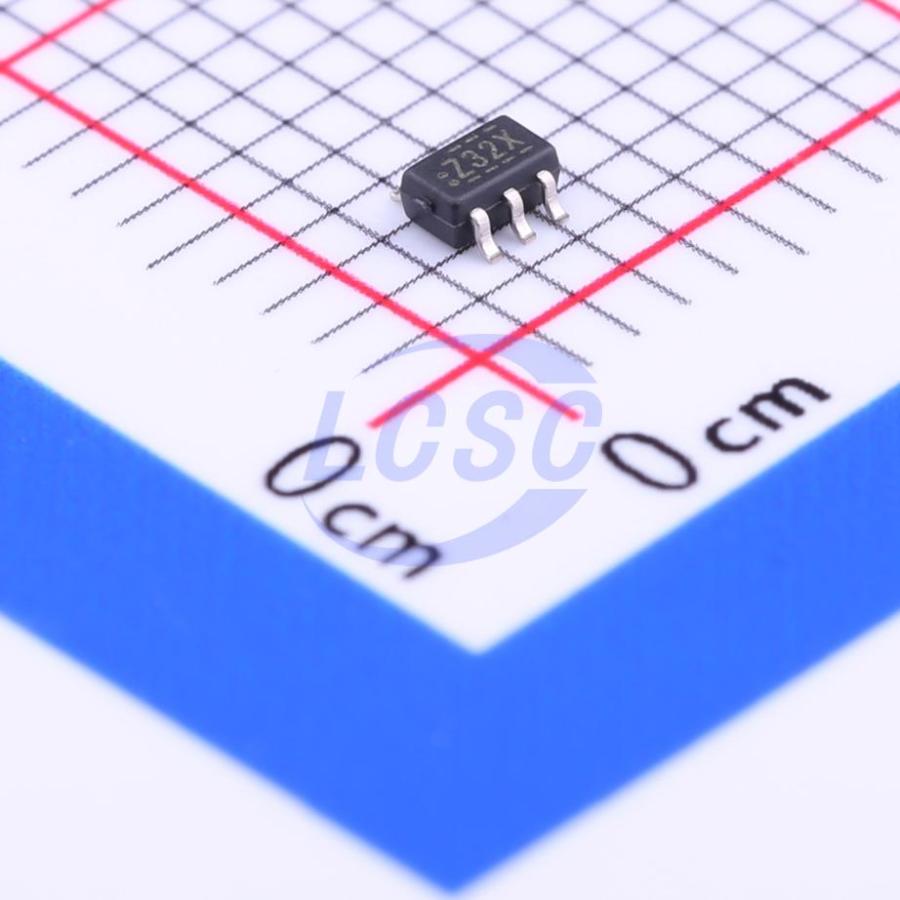

TinyLogic UHS Two-Input OR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ32P5X
- Store part #
- C232803
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,239 in stock
#C232803
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹8.28 | ₹8.28 |
| 10+ | ₹6.46 | ₹64.60 |
| 30+ | ₹5.54 | ₹166.20 |
| 100+ | ₹4.86 | ₹486.00 |
| 500+ | ₹4.31 | ₹2,155.00 |
| 1,000+ | ₹4.04 | ₹4,040.00 |
1 × ₹8.28
₹8.28
excl. GST
₹9.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ32P5X
₹8.28 for 1 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7SZ Series
- Output Logic Level - High
- 3.8V~4.2V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 0V~100mV;220mV~550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The NC7SZ32 is a single two−input OR gate from onsemi’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage.
Key features
- Ultra−High Speed: tpD = 2.4 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX Operated at 3.3 V VCC
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SOT23−5, SC−74A and SC−88A Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
