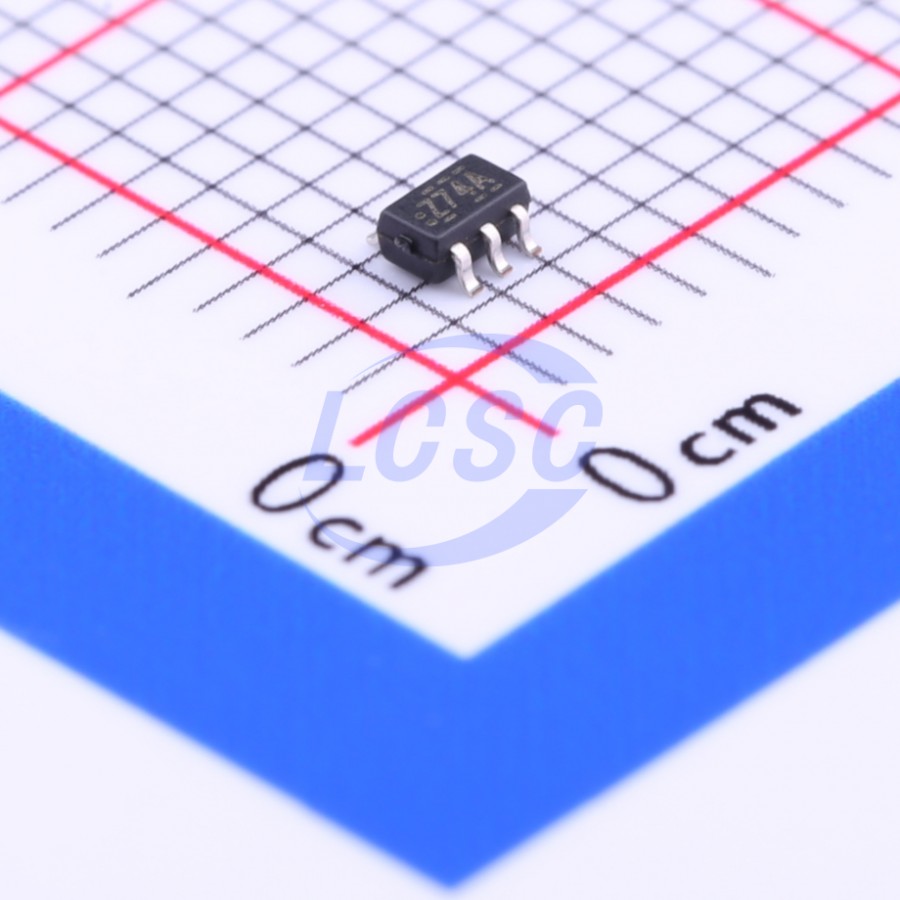

NC7SZ374P6X
1.65V~5.5V 1 1 4ns@5V,50pF SC-70-6 Flip Flops RoHS
UHSD-Type Flip-Flop with 3-STATE Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ374P6X
- Store part #
- C232790
- Package / case
- SC-70-6
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,925 in stock
#C232790
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.63 | ₹73.15 |
| 50+ | ₹11.62 | ₹581.00 |
| 150+ | ₹10.11 | ₹1,516.50 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 3,000+ | ₹7.57 | ₹22,710.00 |
| 6,000+ | ₹7.12 | ₹42,720.00 |
5 × ₹14.63
₹73.15
excl. GST
₹86.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ374P6X
₹73.15 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Series
- 7SZ Series
- Number of Elements
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Setup Time
- 1.5ns
- Quiescent Current
- 1uA
- Hold Time
- 1.5ns
- Propagation Delay
- 4ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The NC7SZ374 is a single positive edge-triggered D-type CMOS Flip-Flop with 3-STATE output from Fairchild’s Ultra High Speed Series of TinyLogic in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. This single flip-flop will store the state of the D input that meets the setup and hold time requirements on the LOW-to-HIGH Clock (CP) transition. The output tolerates voltages above VCC in the 3-STATE condition.
Key features
- Space saving SC70 6-lead package
- Ultra small MicroPak leadless package
- Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC
- High Output Drive; ±24 mA at 3V VCC
- Broad VCC Operating Range; 1.65V to 5.5V
- Matches the performance of LCX when operated at 3.3V VCC
- Power down high impedance inputs/output
- Overvoltage tolerant inputs facilitate 5V - 3V translation
- Patented noise/EMI reduction circuitry implemented
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G374DCKR#C2859827TI · SC-70-6 | TI | SC-70-6 | 5,620 | ₹23.66 · 5,620 in stock | View |
| NC7SZ374P6#C3827296onsemi · SC-88(SC-70-6) | onsemi | SC-88(SC-70-6) | On request | Price on request | Quote | |
