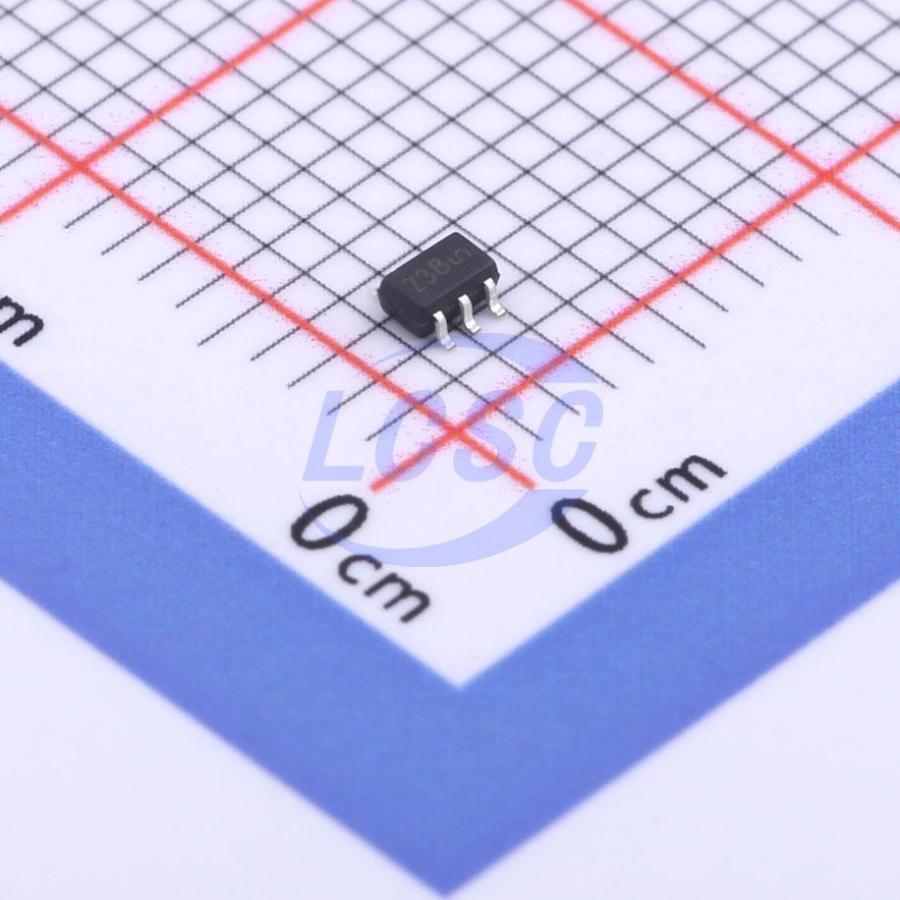

NC7SZ38P5X
1.65V~5.5V 2.4ns@5V,50pF 2uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
TinyLogic UHS 2-Input NAND Gate, Open Drain Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ38P5X
- Store part #
- C891958
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C891958
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.64 | ₹58.20 |
| 50+ | ₹9.29 | ₹464.50 |
| 150+ | ₹8.11 | ₹1,216.50 |
| 500+ | ₹7.22 | ₹3,610.00 |
| 3,000+ | ₹6.52 | ₹19,560.00 |
| 6,000+ | ₹6.17 | ₹37,020.00 |
5 × ₹11.64
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ38P5X
₹58.20 for 5 + GST
Specifications
- output type
- Open-drain
- Logic Family
- 7SZ Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;300mV;400mV;550mV
- Propagation Delay
- 2.4ns@5V,50pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC Open Drain Output Stage for OR Tied Applications High Output Sink Drive: 24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX Operated at 3.3V VCC Power Down High-Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SOT23 and SC70 Packages The NC7SZ38 is a single 2-Input NAND gate with open drain output stage from Ultra-High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when Vcc is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage. The open drain output stage tolerates voltages up to 6V independent of Vcc when in the high impedance state.
Key features
- Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC
- Open Drain Output Stage for OR Tied Applications
- High Output Sink Drive: 24mA at 3V VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Matches Performance of LCX Operated at 3.3V VCC
- Power Down High-Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak™ Packages
- Space-Saving SOT23 and SC70 Packages
