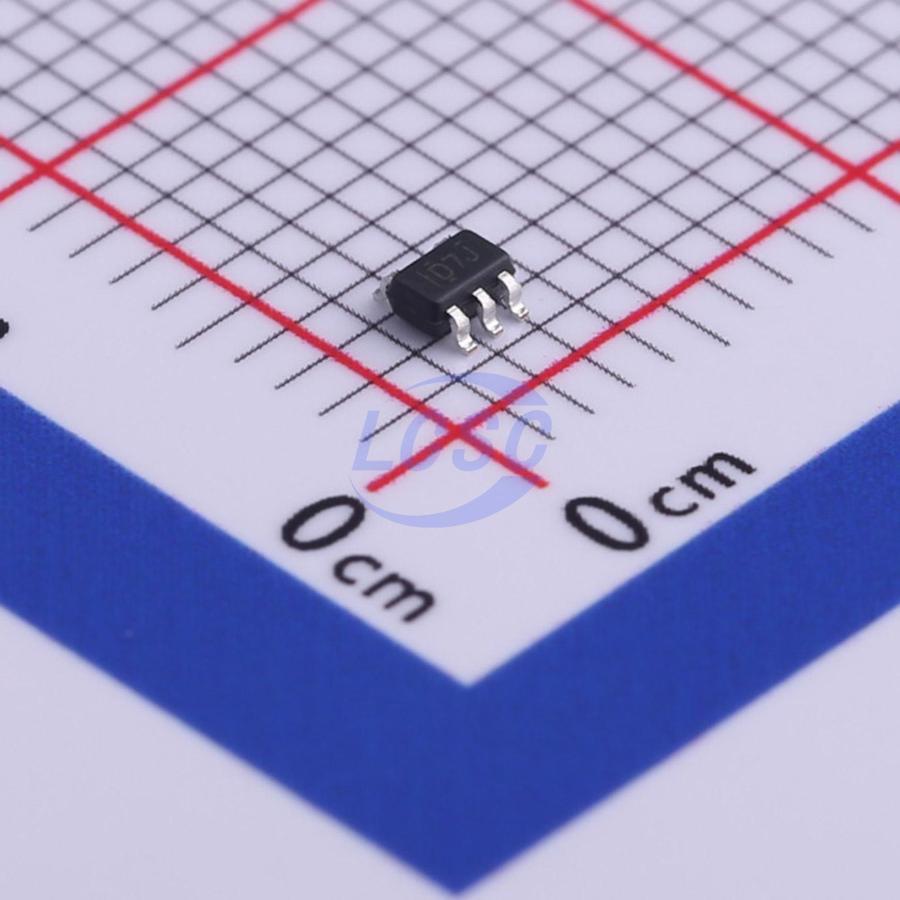

SN74LVC1G38DCKR

The SN74LVC1G38 device is designed for 1.65-V to 5.5–V CC operation. This device is a single two-input NAND buffer gate with open-drain output. It performs the Boolean function Y = A × B or Y = A + B in positive logic. This device is fully specified for partial-power-down applications using I 0ff. The I 0ff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

• AV Receivers
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Desktop or Notebook PCs
• Digital Radio or Internet Radio Players
• Digital Video Cameras (DVC)
• Embedded PCs
• GPS: Personal Navigation Devices
• Mobile Internet Devices
• Network Projector Front-Ends
• Portable Media Players
• Pro Audio Mixers
• Smoke Detectors
• Solid State Drive (SSD): Enterprise
• High-Definition (HDTV) Tablets: Enterprise
• Audio Docks: Portable
• DLP Front Projection Systems
• DVR and DVS
• Digital Picture Frame (DPF)
• Digital Still Cameras

Key features

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
• Available in the Texas Instruments NanoStar and NanoFree Packages
• Supports 5-V V CC Operation
• Inputs Accept Voltages to 5.5 V
• Supports Down Translation to V CC
• Maximum t pd of 4.5 ns at 3.3 V
• Low Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• I off Supports Partial-Power-Down Mode and Back Drive Protection
