TECH PUBLICDatasheet (PDF)

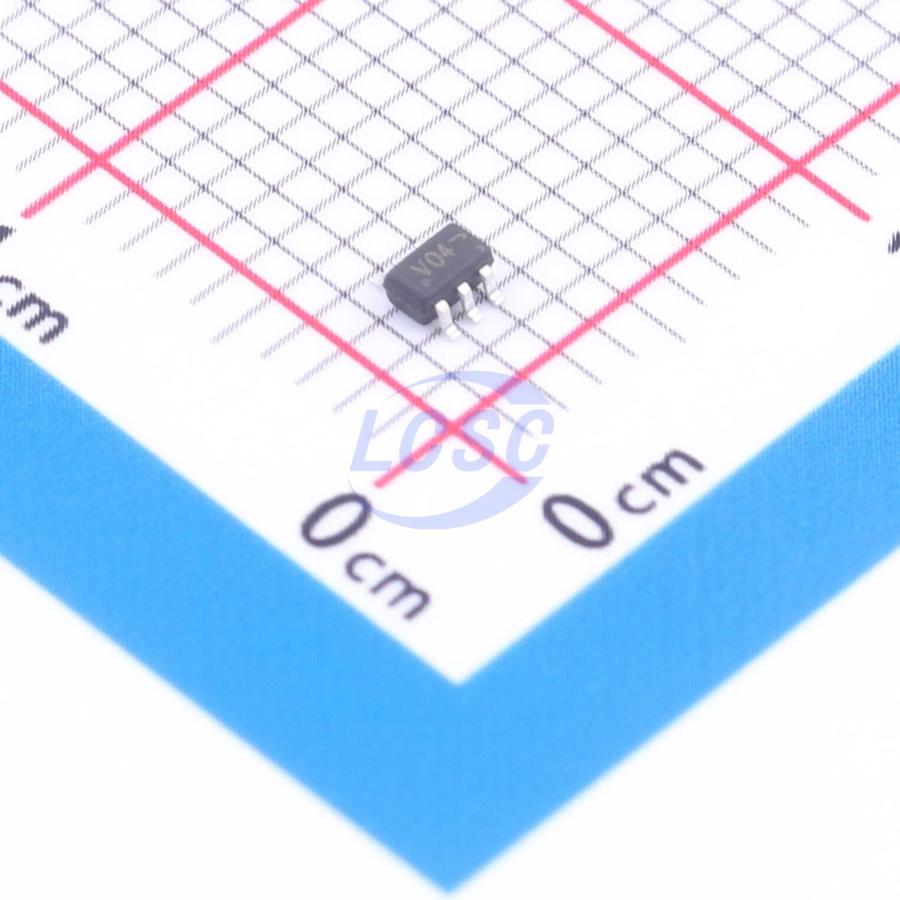

NC7WV04P6X-TP
900mV~3.6V 4ns@3.3V,30pF 500nA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7WV04P6X-TP
- Store part #
- C54194957
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C54194957
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.20 | ₹66.00 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.01 | ₹1,351.50 |
| 500+ | ₹7.96 | ₹3,980.00 |
| 3,000+ | ₹7.12 | ₹21,360.00 |
| 6,000+ | ₹6.71 | ₹40,260.00 |
5 × ₹13.20
₹66.00
excl. GST
₹77.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WV04P6X-TP
₹66.00 for 5 + GST
Specifications
- Voltage - Supply
- 900mV~3.6V
- Output Logic Level - Low
- 100mV;310mV;440mV
- Propagation Delay
- 4ns@3.3V,30pF
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
NC7WV04P6X - TP is a dual inverter gate providing the function Y = A. The device features a power-down protection circuit to prevent damage during power-down conditions.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theater
- Embedded PCs
- PDAs
- Telecom/server AC/DC power supplies: single controller: analog and digital
- SSDs: client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.9V ~ 3.6V
- Input accepts voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
