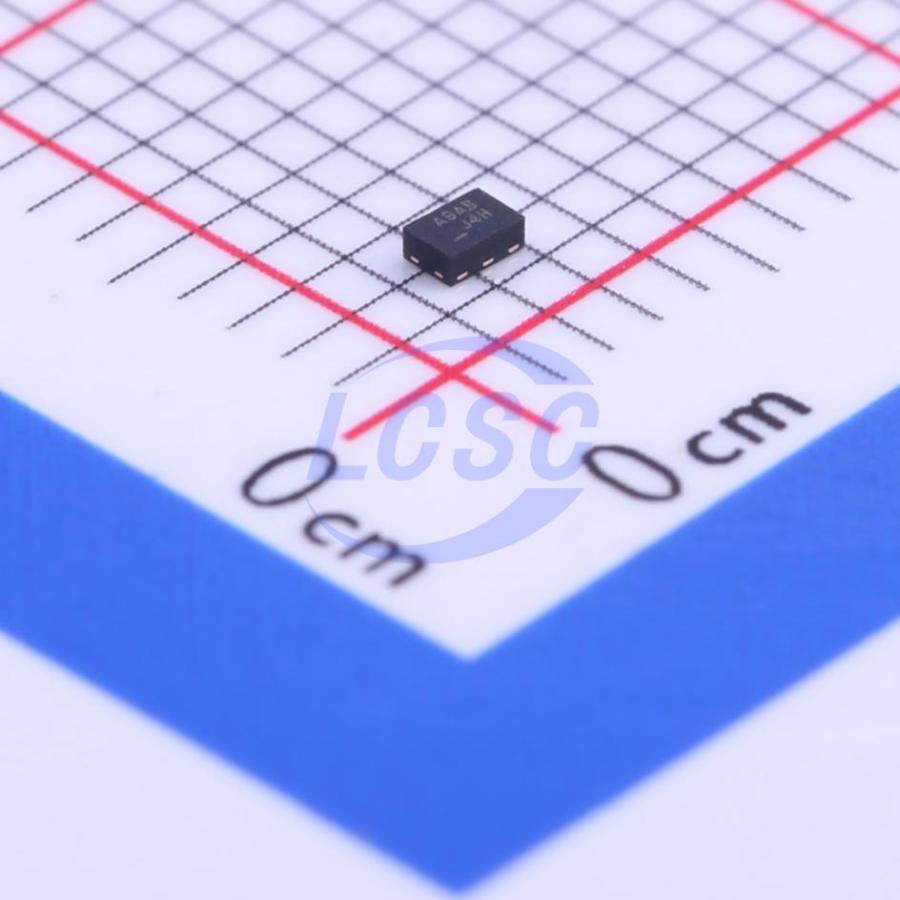

TinyLogic UHS Dual Inverter with Schmitt Trigger Inputs

Manufacturer: onsemi
Manufacturer part #: NC7WZ14L6X
Store part #: C118211
Package / case: UFDFN-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,165 in stock

#C118211

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.51	₹87.55
50+	₹13.68	₹684.00
150+	₹12.03	₹1,804.50
500+	₹9.99	₹4,995.00
2,500+	₹9.08	₹22,700.00
5,000+	₹8.53	₹42,650.00

Quantity (min 5, multiples of 5)

5 × ₹17.51

₹87.55

excl. GST

₹103.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

NC7WZ14L6X

₹87.55 for 5 + GST

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 7WZ
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;240mV;300mV;400mV;550mV
Propagation Delay: 4.9ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - Low: 200mV~1.2V
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.4V~3.6V
Output Logic Level - High: 4.4V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.024 g

Overview

Ultra-High Speed: tPD 3.2ns (Typical) into 50pF at 5V VCC  High Output Drive: ±24mA at 3V VCC  Broad VCC Operating Range: 1.65V to 5.5V  Matches Performance of LCX when Operated at 3.3V VCC  Power Down High Impedance Inputs/Outputs  Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation  Proprietary Noise/EMI Reduction Circuitry  Ultra-Small MicroPak™ Packages  Space-Saving SC70 Package The NC7WZ14 is a dual inverter with Schmitt trigger input from Ultra-High Speed (UHS) Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high-impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. Schmitt trigger inputs achieve typically 1V hysteresis between the positive-and negative-going input threshold voltage at 5V.
