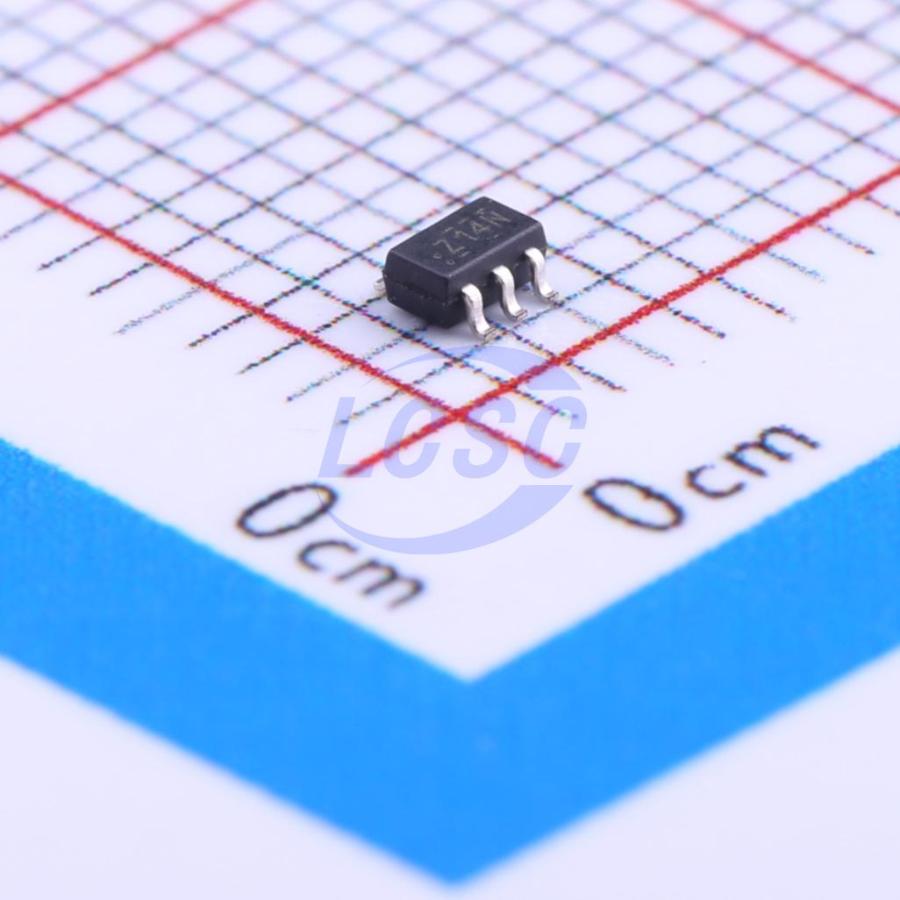

NC7WZ14P6X

Schmitt trigger 1.65V~5.5V 4.9ns@5V,50pF 1uA 2 SC-70-6(SOT-363) Gates and Inverters RoHS

SC-70-6(SOT-363)ROHS3 CompliantActive

TinyLogic UHS Dual Inverter with Schmitt Trigger Inputs

Manufacturer: onsemi
Manufacturer part #: NC7WZ14P6X
Store part #: C50793
Package / case: SC-70-6(SOT-363)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,760 in stock

#C50793

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹7.18	₹71.80
100+	₹5.62	₹562.00
300+	₹4.84	₹1,452.00
3,000+	₹4.17	₹12,510.00
6,000+	₹3.69	₹22,140.00
9,000+	₹3.45	₹31,050.00

Quantity (min 10, multiples of 10)

10 × ₹7.18

₹71.80

excl. GST

₹84.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7WZ14P6X

₹71.80 for 10 + GST

Specifications

Logic Family: 7WZ
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.9ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+85℃
Input Logic Level - Low: 200mV~1.2V
Input Logic Level - High: 1.4V~3.6V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

Ultra-High Speed: tPD 3.2ns (Typical) into 50pF at 5V VCC  High Output Drive: ±24mA at 3V VCC  Broad VCC Operating Range: 1.65V to 5.5V  Matches Performance of LCX when Operated at 3.3V VCC  Power Down High Impedance Inputs/Outputs  Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation  Proprietary Noise/EMI Reduction Circuitry  Ultra-Small MicroPak™ Packages  Space-Saving SC70 Package The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high-impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. Schmitt trigger inputs achieve typically 1V hysteresis between the positive-and negative-going input threshold voltage at 5V.
