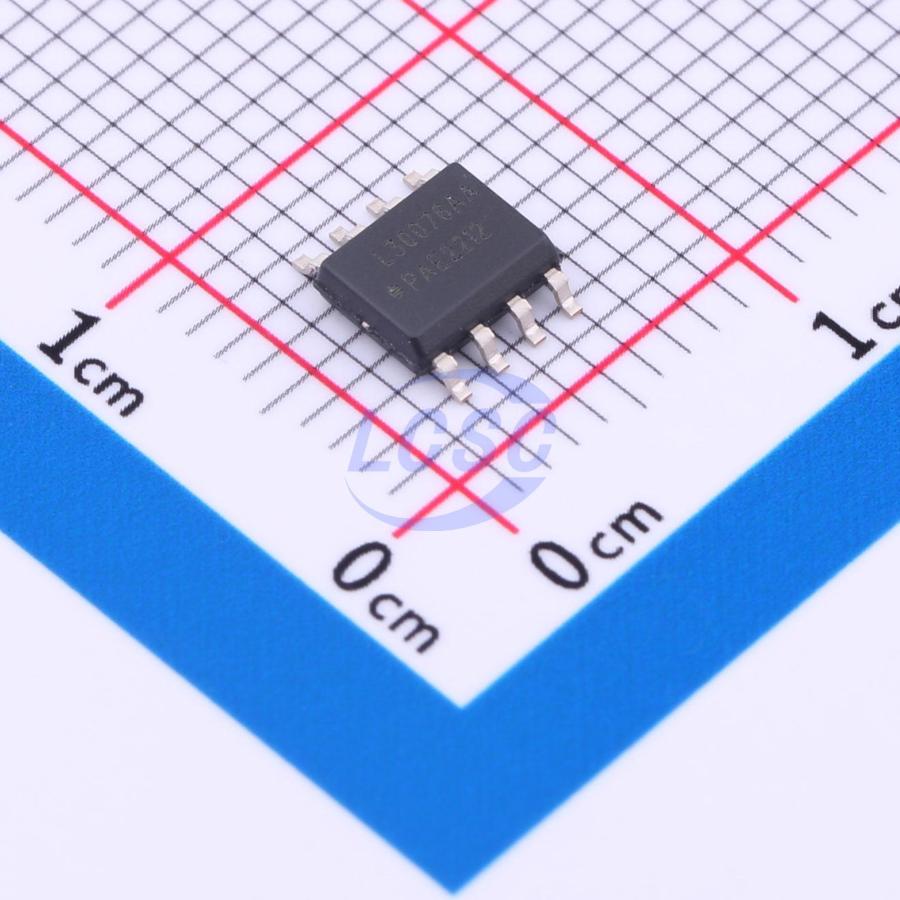

NCL30076AADR2G
1 DC-DC 30V SOIC-8 LED Drivers RoHS
Quasi-Resonant Buck Controller for Precise Current Regulation and Wide Analog Dimming
- Manufacturer
- onsemi
- Manufacturer part #
- NCL30076AADR2G
- Store part #
- C2902101
- Package / case
- SOIC-8
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C2902101
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.54 | ₹101.54 |
| 10+ | ₹80.93 | ₹809.30 |
| 30+ | ₹70.73 | ₹2,121.90 |
| 100+ | ₹60.54 | ₹6,054.00 |
| 500+ | ₹54.24 | ₹27,120.00 |
| 1,000+ | ₹51.21 | ₹51,210.00 |
1 × ₹101.54
₹101.54
excl. GST
₹119.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCL30076AADR2G
₹101.54 for 1 + GST
Specifications
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃
- Features
- Over Voltage Protection;Built-in soft-start;Short Circuit Protection;Over-Temperature Protection (OTP)
- Topology
- Buck
- Constant Current Accuracy
- 2%
- Voltage - Input(DC)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The NCL30076 is a DC−DC buck controller for wide dimming range down to 1% by analog dimming control to relieve audible noise and flicker in PWM dimming. Proprietary LED current calculation technique driven by zero input offset amplifiers performs precise constant current in the whole analog dimming range. Multi−mode operation provides high efficiency with minimized switching loss by QR at heavy load and deep analog dimming by DCM at light load. PWM dimming control is also provided in case that constant LED color temperature is required. The NCL30076 has several protections such as LED short protection, over current protection, thermal shutdown and VDD over voltage protection for robust system reliability.
Applications
- LED Lighting System
Key features
- Wide Analog Dimming Range: 1~100%
- Low CC Tolerance: ±2% at 100% Load & ±20% at 1% Load
- Low System BOM
- LED Off Mode at Standby
- Low Standby Current
- PWM Dimming Available
- Gate Sourcing and Sinking Current of 0.5 A/0.8 A
- Robust Protection Features:
- LED Short Protection
- Over Current Protection
- Thermal Shutdown
- VDD Over Voltage Protection
