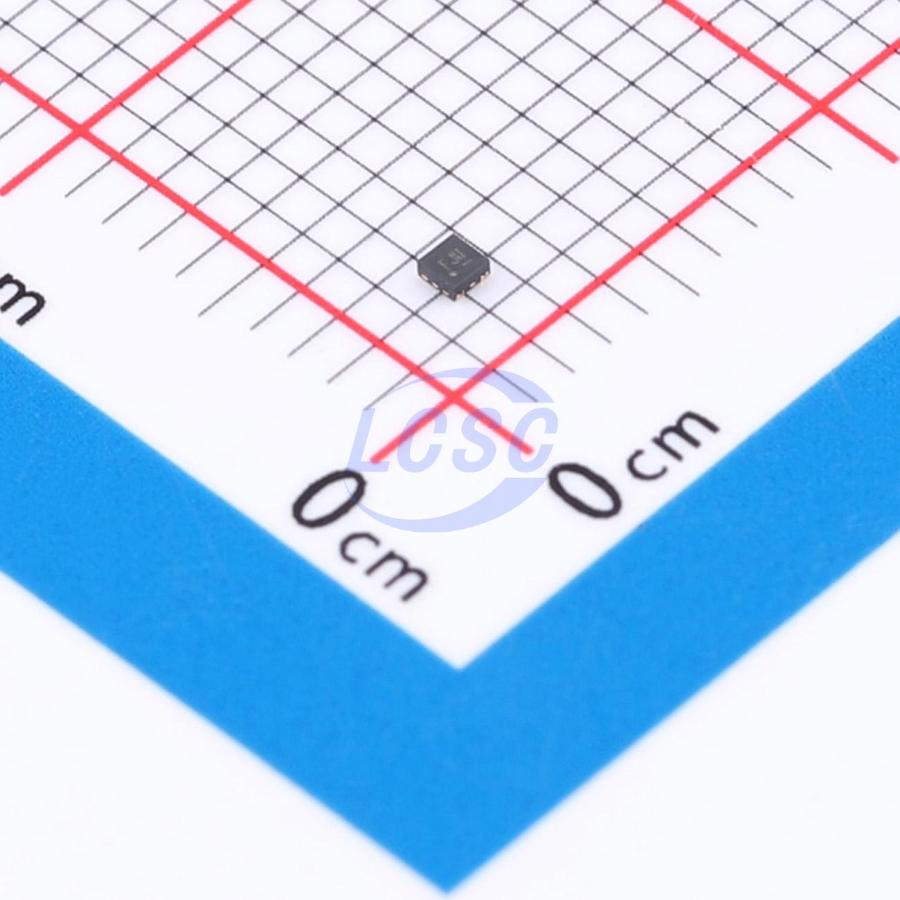

onsemi

NCP110AMX080TBG

800mV Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

XDFN-4-EP(1x1)ROHS3 CompliantActive

Linear Voltage Regulators - Low Voltage Input, Low Noise, High PSRR, 200 mA

Manufacturer: onsemi
Manufacturer part #: NCP110AMX080TBG
Store part #: C892007
Package / case: XDFN-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

160 in stock

#C892007

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹65.09	₹65.09
10+	₹51.60	₹516.00
30+	₹45.93	₹1,377.90
100+	₹38.75	₹3,875.00
500+	₹35.50	₹17,750.00
1,000+	₹33.52	₹33,520.00

Quantity (min 1)

1 × ₹65.09

₹65.09

excl. GST

₹76.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP110AMX080TBG

₹65.09 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 800mV
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 20uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 200mA
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: ECL99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.038 g

Overview

The NCP110 is a linear regulator capable of supplying 200 mA output current from 1.1 V input voltage. The device provides wide output range from 0.6 V up to 4.0 V, very low noise and high PSRR. Due to low quiescent current the NCP110 is suitable for battery powered devices such as smartphones and tablets. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in ultra−small 0.35P, 0.64 mm x 0.64 mm Chip Scale Package (CSP) and XDFN4 0.65P, 1 mm x 1 mm.

Applications

Battery−powered Equipment
Smartphone, Tablets
Digital Cameras
Smoke Detectors
Portable Medical Equipment
RF, PLL, VCO and Clock Power Supplies
Battery Powered Wireless IoT Modules

Key features

Operating Input Voltage Range: 1.1 V to 5.5 V
Available in Fixed Voltage Option: 0.6 V to 4.0 V
±2% Accuracy Over Load/Temperature
Ultra Low Quiescent Current Typ. 20 μA
Standby Current: Typ. 0.1 μA
Very Low Dropout: 70 mV for 1.05 V @ 100 mA
High PSRR: Typ. 95 dB at 20 mA, f = 1 kHz
Ultra Low Noise: 8.8 VRMS
Stable with a 1 μF Small Case Size Ceramic Capacitors
Available in -WLCSP4 0.64mm x 0.64mm x 0.33mm - Case 567V S - XDFN4 1mm x 1mm x 0.4mm - Case 711AJ
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS7A0508PDQNR#C2876056TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	2,545	₹35.71 · 2,545 in stock	View
LTP753-08NXF4#C22450503Linearin · UDFN-4L(1x1)	Linearin	UDFN-4L(1x1)	120	₹17.41 · 120 in stock	View
SGM2036S-0.8XXDH4G/TR#C5152981SGMICRO · XTDFN-4L(1x1)	SGMICRO	XTDFN-4L(1x1)	On request	₹27.92 · 0 in stock	View
SGM2036-0.8YUDH4G/TR#C700346SGMICRO · UTDFN-4L(1x1)	SGMICRO	UTDFN-4L(1x1)	On request	₹27.99 · 0 in stock	View
SGM2047A-0.8XXDH4G/TR#C5152647SGMICRO · XTDFN-1x1-4L	SGMICRO	XTDFN-1x1-4L	On request	₹34.89 · 0 in stock	View
