onsemiDatasheet (PDF)

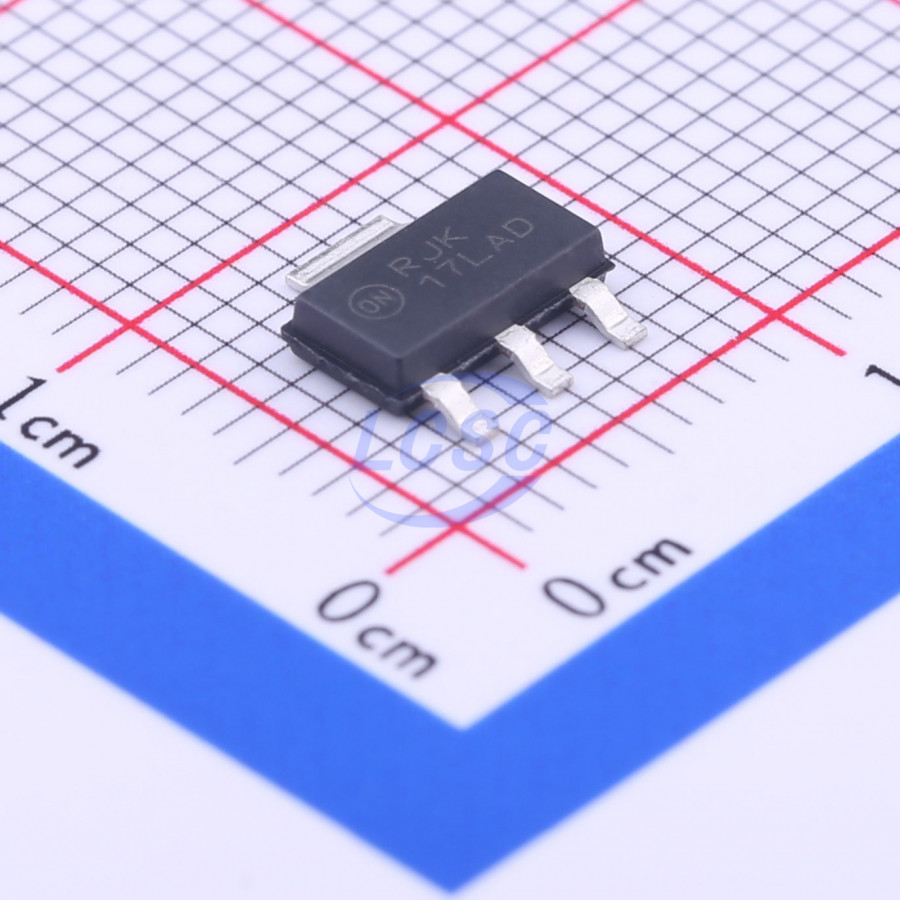

NCP1117LPSTADT3G
1.25V~16.6V Positive Adjustable SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- NCP1117LPSTADT3G
- Store part #
- C233236
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,310 in stock
#C233236
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.98 | ₹58.98 |
| 10+ | ₹46.83 | ₹468.30 |
| 30+ | ₹41.63 | ₹1,248.90 |
| 100+ | ₹35.13 | ₹3,513.00 |
| 500+ | ₹32.10 | ₹16,050.00 |
| 1,000+ | ₹27.54 | ₹27,540.00 |
1 × ₹58.98
₹58.98
excl. GST
₹69.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP1117LPSTADT3G
₹58.98 for 1 + GST
Specifications
- Output Voltage
- 1.25V~16.6V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1.1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
The NCP1117LP is a low dropout positive fixed or adjustable mode regulator with 1 A output capability. This LDO is guaranteed to have a significant reduction in dropout voltage along with enhanced output voltage accuracy and temperature stability when compared to older industry standard three−terminal adjustable regulators. These devices contain output current limiting, safe operating area compensation and thermal shutdown protection making them designer friendly for powering numerous consumer and industrial products.
Applications
- TV and Monitors
- Set Top Boxes and Entertainment Devices
- Switching Power Supply Post Regulation
- Game Consoles and Consumer Applications
- Hard Drive Controllers
Key features
- Output Current in Excess of 1.0 A
- 1.4 V Maximum Dropout Voltage at 1 A
- Quiescent Current over 10 times Lower than Traditional 1117
- Fixed Output Voltages of 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V
- Adjustable Output Voltage Option
- No Minimum Load Requirement for Fixed Voltage Output Devices
- Good Noise Rejection
- Current Limit and Thermal Shutdown Protection
- Operation up to 18 V Input
- These are Pb−Free Devices
