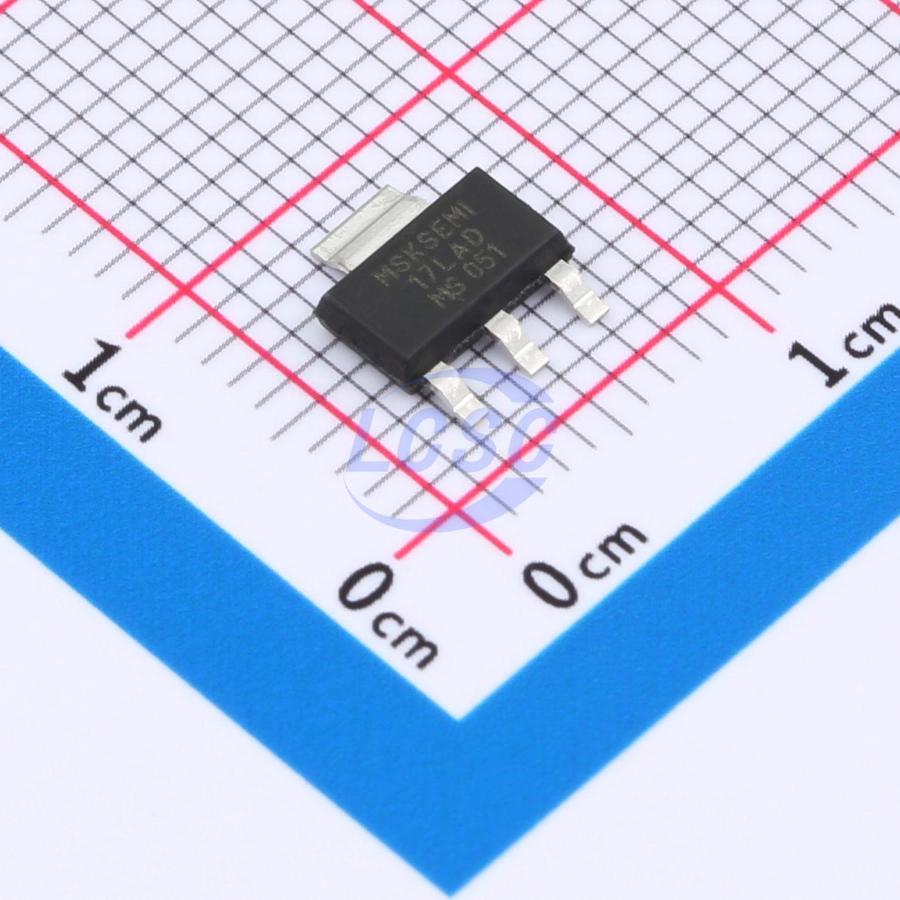

NCP1117LPSTADT3G-MS
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- NCP1117LPSTADT3G-MS
- Store part #
- C22462598
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C22462598
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.18 | ₹95.90 |
| 50+ | ₹15.07 | ₹753.50 |
| 150+ | ₹13.30 | ₹1,995.00 |
| 500+ | ₹11.10 | ₹5,550.00 |
| 2,500+ | ₹10.12 | ₹25,300.00 |
| 5,000+ | ₹9.53 | ₹47,650.00 |
5 × ₹19.18
₹95.90
excl. GST
₹113.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP1117LPSTADT3G-MS
₹95.90 for 5 + GST
Specifications
- Output Voltage
- 1.225V~5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
NCP1117LPSTXXT3G-MS is a low dropout linear regulator.
Applications
- Computer motherboards, graphics cards
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL equipment
- Post-stage voltage regulation in switching power supplies
Key features
- Three-terminal adjustable and fixed voltage output versions (fixed voltages include 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, etc.; other voltage specifications available upon customer request)
- Maximum output current: 1A
- Output voltage accuracy: ±2%
- Stable operating voltage range: up to 12V
- Line regulation: 0.2%
- Load regulation: 0.4%
- Ambient temperature: TA range -20°C~125°C
