onsemi

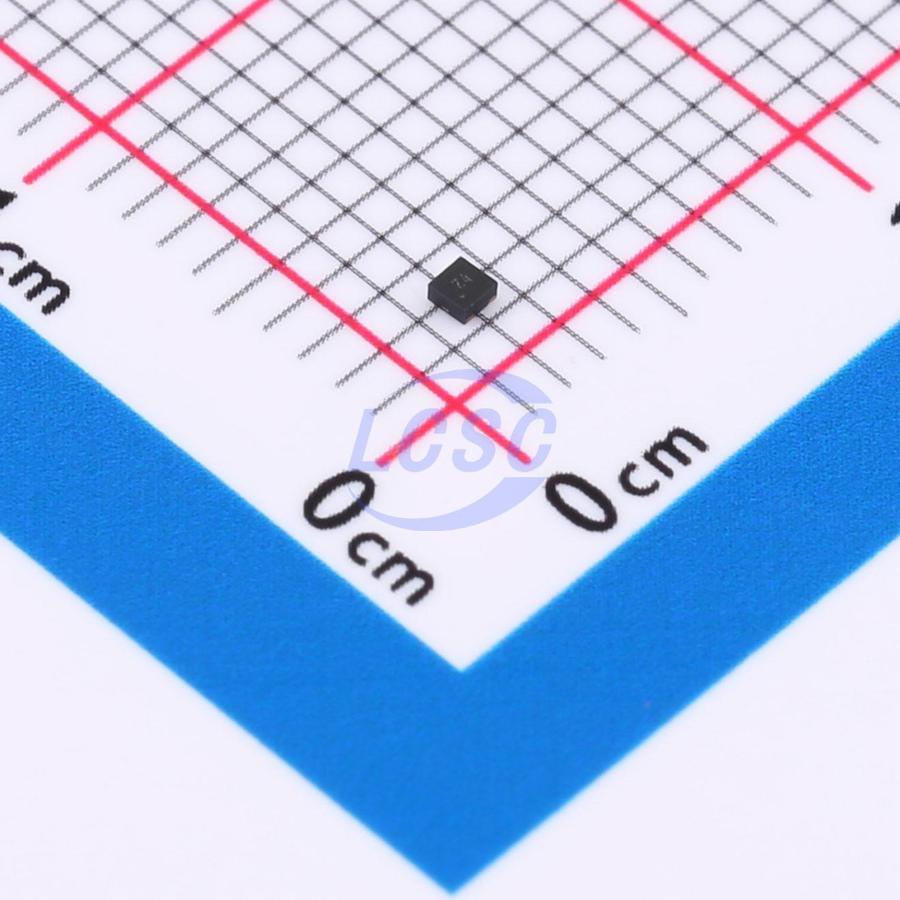

NCP114AMX160TCG

1.6V Positive Fixed UDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

UDFN-4-EP(1x1)ROHS3 CompliantActive

300 mA CMOS Low Dropout (LDO) Regulator

Manufacturer: onsemi
Manufacturer part #: NCP114AMX160TCG
Store part #: C603487
Package / case: UDFN-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,790 in stock

#C603487

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹12.07	₹60.35
50+	₹9.66	₹483.00
150+	₹8.45	₹1,267.50
500+	₹7.54	₹3,770.00
3,000+	₹6.83	₹20,490.00
6,000+	₹6.46	₹38,760.00

Quantity (min 5, multiples of 5)

5 × ₹12.07

₹60.35

excl. GST

₹71.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP114AMX160TCG

₹60.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.6V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.021 g

Overview

The NCP114 is 300 mA LDO that provides the engineer with a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCP114 employs the dynamic quiescent current adjustment for very low Iₒ consumption at no−load.

Applications

PDAs, Mobile phones, GPS, Smartphones
Wireless Handsets, Wireless LAN
Portable Medical Equipment
Other Battery Powered Applications

Key features

Operating Input Voltage Range: 1.7 V to 5.5 V
Available in Fixed Voltage Options: 0.75 V to 3.6 V Contact Factory for Other Voltage Options
Very Low Quiescent Current of Typ. 50 μA
Standby Current Consumption: Typ. 0.1 μA
Low Dropout: 135 mV Typical at 300 mA
±1% Accuracy at Room Temperature
High Power Supply Ripple Rejection: 75 dB at 1 kHz
Thermal Shutdown and Current Limit Protections
Stable with a 1 μF Ceramic Output Capacitor
Available in UDFN and TSOP Packages
These are Pb−Free Devices
