onsemiDatasheet (PDF)

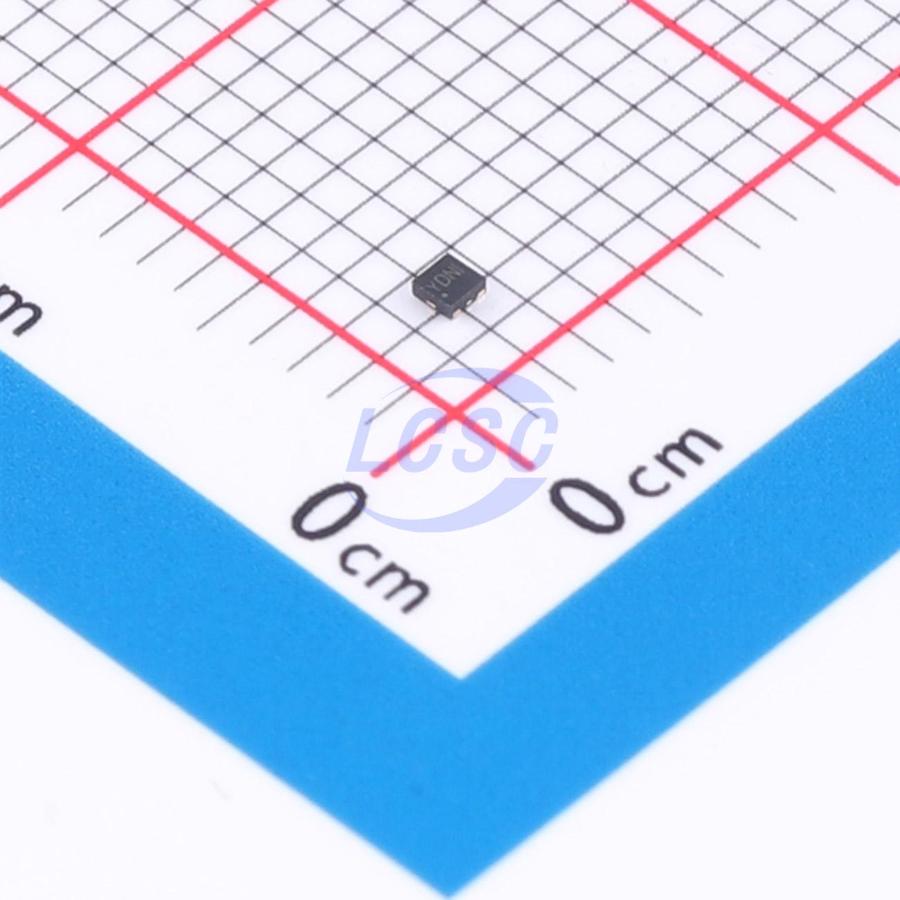

NCP151AAMX330180TCG
Positive Fixed XDFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4(1x1)ROHS3 CompliantActive
IC REG LINEAR 3.3V 300mA XDFN-4(1x1)
- Manufacturer
- onsemi
- Manufacturer part #
- NCP151AAMX330180TCG
- Store part #
- C603593
- Package / case
- XDFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C603593
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.65 | ₹118.65 |
| 10+ | ₹95.84 | ₹958.40 |
| 30+ | ₹84.54 | ₹2,536.20 |
| 100+ | ₹73.24 | ₹7,324.00 |
| 500+ | ₹66.49 | ₹33,245.00 |
| 1,000+ | ₹63.03 | ₹63,030.00 |
1 × ₹118.65
₹118.65
excl. GST
₹140.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP151AAMX330180TCG
₹118.65 for 1 + GST
Specifications
- Output Voltage
- 3.3V;1.8V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The NCP151 is a dual linear regulator capable of supplying 300 mA output current from 1.7 V input voltage. The device provides wide output voltage range from 0.8 V up to 3.6 V. In order to optimize performance for battery operated portable applications, the NCP151 employs the dynamic quiescent current adjustment for very low Iₒ consumption at no−load.
Applications
- PDAs, Mobile Phones, GPS, Smartphones
- Wireless Handsets, Wireless LAN Devices
- Bitcoin Miners
- Portable Medical Equipment
- Other Battery Powered Equipment
Key features
- Operating Input Voltage Range 1.7 V to 5.5 V
- Available in Fixed Voltage Option: 0.8 V to 3.6 V
- ±2% Accuracy Over Load/Temperature
- Low Quiescent Current Typ. 100 μA
- Low Dropout: 210 mV for 300 mA @ 2.8 V
- Low Dropout: 370 mV for 300 mA @ 1.8 V
- High PSRR: Typ. 70 dB at 1 kHz (OUT1, OUT2)
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in XDFN4, 1 mm×1 mm×0.4 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
