onsemiDatasheet (PDF)

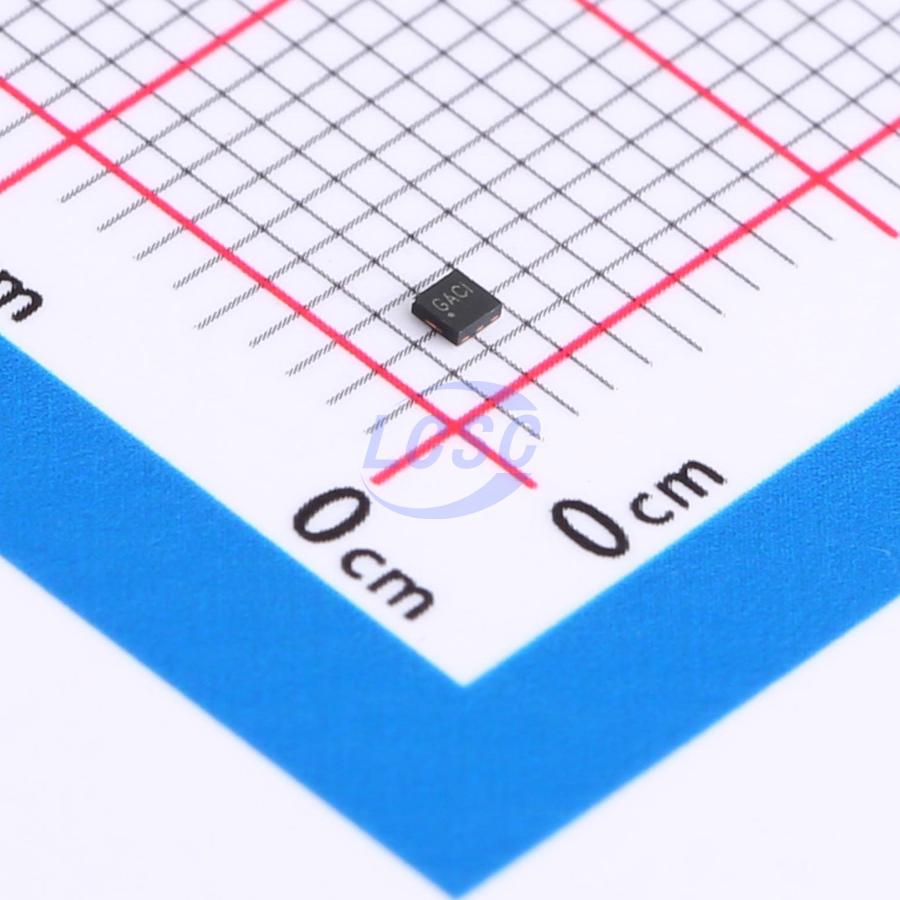

NCP153MX330180TCG
Positive Fixed XDFN-6(1.2x1.2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-6(1.2x1.2)ROHS3 CompliantActive
Dual LDO Regulator, Low IQ
- Manufacturer
- onsemi
- Manufacturer part #
- NCP153MX330180TCG
- Store part #
- C895664
- Package / case
- XDFN-6(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C895664
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.44 | ₹102.20 |
| 50+ | ₹20.02 | ₹1,001.00 |
| 150+ | ₹19.74 | ₹2,961.00 |
| 500+ | ₹19.45 | ₹9,725.00 |
5 × ₹20.44
₹102.20
excl. GST
₹120.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NCP153MX330180TCG
₹102.20 for 5 + GST
Specifications
- Output Voltage
- 3.3V;1.8V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.25V
- Output Current
- 130mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The NCP153 is 130 mA, Dual Output Linear Voltage Regulator that provides a very stable and accurate voltage with very low noise and high Power Supply Rejection Ratio (PSRR) suitable for RF applications. In order to optimize performance for battery operated portable applications, the NCP153 employs the Adaptive Ground Current Feature for low ground current consumption during light−load conditions. Device also incorporates foldback current protection to reduce short circuit current and protect powered devices.
Applications
- Smartphones, Tablets, Wireless Handsets
- Wireless LAN, Bluetooth, ZigBee Interfaces
- Other Battery Powered Applications
Key features
- Operating Input Voltage Range: 1.9 V to 5.25 V
- Two Independent Output Voltages: (for details please refer to the Ordering Information section)
- Very Low Dropout: 130 mV Typical at 130 mA
- Low IQ of typ. 50 μA per Channel
- High PSRR: 75 dB at 1 kHz
- Two Independent Enable Pins
- Over Current Protection: 165 mA Typical
- Foldback Short Circuit Protection
- Thermal Shutdown
- Stable with a 0.22 μF Ceramic Output Capacitor
- Available in XDFN6 1.2 x 1.2 mm Package
- Active Output Discharge for Fast Output Turn−Off
- These are Pb−Free Devices
