onsemi

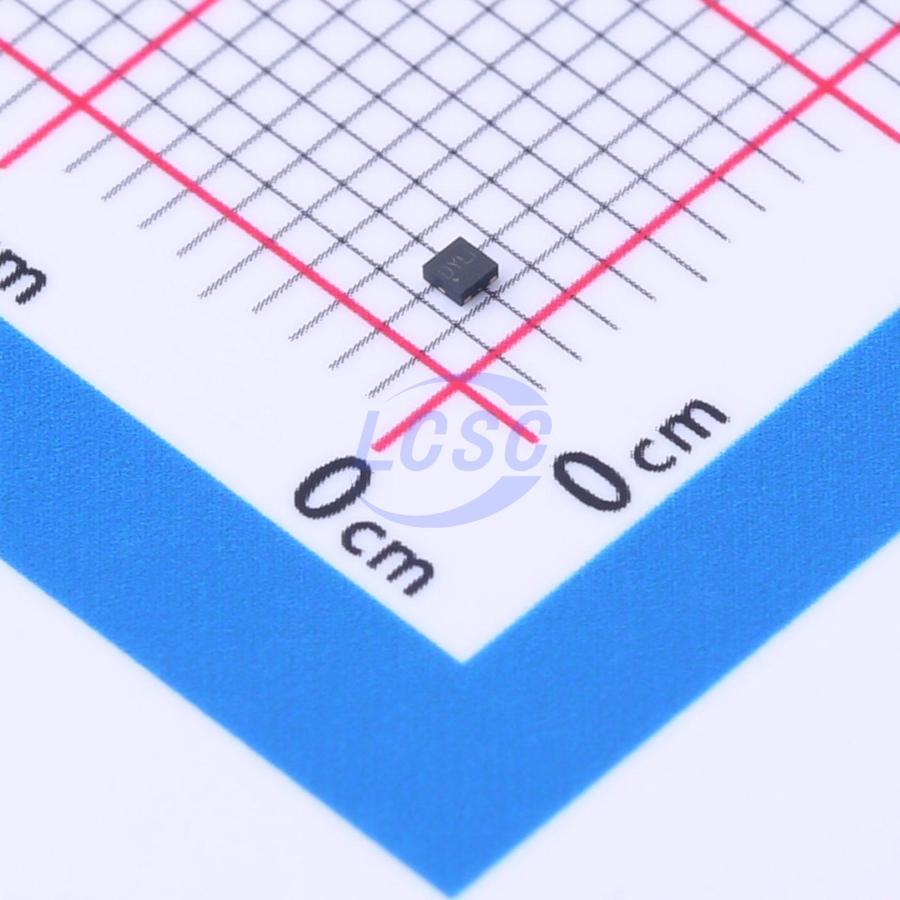

NCP160AMX320TBG

3.2V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

XDFN-4-EP(1x1)ROHS3 CompliantActive

Ultra-Low Noise and High PSRR LDO Regulator for RF and Analog Circuits, 250 mA

Manufacturer: onsemi
Manufacturer part #: NCP160AMX320TBG
Store part #: C892165
Package / case: XDFN-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

57 in stock

#C892165

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹66.12	₹66.12
10+	₹52.40	₹524.00
30+	₹46.68	₹1,400.40
100+	₹39.31	₹3,931.00
500+	₹36.04	₹18,020.00
1,000+	₹34.19	₹34,190.00

Quantity (min 1)

1 × ₹66.12

₹66.12

excl. GST

₹78.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP160AMX320TBG

₹66.12 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 18uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The NCP160 is a linear regulator capable of supplying 250 mA output current. Designed to meet the requirements of RF and analog circuits, the NCP160 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, 0.65 mm x 0.65 mm Chip Scale Package (CSP) and XDFN−4 0.65P, 1 mm x 1 mm.

Applications

Battery−powered Equipment
Wireless LAN Devices
Smartphones, Tablets
Cameras, DVRs, STB and Camcorders

Key features

Operating Input Voltage Range: 1.9 V to 5.5 V
Available in Fixed Voltage Option: 1.8 V to 5.14 V
±2% Accuracy Over Load/Temperature
Ultra Low Quiescent Current Typ. 18 μA
Standby Current: Typ. 0.1 μA
Very Low Dropout: 80 mV at 250 mA
Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
Ultra Low Noise: 10 μVRMS
Stable with a 1 μF Small Case Size Ceramic Capacitors
Available in - WLCSP4 0.65 mm x 0.65 mm x 0.4 mm - WLCSP4 0.65 mm x 0.65 mm x 0.33 mm - XDFN4 1 mm x 1 mm x 0.4 mm
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LDLN025PU32R#C5268031ST · DFN-4(1x1)	ST	DFN-4(1x1)	616	₹72.80 · 616 in stock	View
LP5907SNX-3.2/NOPB#C2870606TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	6,085	₹31.30 · 6,085 in stock	View
NCP161AMX320TBG#C892179onsemi · XDFN-4-EP(1x1)	onsemi	XDFN-4-EP(1x1)	On request	₹19.75 · 0 in stock	View
AP7353D-32FS4-7#C6125669DIODES · X2-DFN1010-4	DIODES	X2-DFN1010-4	On request	₹36.63 · 0 in stock	View
AP7353-32FS4-7#C7214715DIODES · X2-DFN1010-4	DIODES	X2-DFN1010-4	On request	₹36.63 · 0 in stock	View
