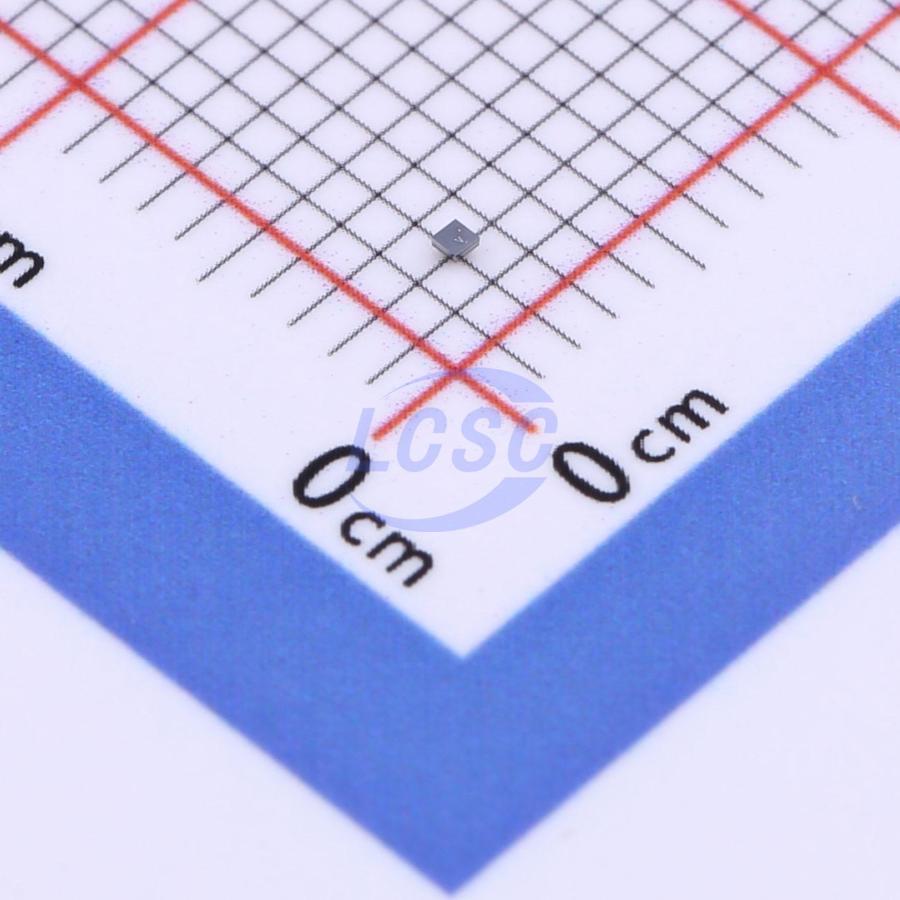

NCP163AFCS270T2G

The NCP163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCP163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excelent load/line transients. The NCP163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, WLCSP Packages, XDFN4 0.65P and industry standard SOT23−5L.

Applications

• Battery−powered Equipment
• Wireless LAN Devices
• Smartphones, Tablets
• Cameras, DVRs, STB and Camcorders

Key features

• Operating Input Voltage Range: 2.2 V to 5.5 V
• Available in Fixed Voltage Option: 1.2 V to 5.3 V
• ±2% Accuracy Over Load/Temperature
• Ultra Low Quiescent Current Typ. 12 μA
• Standby Current: Typ. 0.1 μA
• Very Low Dropout: 80 mV at 250 mA
• Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 6.5 VRMS
• Stable with a 1 μF Small Case Size Ceramic Capacitors
• Available in:
• WLCSP4: 0.64 mm x 0.64 mm x 0.33 mm
• VLCS P4: 0.64 mm x 0.64 mm x 0.4 mm
• X2FN4: 1 mm x 1 mm x 0.4 mm
• SOT23 - 5: 2.9 mm x 2.8 mm x 1.2 mm
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
