onsemiDatasheet (PDF)

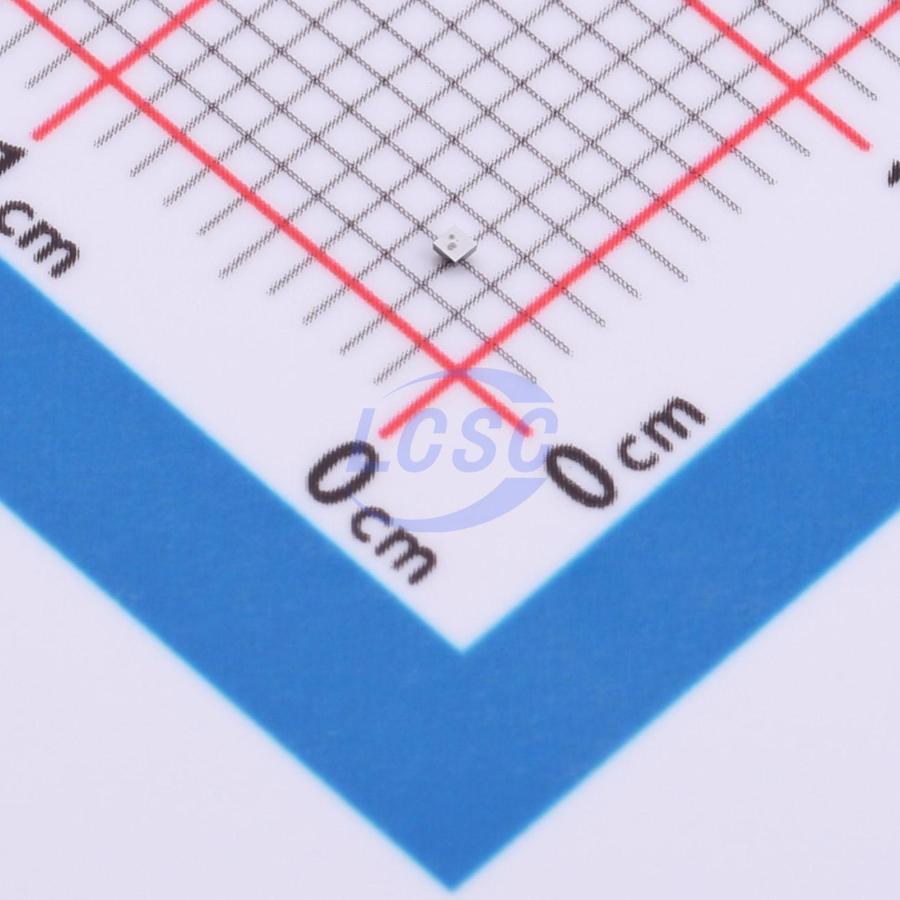

NCP163AFCS280T2G
2.8V Positive Fixed WLCSP-4(0.6x0.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WLCSP-4(0.6x0.6)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP163AFCS280T2G
- Store part #
- C603644
- Package / case
- WLCSP-4(0.6x0.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
837 in stock
#C603644
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.41 | ₹54.41 |
| 10+ | ₹42.32 | ₹423.20 |
| 30+ | ₹37.14 | ₹1,114.20 |
| 100+ | ₹30.67 | ₹3,067.00 |
| 500+ | ₹27.86 | ₹13,930.00 |
| 1,000+ | ₹26.13 | ₹26,130.00 |
1 × ₹54.41
₹54.41
excl. GST
₹64.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NCP163AFCS280T2G
₹54.41 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 12uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.013 g
Overview
The NCP163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCP163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excelent load/line transients. The NCP163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, WLCSP Packages, XDFN4 0.65P and industry standard SOT23−5L.
Applications
- Battery−powered Equipment
- Wireless LAN Devices
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Available in Fixed Voltage Option: 1.2 V to 5.3 V
- ±2% Accuracy Over Load/Temperature
- Ultra Low Quiescent Current Typ. 12 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 80 mV at 250 mA
- Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 6.5 VRMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in − WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm, WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm, XDFN4: 1 mm x 1 mm x 0.4 mm, SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP163AFCT280T2G#C513014onsemi · WLCSP-4(0.6x0.6) | onsemi | WLCSP-4(0.6x0.6) | 2,350 | ₹6.10 · 2,350 in stock | View |
| NCP160AFCS280T2G#C464039onsemi · WLCSP-4(0.6x0.6) | onsemi | WLCSP-4(0.6x0.6) | 100 | ₹23.46 · 100 in stock | View | |
| NCP160BFCS280T2G#C895688onsemi · WLCSP-4(0.6x0.6) | onsemi | WLCSP-4(0.6x0.6) | On request | ₹13.42 · 0 in stock | View | |
| NCP161AFCS280T2G#C603632onsemi · WLCSP-4(0.6x0.6) | onsemi | WLCSP-4(0.6x0.6) | On request | ₹14.47 · 0 in stock | View | |
| SGM2045-2.80XG/TR#C5152934SGMICRO · WLCSP-4B-A(0.6x0.6) | SGMICRO | WLCSP-4B-A(0.6x0.6) | On request | ₹34.89 · 0 in stock | View | |
