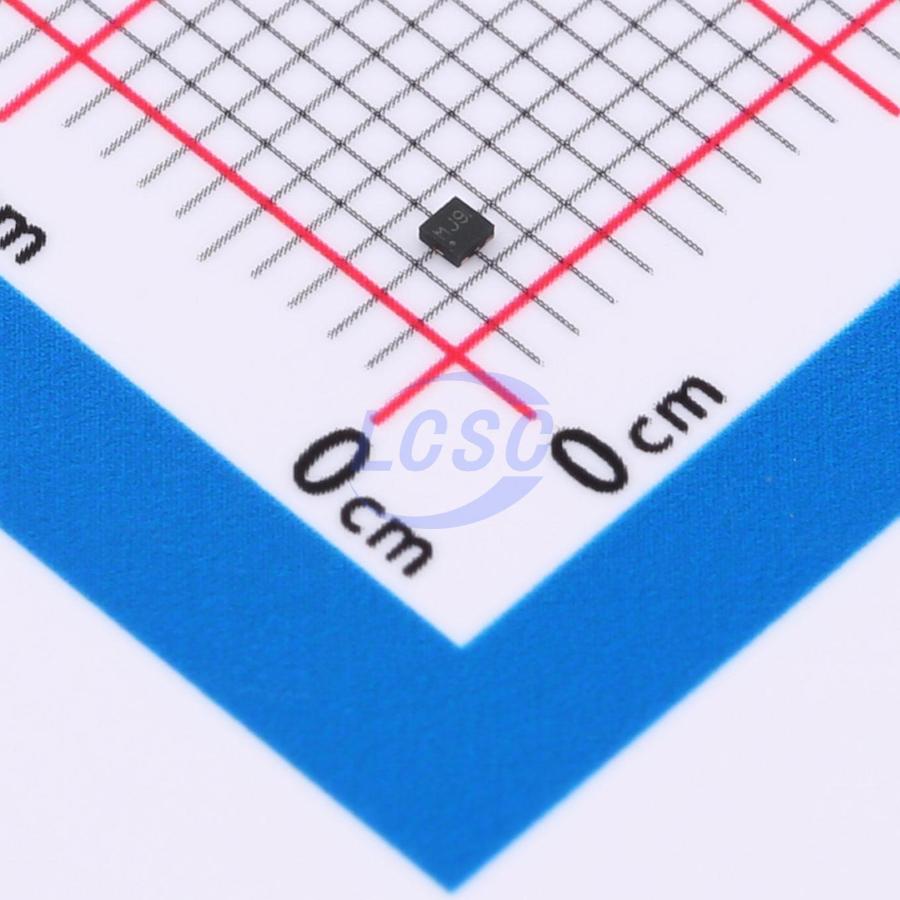

NCP163AMX300TBG
3V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4-EP(1x1)ROHS3 CompliantActive
LDO Regulator - Ultra-Low Noise, High PSRR, RF and Analog Circuits
- Manufacturer
- onsemi
- Manufacturer part #
- NCP163AMX300TBG
- Store part #
- C603653
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C603653
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.81 | ₹209.05 |
| 50+ | ₹33.18 | ₹1,659.00 |
| 150+ | ₹29.49 | ₹4,423.50 |
| 500+ | ₹24.87 | ₹12,435.00 |
| 2,500+ | ₹22.82 | ₹57,050.00 |
| 5,000+ | ₹21.59 | ₹1,07,950.00 |
5 × ₹41.81
₹209.05
excl. GST
₹246.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NCP163AMX300TBG
₹209.05 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 12uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
The NCP163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCP163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excelent load/line transients. The NCP163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, WLCSP Packages, XDFN4 0.65P and industry standard SOT23−5L.
Applications
- Battery−powered Equipment
- Wireless LAN Devices
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Available in Fixed Voltage Option: 1.2 V to 5.3 V
- ±2% Accuracy Over Load/Temperature
- Ultra Low Quiescent Current Typ. 12 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 80 mV at 250 mA
- Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 6.5 VRMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in − WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm, WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm, XDFN4: 1 mm x 1 mm x 0.4 mm, SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
