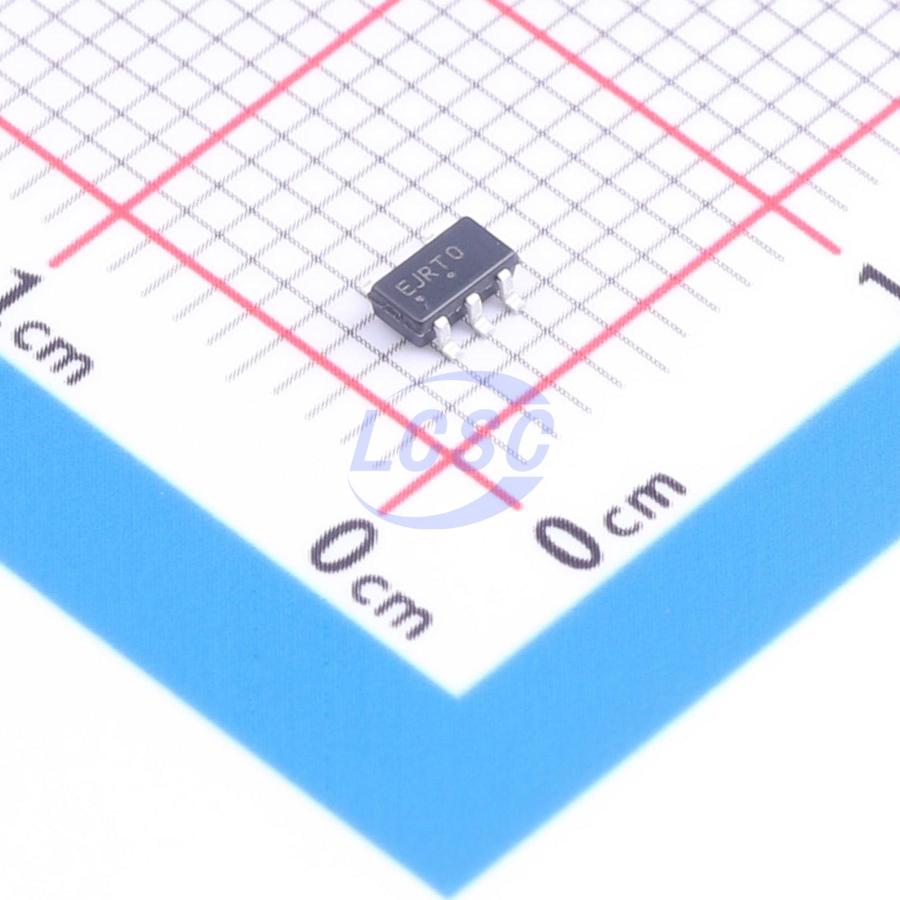

NCP164CSN180T1G

The NCP164C is a 300 mA LDO, next generation of high PSRR, ultra−low noise and low dropout regulators with Power Good open collector output. Designed to meet the requirements of RF and sensitive analog circuits, the NCP164C device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excellent load/line transients. The NCP164C is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in industry standard TSOP−5, WDFN6 0.65P, 2 mm x 2 mm and DFNW8 0.65P, 3 mm×3 mm.

Applications

• Communication Systems
• In−Vehicle Networking
• Telematics, Infotainment and Clusters
• General Purpose Automotive

Key features

• Operating Input Voltage Range: 1.6 V to 5.0 V
• Available in Fixed Voltage Option: 1.2 V to 4.5 V
• Adjustable Version Reference Voltage: 1.1 V
• ±2% Accuracy Over Load and Temperature
• Ultra Low Quiescent Current Typ. 30 μA
• Standby Current: Typ. 0.1 μA
• Very Low Dropout: 110 mV at 300 mA for 3.3 V Variant
• Ultra High PSRR: Typ. 85 dB at 10 mA, f = 1 kHz
• Ultra Low Noise: 9 μVRMS (Fixed Version)
• Stable with a 1 μF Small Case Size Ceramic Capacitors
• Available in - TSOP - 5 3 mm x 1.5 mm x 1 mm CASE 483 ♦WDFN6 2 mm x 2 mm x 0.75 mm CASE 511BR ♦DFNW8 3 mm x 3 mm x 0.9 mm CASE 507AD
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
