onsemiDatasheet (PDF)

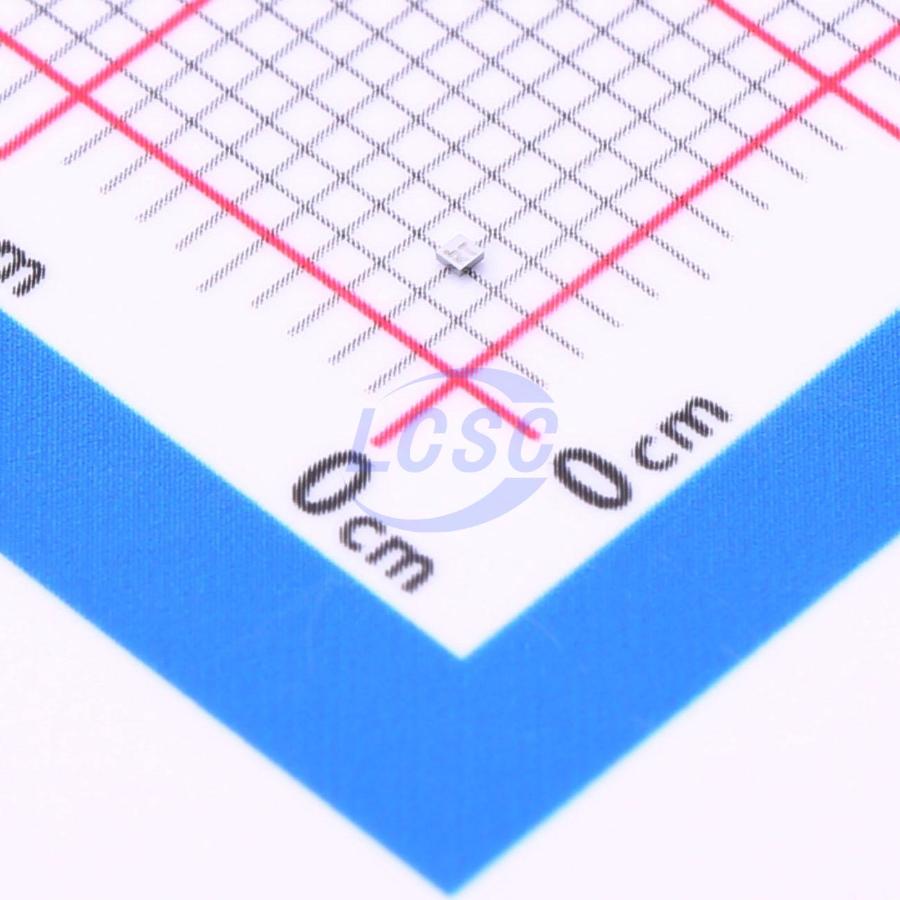

NCP167AFCT285T2G
2.85V Positive Fixed WLCSP-4(0.6x0.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WLCSP-4(0.6x0.6)ROHS3 CompliantActive
LDO Regulator - Ultra-Low Noise, High PSRR, RF and Analog Circuits
- Manufacturer
- onsemi
- Manufacturer part #
- NCP167AFCT285T2G
- Store part #
- C603661
- Package / case
- WLCSP-4(0.6x0.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,025 in stock
#C603661
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.42 | ₹167.10 |
| 50+ | ₹29.41 | ₹1,470.50 |
| 150+ | ₹27.70 | ₹4,155.00 |
| 500+ | ₹25.56 | ₹12,780.00 |
| 2,500+ | ₹24.61 | ₹61,525.00 |
| 5,000+ | ₹24.04 | ₹1,20,200.00 |
5 × ₹33.42
₹167.10
excl. GST
₹197.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NCP167AFCT285T2G
₹167.10 for 5 + GST
Specifications
- Output Voltage
- 2.85V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 18uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 700mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
The NCP167 is a linear regulator capable of supplying 700 mA output current. Designed to meet the requirements of RF and analog circuits, the NCP167 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, 0.65 mm x 0.65 mm Chip Scale Package (CSP) and XDFN4 0.65P, 1 mm x 1 mm.
Applications
- Battery−powered Equipment
- Wireless LAN Devices
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Operating Input Voltage Range: 1.9 V to 5.5 V
- Available in Fixed Voltage Option: 1.8 V to 5.2 V
- ±2% Accuracy Over Load/Temperature
- Ultra Low Quiescent Current Typ. 12 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 210 mV at 700 mA
- Ultra High PSRR: Typ. 85 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 8.5 VRMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in − WLCSP4 0.65 mm x 0.65 mm x 0.33 mm
- −XDFN4 1 mm x 1 mm x 0.4 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
