onsemiDatasheet (PDF)

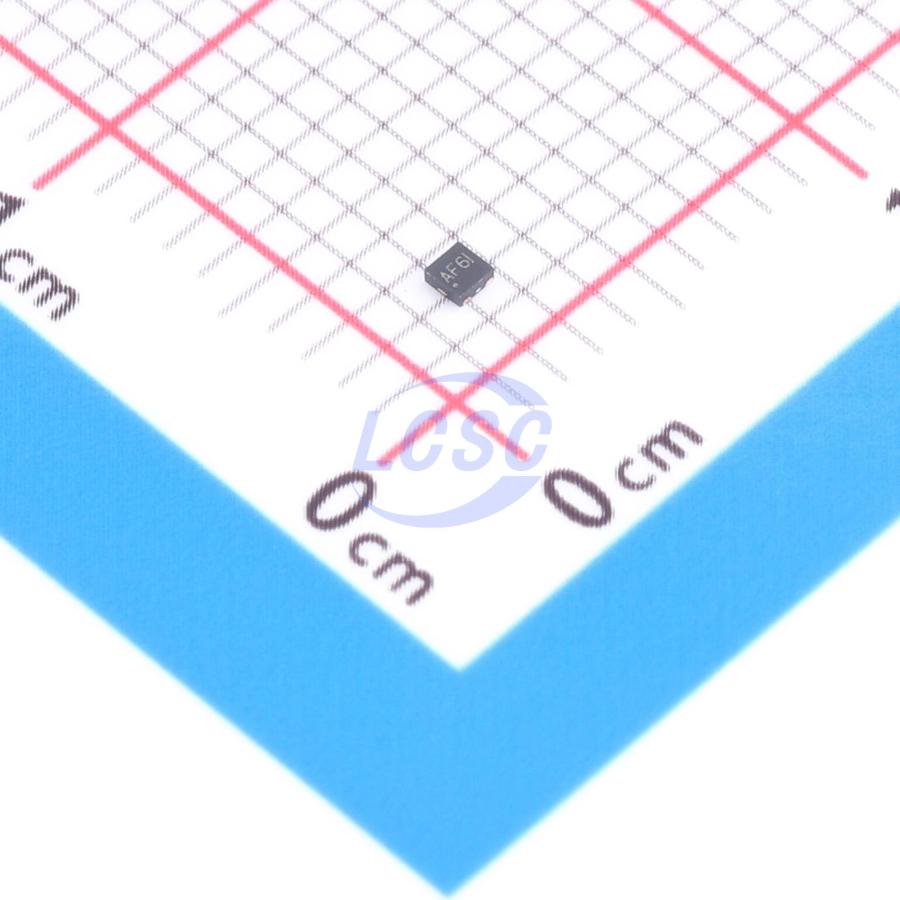

NCP170AMX280TBG
2.8V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4-EP(1x1)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170AMX280TBG
- Store part #
- C892233
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C892233
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.61 | ₹41.61 |
| 10+ | ₹40.59 | ₹405.90 |
| 30+ | ₹39.97 | ₹1,199.10 |
| 100+ | ₹39.15 | ₹3,915.00 |
1 × ₹41.61
₹41.61
excl. GST
₹49.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170AMX280TBG
₹41.61 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.444 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MG6229D4-28#C48678131Megain · DFN-4L(1x1) | Megain | DFN-4L(1x1) | 5,720 | ₹4.11 · 5,720 in stock | View |
 | SSP7615-28DFR#C3011521Siproin · DFN-4(1x1) | Siproin | DFN-4(1x1) | 7,985 | ₹13.12 · 7,985 in stock | View |
 | MG6228D4-28#C48678118Megain · DFN-4L(1x1) | Megain | DFN-4L(1x1) | 9,640 | ₹5.32 · 9,640 in stock | View |
 | LTP753-28NXF4#C22450501Linearin · UDFN-4L(1x1) | Linearin | UDFN-4L(1x1) | 290 | ₹24.65 · 290 in stock | View |
| LW5928N11E#C20630457Lewa Micro · DFN1x1-4L | Lewa Micro | DFN1x1-4L | 18,500 | ₹6.64 · 18,500 in stock | View | |
