onsemiDatasheet (PDF)

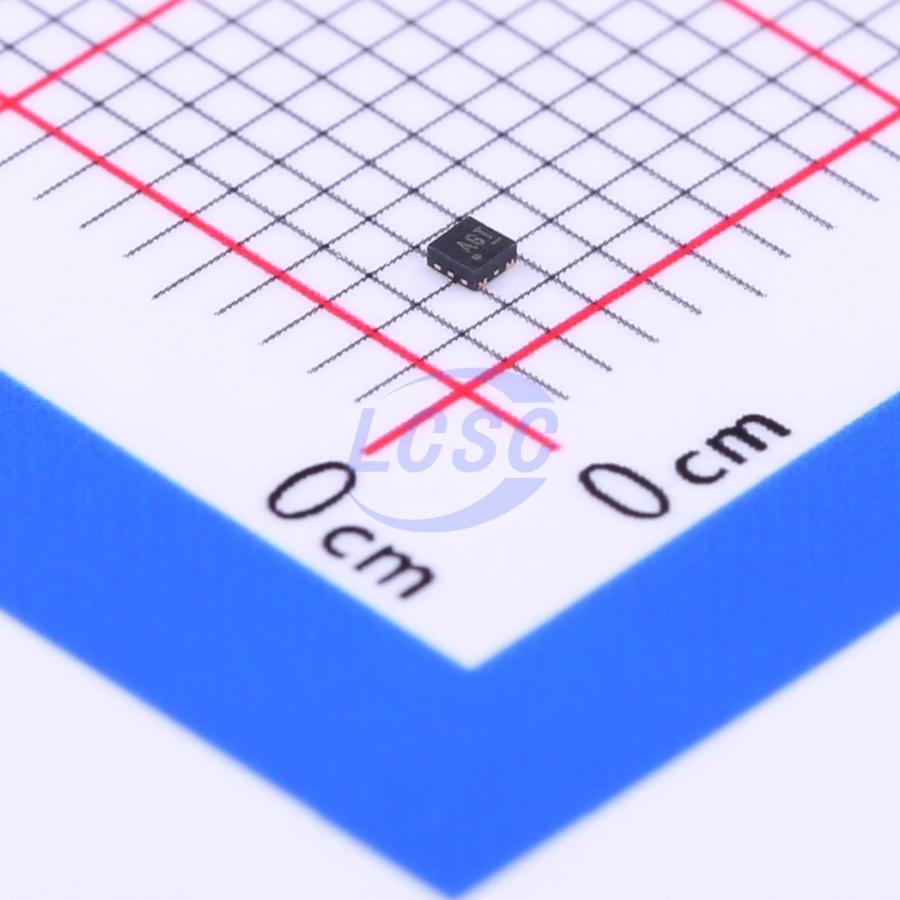

NCP170AMX330TCG
3.3V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-4-EP(1x1)ROHS3 CompliantActive
Ultra-Low lo 150 mA CMoS LDO Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170AMX330TCG
- Store part #
- C260426
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C260426
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.54 | ₹197.70 |
| 50+ | ₹32.86 | ₹1,643.00 |
| 150+ | ₹29.99 | ₹4,498.50 |
| 500+ | ₹26.42 | ₹13,210.00 |
| 3,000+ | ₹24.83 | ₹74,490.00 |
| 6,000+ | ₹23.88 | ₹1,43,280.00 |
5 × ₹39.54
₹197.70
excl. GST
₹233.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170AMX330TCG
₹197.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP170BMX330TCG#C892250onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 1 | ₹40.01 · 1 in stock | View |
 | MG6226D4-33#C22396248Megain · DFN-4L(1x1) | Megain | DFN-4L(1x1) | 6,700 | ₹5.09 · 6,700 in stock | View |
 | TP132C33D4#C2923395TECH PUBLIC · DFN-4-EP(1x1) | TECH PUBLIC | DFN-4-EP(1x1) | 520 | ₹13.19 · 520 in stock | View |
 | TP132C33D4-1#C2928715TECH PUBLIC · DFN-4-EP(1x1) | TECH PUBLIC | DFN-4-EP(1x1) | 7,440 | ₹11.26 · 7,440 in stock | View |
 | DS8561-33D4#C5795642DSTECH · DFN1x1-4L | DSTECH | DFN1x1-4L | 4,040 | ₹6.39 · 4,040 in stock | View |
