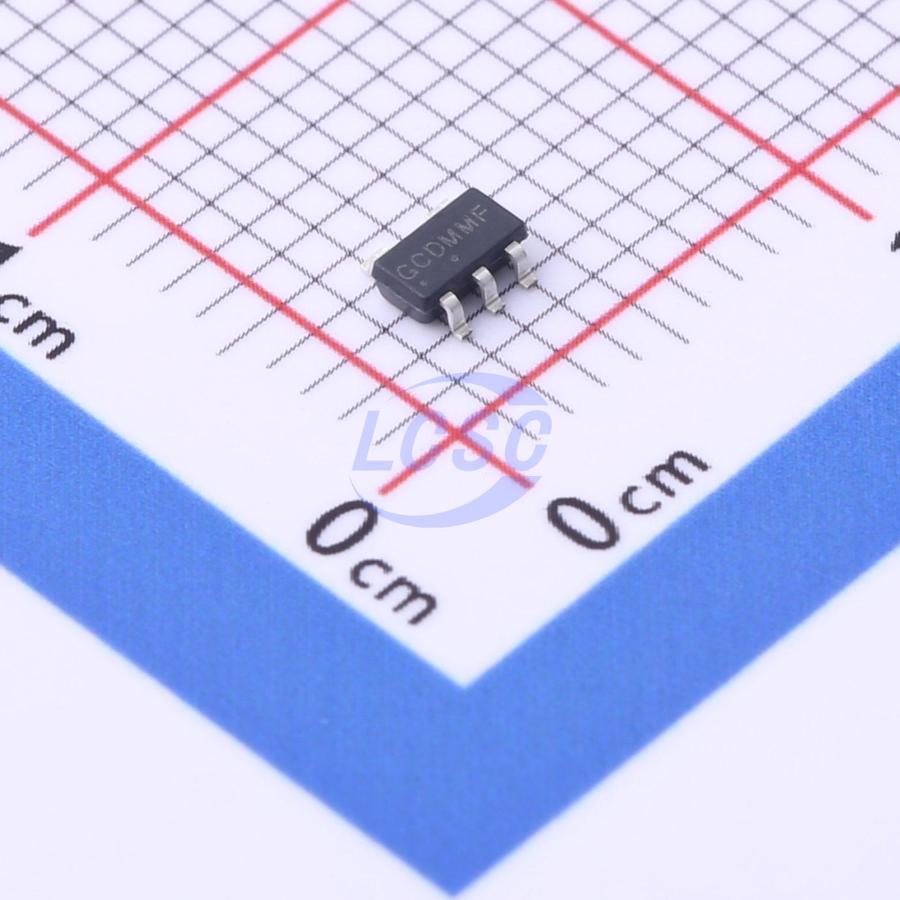

NCP170ASN330T2G
3.3V Positive Fixed TSOP-5-1.5mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5-1.5mmROHS3 CompliantActive
LDO Regulator Ultra-Low IQ, CMOS 150 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170ASN330T2G
- Store part #
- C513015
- Package / case
- TSOP-5-1.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,020 in stock
#C513015
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.19 | ₹66.19 |
| 10+ | ₹52.05 | ₹520.50 |
| 30+ | ₹45.72 | ₹1,371.60 |
| 100+ | ₹38.10 | ₹3,810.00 |
| 500+ | ₹34.85 | ₹17,425.00 |
| 1,000+ | ₹32.66 | ₹32,660.00 |
1 × ₹66.19
₹66.19
excl. GST
₹78.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170ASN330T2G
₹66.19 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- ECL99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MG6226T5-33#C42411005Megain · SOT-23-5 | Megain | SOT-23-5 | 77,940 | ₹4.51 · 77,940 in stock | View |
 | TPS78233DDCR#C14878TI · TSOT-23-5 | TI | TSOT-23-5 | 9,148 | ₹80.23 · 9,148 in stock | View |
 | TPS78233DDCT#C80673TI · SOT-23-5 | TI | SOT-23-5 | 109 | ₹188.59 · 109 in stock | View |
 | XC6219B332MR-G#C46517TOREX · SOT-25 | TOREX | SOT-25 | 3,415 | ₹32.33 · 3,415 in stock | View |
 | TCR3DF33,LM(CT#C146356TOSHIBA · SOT-25-5 | TOSHIBA | SOT-25-5 | 5 | ₹27.24 · 5 in stock | View |
