onsemiDatasheet (PDF)

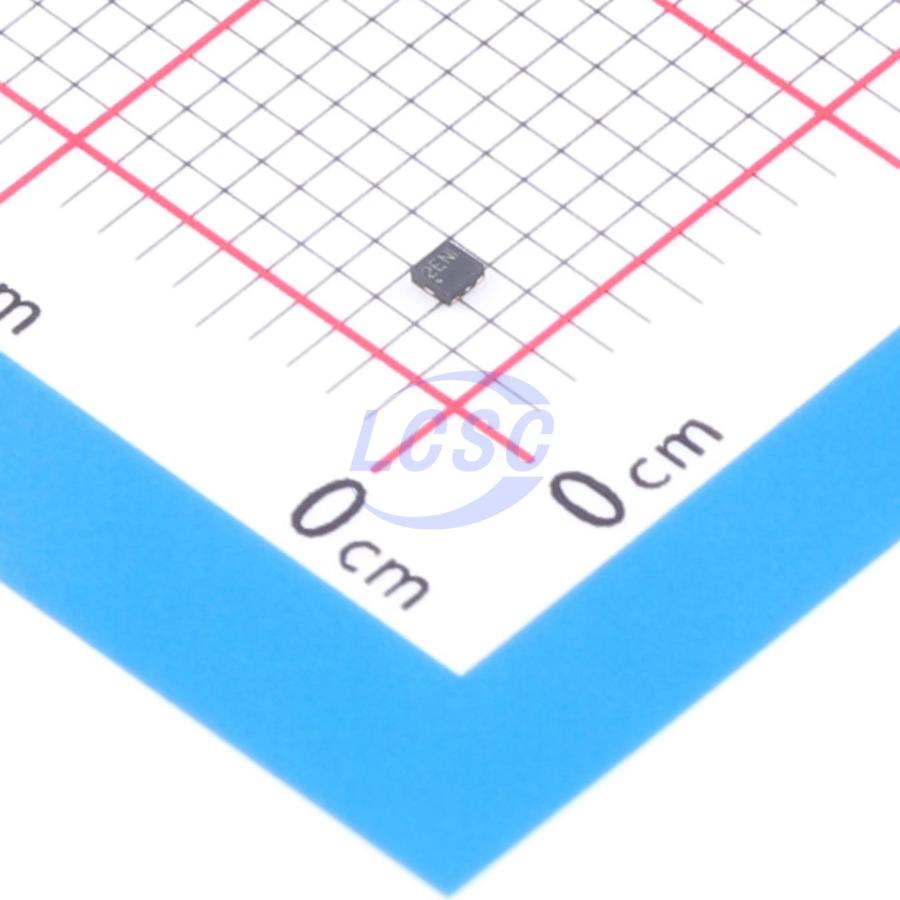

NCP170BMX250TCG
2.5V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4-EP(1x1)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170BMX250TCG
- Store part #
- C892245
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C892245
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹41.70 | ₹41.70 |
| 10+ | ₹40.85 | ₹408.50 |
| 30+ | ₹40.21 | ₹1,206.30 |
| 100+ | ₹39.57 | ₹3,957.00 |
1 × ₹41.70
₹41.70
excl. GST
₹49.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170BMX250TCG
₹41.70 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCP170AMX250TCG#C892232onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 1 | ₹75.65 · 1 in stock | View | |
 | MD5125#C919700Mingda Microelectronics · XDFN-4-EP(1x1) | Mingda Microelectronics | XDFN-4-EP(1x1) | 3,475 | ₹9.47 · 3,475 in stock | View |
 | SSP7615-25DFR#C5199843Siproin · DFN1x1-4 | Siproin | DFN1x1-4 | 10,050 | ₹12.16 · 10,050 in stock | View |
 | MG6226D4-25#C22396247Megain · DFN-4L(1x1) | Megain | DFN-4L(1x1) | 5,520 | ₹5.17 · 5,520 in stock | View |
 | TPS7A0325PDQNR#C2860859TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 493 | ₹51.09 · 493 in stock | View |
