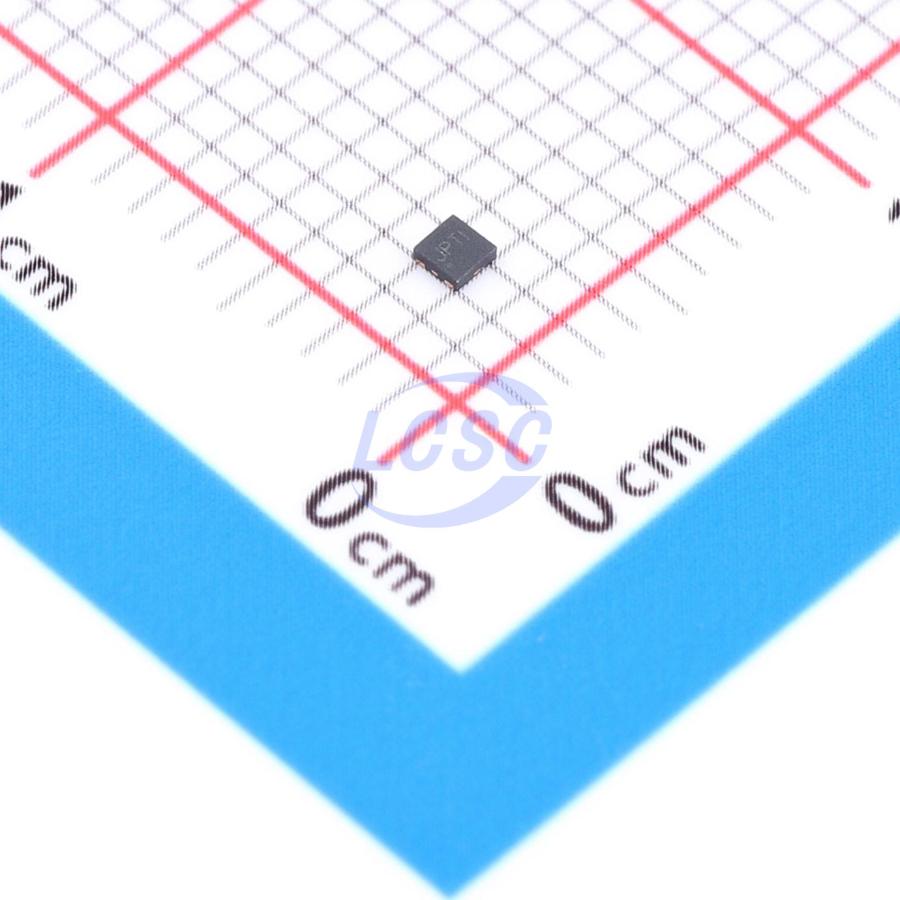

NCP171AMX100080TCG

The NCP171 is a Dual mode LDO offering up to 80 mA in Active Mode and as low as 50 nA of Iq in Low Power Mode. The Dual Mode function is selectable with the ECO pin allowing for dynamic switching between Active and Low Power Modes, ideal in long life battery powered applications. The output Voltage in Low Power mode can be lowered by an internally factory programmed value ranging 50 mV, 100 mV, 150 mV or 200 mV with respect to the nominal output voltage in Active Mode. This feature further lowers the application consumption in sleep mode. The NCP171 is in the SLIQ (Super Low Iq) LDO family and is available in small XDFN4 1.2×1.2 package.

Applications

• IoT
• RFID
• Portable Communication Equipment
• Consumer Electronics

Key features

• Operating Input Voltage Range: 1.7 V to 5.5 V
• Output Voltage Range: 0.6 V to 3.3 V (50 mV steps)
• Low Power Mode / Active Mode Externally Controlled by ECO pin
• Internally Factory Programmable Output Voltage Offset for Low Power/Active Mode to 50 mV, 100 mV, 150 mV, 200 mV
• Quiescent Current of 50 nA at No Load, (Low Power mode)
• Maximum Current 80 mA in Active Mode and 5 mA in Low Power Mode
• Low Dropout: 41 mV Typ. at 80 mA (Vout = 3.3 V)
• ±2% Output Voltage Accuracy in Active Mode
• High PSRR: 65 dB at 1 kHz in Active Mode
• Active Output Discharge for Fast Output Turn−Off
• Current Limitation, Thermal Shutdown
• Available in Small XDFN4 1.2x1.2 Package
• These are Pb−Free Devices
