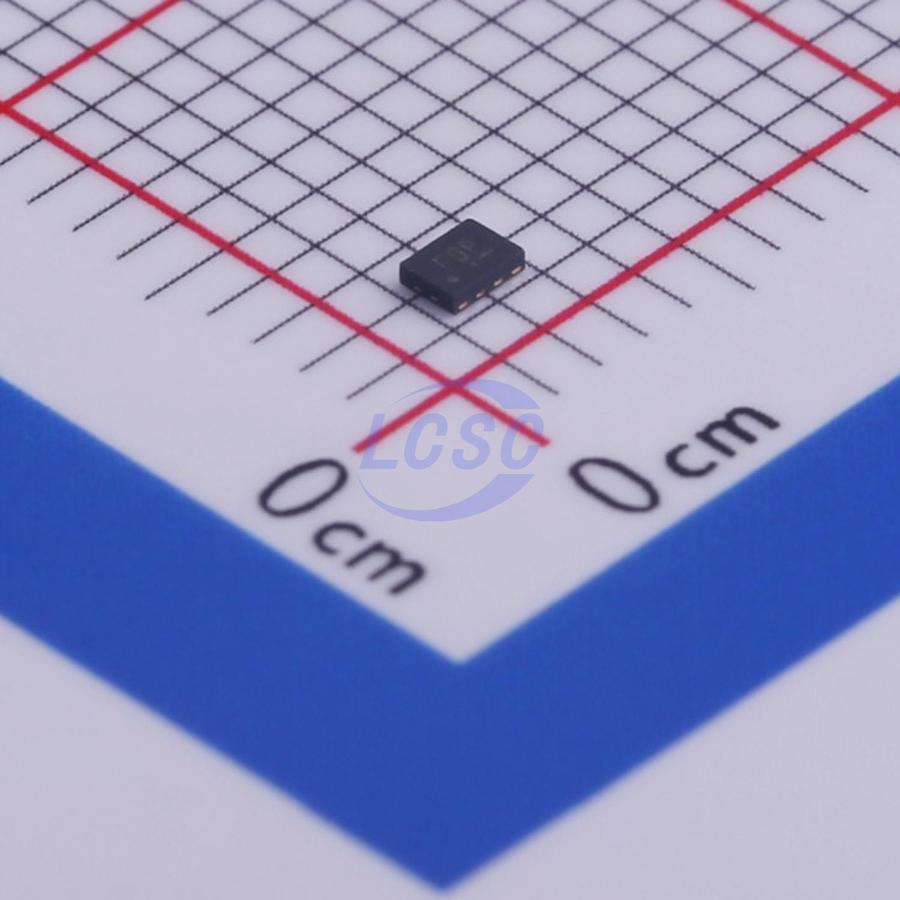

NCP186AMX300TAG
3V Positive Fixed XDFN8(1.2x1.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN8(1.2x1.6)ROHS3 CompliantActive
LDO Regulator - Fast Transient Response, Low Voltage, 1A
- Manufacturer
- onsemi
- Manufacturer part #
- NCP186AMX300TAG
- Store part #
- C463346
- Package / case
- XDFN8(1.2x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76 in stock
#C463346
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.44 | ₹47.44 |
| 10+ | ₹46.37 | ₹463.70 |
| 30+ | ₹45.95 | ₹1,378.50 |
| 100+ | ₹45.31 | ₹4,531.00 |
1 × ₹47.44
₹47.44
excl. GST
₹55.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP186AMX300TAG
₹47.44 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Features
- Enable control;Built-in soft-start;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.012 g
Overview
The NCP186x series are CMOS LDO regulators featuring 1 A output current. The input voltage is as low as 1.8 V and the output voltage can be set from 0.8 V.
Applications
- Battery Powered Equipment
- Portable Communication Equipment
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 1.8 V to 5.5 V
- Output Voltage Range: 0.8 to 3.9 V
- Fixed or Adjustable Output Voltage Applications
- Quiescent Current typ. 90 μA
- Low Dropout: 100 mV typ. at 1 A, ΔV_OUT = 3.0 V
- High Output Voltage Accuracy ±1%
- Stable with Small 1 μF Ceramic Capacitors
- Over−current Protection
- Built−in Soft Start Circuit to Suppress Inrush Current
- Thermal Shutdown Protection: 165 °C
- With (NCP186A) and Without (NCP186B) Output Discharge Function
- Available in XDFN8 1.2x1.6 mm & DFN12 4x4 mm Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD56100DPU30R#C2970549ST · DFN-8(1.2x1.6) | ST | DFN-8(1.2x1.6) | 11 | ₹108.10 · 11 in stock | View |
| SUL6001D8-30#C52034508Suntek · DFN-8(1.2x1.6) | Suntek | DFN-8(1.2x1.6) | 240 | ₹45.14 · 240 in stock | View | |
| NCP186BMX300TAG#C892295onsemi · XDFN-8-EP(1.2x1.6) | onsemi | XDFN-8-EP(1.2x1.6) | On request | ₹22.80 · 0 in stock | View | |
| SGM2039A-3.0XXEV8G/TR#C5152973SGMICRO · XTDFN-8L(1.2x1.6) | SGMICRO | XTDFN-8L(1.2x1.6) | On request | ₹65.40 · 0 in stock | View | |
 | NCP706AMX300TAG#C184197onsemi · XDFN-8-EP(1.2x1.6) | onsemi | XDFN-8-EP(1.2x1.6) | On request | ₹21.96 · 0 in stock | View |
