UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.71
17,51,550 in stock
onsemiDatasheet (PDF)

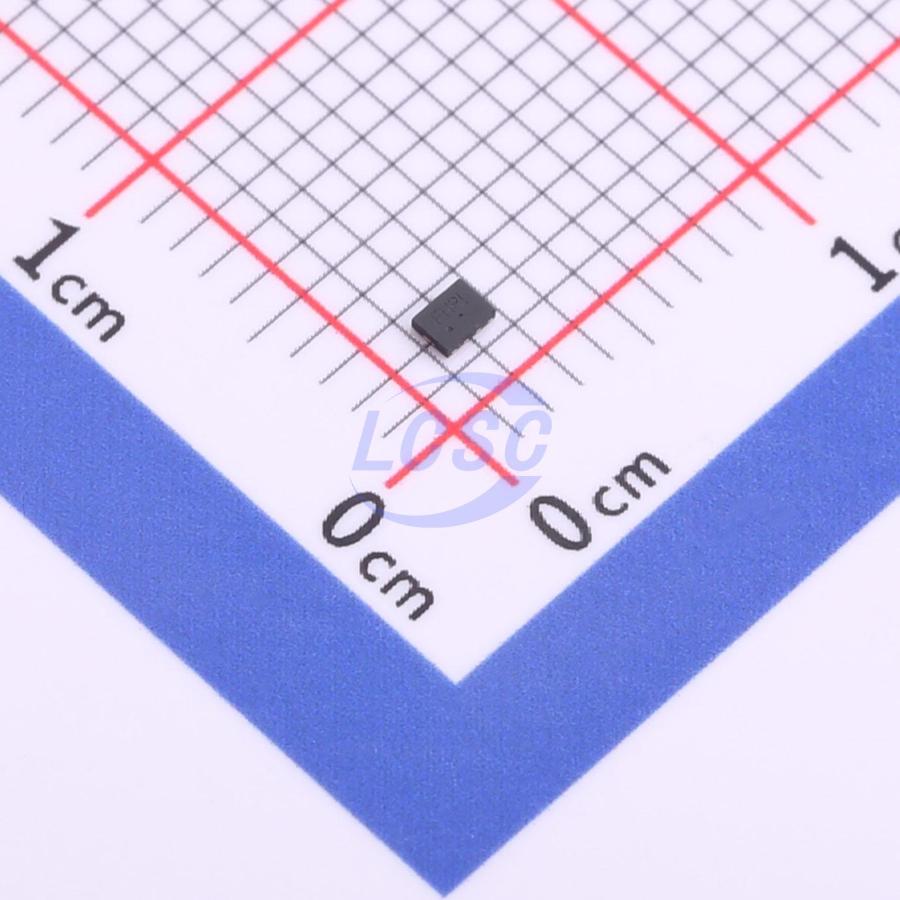

NCP186AMX330TAG
3.3V Positive Fixed XDFN8(1.2x1.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN8(1.2x1.6)ROHS3 CompliantActive
LDO Regulator - Fast Transient Response, Low Voltage, 1A
- Manufacturer
- onsemi
- Manufacturer part #
- NCP186AMX330TAG
- Store part #
- C719823
- Package / case
- XDFN8(1.2x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,760 in stock
#C719823
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.21 | ₹226.05 |
| 50+ | ₹35.05 | ₹1,752.50 |
| 150+ | ₹30.69 | ₹4,603.50 |
| 500+ | ₹25.26 | ₹12,630.00 |
| 2,500+ | ₹22.83 | ₹57,075.00 |
| 5,000+ | ₹21.38 | ₹1,06,900.00 |
5 × ₹45.21
₹226.05
excl. GST
₹266.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NCP186AMX330TAG
₹226.05 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Features
- Enable control;Built-in soft-start;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The NCP186x series are CMOS LDO regulators featuring 1 A output current. The input voltage is as low as 1.8 V and the output voltage can be set from 0.8 V.
Applications
- Battery Powered Equipment
- Portable Communication Equipment
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 1.8 V to 5.5 V
- Output Voltage Range: 0.8 to 3.9 V
- Fixed or Adjustable Output Voltage Applications
- Quiescent Current typ. 90 μA
- Low Dropout: 100 mV typ. at 1 A, ΔV_OUT = 3.0 V
- High Output Voltage Accuracy ±1%
- Stable with Small 1 μF Ceramic Capacitors
- Over−current Protection
- Built−in Soft Start Circuit to Suppress Inrush Current
- Thermal Shutdown Protection: 165 °C
- With (NCP186A) and Without (NCP186B) Output Discharge Function
- Available in XDFN8 1.2x1.6 mm & DFN12 4x4 mm Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP186BMX330TAG#C603677onsemi · XDFN-8-EP(1.2x1.6) | onsemi | XDFN-8-EP(1.2x1.6) | 1,653 | ₹64.54 · 1,653 in stock | View |
 | SUL6001D8-33#C5120333Suntek · DFN1216-8 | Suntek | DFN1216-8 | 914 | ₹70.90 · 914 in stock | View |
 | SGM2039A-3.3XXEV8G/TR#C5152974SGMICRO · XTDFN-8L(1.2x1.6) | SGMICRO | XTDFN-8L(1.2x1.6) | 4,861 | ₹70.11 · 4,861 in stock | View |
| SK6053ND8-33#C22447235Suntek · DFN1612-8L | Suntek | DFN1612-8L | 270 | ₹31.10 · 270 in stock | View | |
 | ETA5060V330DBI#C42438254etasolution · DFN-8-EP(1.2x1.6) | etasolution | DFN-8-EP(1.2x1.6) | 3,680 | ₹24.53 · 3,680 in stock | View |
