onsemiDatasheet (PDF)

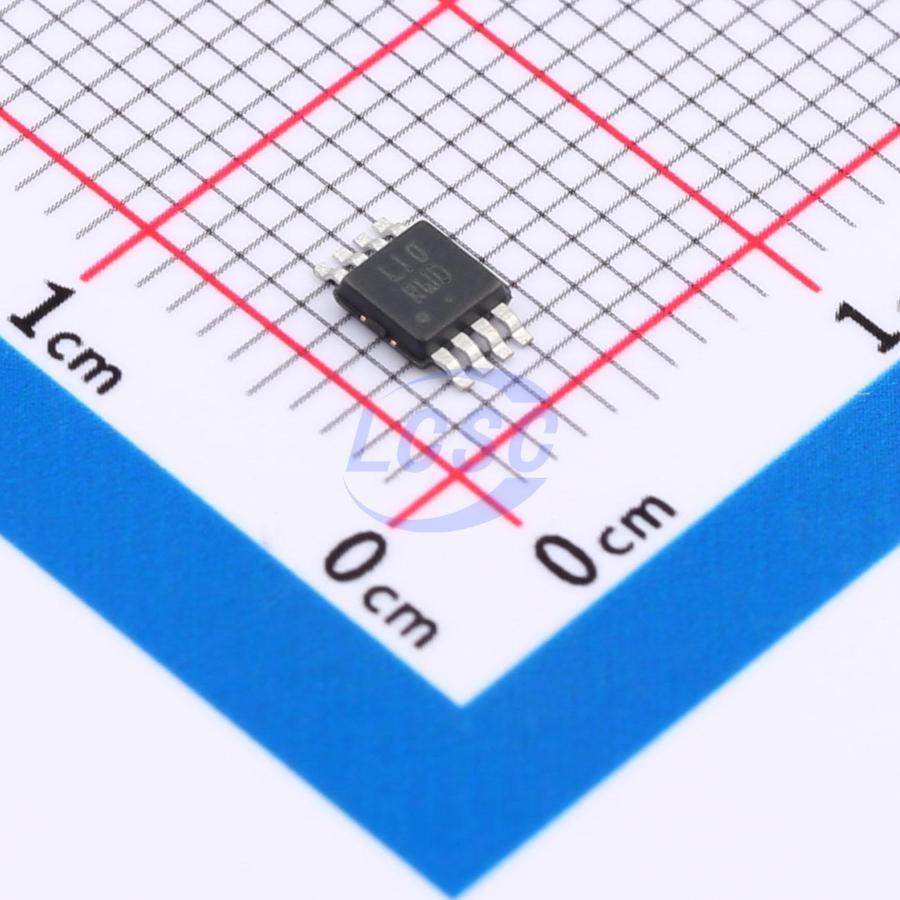

NCP3335ADMADJR2G
Positive Adjustable Micro-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
Micro-8ROHS3 CompliantActive
Low Dropout Regulator, Ultra High Accuracy, Low lq, 500 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP3335ADMADJR2G
- Store part #
- C223565
- Package / case
- Micro-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,339 in stock
#C223565
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.52 | ₹80.52 |
| 10+ | ₹70.30 | ₹703.00 |
| 30+ | ₹64.69 | ₹1,940.70 |
| 100+ | ₹58.39 | ₹5,839.00 |
| 500+ | ₹40.69 | ₹20,345.00 |
| 1,000+ | ₹39.32 | ₹39,320.00 |
1 × ₹80.52
₹80.52
excl. GST
₹95.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP3335ADMADJR2G
₹80.52 for 1 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 12V
- Output Type
- Adjustable
- Features
- Enable control;Noise bypass terminal;Reverse polarity voltage protection;Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
The NCP3335A is a high performance, low dropout regulator with accuracy of ±0.9% over line and load. This device features ultra−low quiescent current and noise which encompasses all necessary characteristics demanded by today’s consumer electronics. This unique device is guaranteed to be stable without a minimum load current requirement and stable with any type of capacitor as small as 1.0 μF. The NCP3335A also comes equipped with sense and noise reduction pins to increase the overall utility of the device and offers reverse bias protection.
Applications
- PCMCIA Card
- Cellular Phones
- Camcoders and Cameras
- Networking Systems, DSL/Cable Modems
- Cable Set−Top Box
- MP3/CD Players
- DSP Supply
- Displays and Monitors
Key features
- High Accuracy Over Line and Load ±0.9% at 25°C
- Ultra−Low Dropout Voltage at Full Load 260 mV typ.
- No Minimum Output Current Required for Stability
- Low Noise (31 μVrms w/10 nF Cnr and 51 μVrms w/out Cnr)
- Low Shutdown Current (0.07 μA)
- Reverse Bias Protected
- 2.6 V to 12 V Supply Range
- Thermal Shutdown Protection
- Current Limitation
- Requires Only 1.0 μF Output Capacitance for Stability
- Stable with Any Type of Capacitor (including MLCC)
- Available in 1.5 V, 1.8 V, 2.5 V, 2.8 V, 2.85 V, 3.0 V, 3.3 V, 5.0 V and Adjustable Output Voltages
- These are Pb−Free Devices
