JSMSEMIDatasheet (PDF)

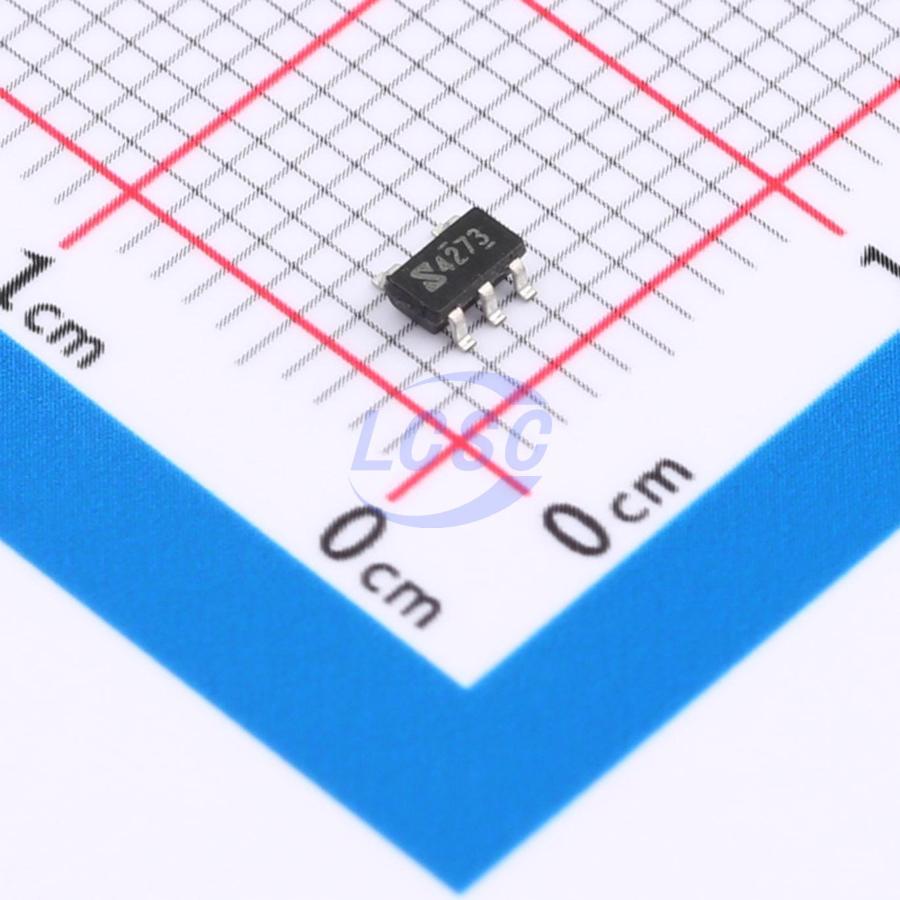

NCP51100ASNT1G-JSM
Gate Driver IC MOSFET IGBT SOT-23-5
SOT-23-5ROHS CompliantActive
2A single-channel low-side non-inverting gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- NCP51100ASNT1G-JSM
- Store part #
- C7498961
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C7498961
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.09 | ₹150.45 |
| 50+ | ₹23.63 | ₹1,181.50 |
| 150+ | ₹20.85 | ₹3,127.50 |
| 500+ | ₹17.40 | ₹8,700.00 |
| 3,000+ | ₹15.86 | ₹47,580.00 |
| 6,000+ | ₹14.94 | ₹89,640.00 |
5 × ₹30.09
₹150.45
excl. GST
₹177.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP51100ASNT1G-JSM
₹150.45 for 5 + GST
Specifications
- Low Level Delay Time
- 50ns
- High Level Delay Time
- 50ns
- Quiescent Current
- 180uA
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 25ns
- Fall Time
- 25ns
- Features
- Enable shutdown;Under-voltage lockout
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The NCP51100 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated architecture. The NCP51100 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operational temperature range: -40°C to 125°C.
Applications
- Switching power supplies
- General-purpose gate driver for switch-mode converters driving MOSFETs and IGBTs
Key features
- CMOS Schmitt trigger input
- Non-inverting input/output
- Compatible with 3.3V input logic
- Operating range: 5V~25V
- High capacitive load drive capability: switching time < 100ns at 1nF load
- Wide temperature range: -40°C~125°C
- Undervoltage lockout (UVLO)
- UVLO positive-going threshold: 4.0V
- UVLO negative-going threshold: 3.9V
- Turn-on/turn-off propagation delay
- Ton/Toff = 50ns/50ns
- Drive current capability: source/sink = 2A/2A
- RoHS compliant
- SOT23-5
