onsemiDatasheet (PDF)

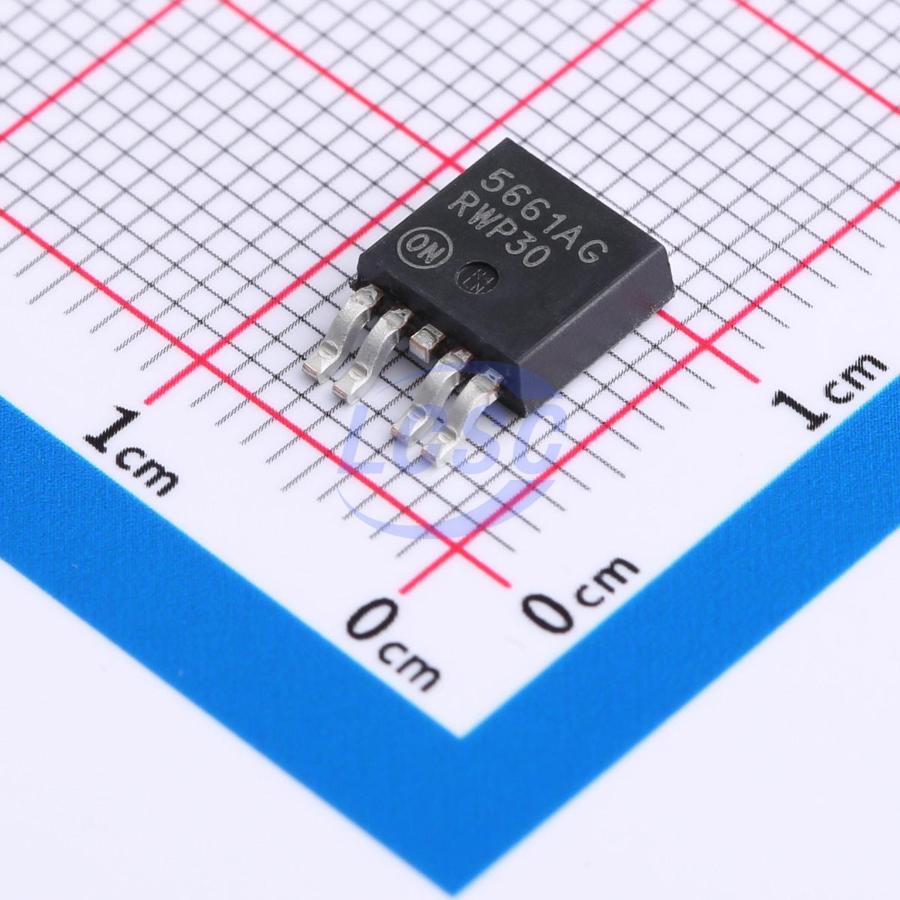

NCP5661DTADJRKG
900mV~7.7V Positive Adjustable TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-5ROHS3 CompliantActive
1.0A linear regulator with low output voltage, ultra-fast low dropout, and enable function
- Manufacturer
- onsemi
- Manufacturer part #
- NCP5661DTADJRKG
- Store part #
- C904524
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,561 in stock
#C904524
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹217.69 | ₹217.69 |
| 10+ | ₹183.65 | ₹1,836.50 |
| 30+ | ₹162.40 | ₹4,872.00 |
| 100+ | ₹133.78 | ₹13,378.00 |
| 500+ | ₹124.02 | ₹62,010.00 |
| 1,000+ | ₹119.69 | ₹1,19,690.00 |
1 × ₹217.69
₹217.69
excl. GST
₹256.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP5661DTADJRKG
₹217.69 for 1 + GST
Specifications
- Output Voltage
- 900mV~7.7V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Positive
- Operating Voltage
- 9V
- Output Current
- 1A
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.81 g
Overview
The NCP5661/NCV5661 is a high performance, low dropout linear regulator designed for high power applications that require up to 1.0 A current. It is offered in both fixed and adjustable output versions. With output voltages as low as 0.9 V and ultra−fast response times for load transients, the NCP5661/NCV5661 also provides additional features such as Enable and Error Flag (for the fixed output version), increasing the utility of these devices. A thermally robust, 5 pin DPAK or DFN 3x3.3 mm, combined with an architecture that offers low ground current (independent of load), provides for a superior high−current LDO solution.
Applications
- Servers
- ASIC Power Supplies
- Post Regulation for Power Supplies
- Constant Current Source
- Networking Equipment
- Gaming and STB Modules
Key features
- Ultra−Fast Transient Response (Settling Time: 1 - 3 μs)
- Low Noise Without Bypass Capacitor (26 μVrms)
- Low Ground Current Independent of Load (3.0 mA Maximum)
- Fixed/Adjustable Output Voltage Versions
- Enable Function
- Error Flag (Fixed Output Version)
- Current Limit Protection
- Thermal Protection
- 0.9 V Reference Voltage for Ultra−Low Output Operation
- Power Supply Rejection Ratio > 65 dB
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
