onsemiDatasheet (PDF)

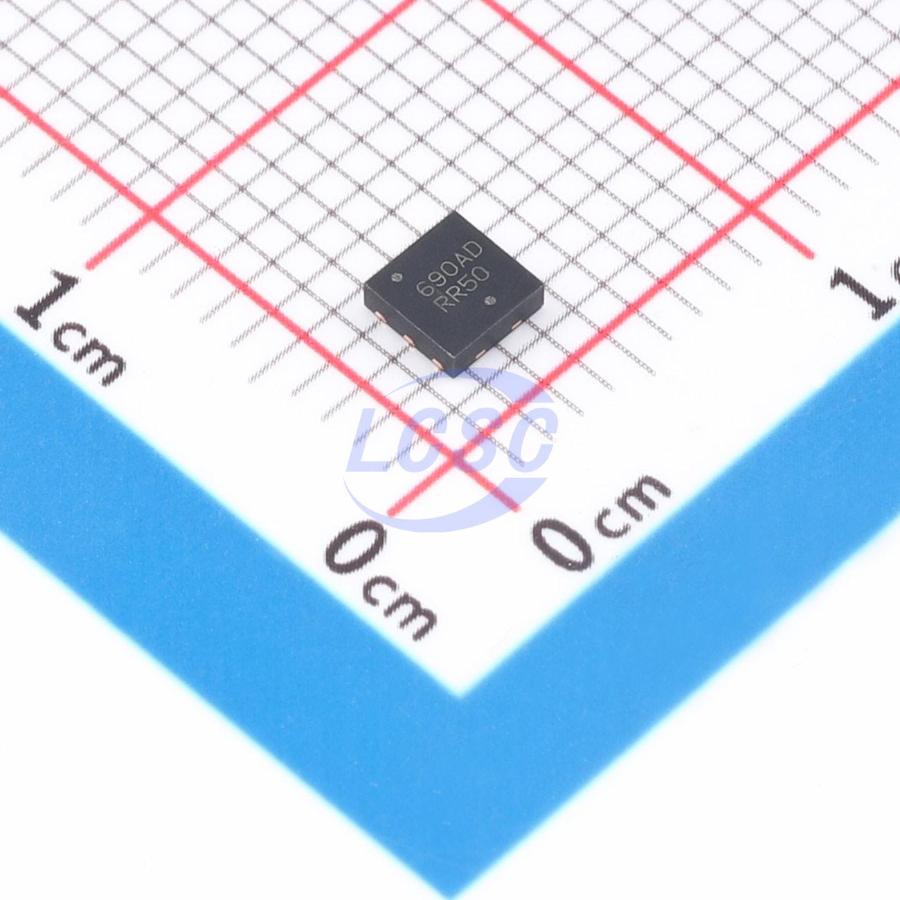

NCP690MNADJT2G
1.25V~5V Positive Adjustable DFN-6(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-6(3x3)ROHS3 CompliantActive
1 A Very Low Dropout Voltage Regulator (VLDO)
- Manufacturer
- onsemi
- Manufacturer part #
- NCP690MNADJT2G
- Store part #
- C892656
- Package / case
- DFN-6(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C892656
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.57 | ₹140.57 |
| 10+ | ₹136.92 | ₹1,369.20 |
| 30+ | ₹134.56 | ₹4,036.80 |
| 100+ | ₹132.21 | ₹13,221.00 |
1 × ₹140.57
₹140.57
excl. GST
₹165.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP690MNADJT2G
₹140.57 for 1 + GST
Specifications
- Output Voltage
- 1.25V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 145uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 1A
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The NCP690, NCP691, NCP692, NCV8690 CMOS LDO family provides 1 A of output current with enhanced ESD in either fixed voltage options or an adjustable output voltage from 5.0 V down to 1.25 V. This device is designed for space constrained and portable battery powered applications and offer additional features such as high PSRR, low Quiescent and Ground current consumption, low noise operation, short circuit and thermal protection. The device is designed to be used with low cost ceramic capacitors and is packaged in the 6−Lead DFN3x3 package.
Applications
- Laptops and PCI Cards
- Modem Banks and Telecom Boards
- DSP, FPGA, Microprocessor Boards
- Portable, Battery−Power Applications
- Hard Disk Drives
Key features
- Output Voltage Options: Adjustable, 1.5 V, 1.8 V, 2.5 V, 3.3 V, 5.0 V – Other Options Possible
- Adjustable Output by External Resistors from 5.0 V down to 1.25 V
- Guaranteed 1 A Output Current
- ±1.5% Output Voltage Tolerance over All Operating Conditions (Adjustable)
- ±2% Output Voltage Tolerance over All Operating Conditions (Fixed)
- Typical Noise Voltage of 50 μVrms without a Bypass Capacitor
- Typical Dropout Voltage of 190 mV at 1 A (Vout = 2.5 V, TJ = 25°C)
- Active Output Discharge
- Active Low Enable Pin (NCP691 Device)
- Active High Enable Pin (NCP692 device)
- Enhanced ESD: 4 kV and 200 V
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
