onsemiDatasheet (PDF)

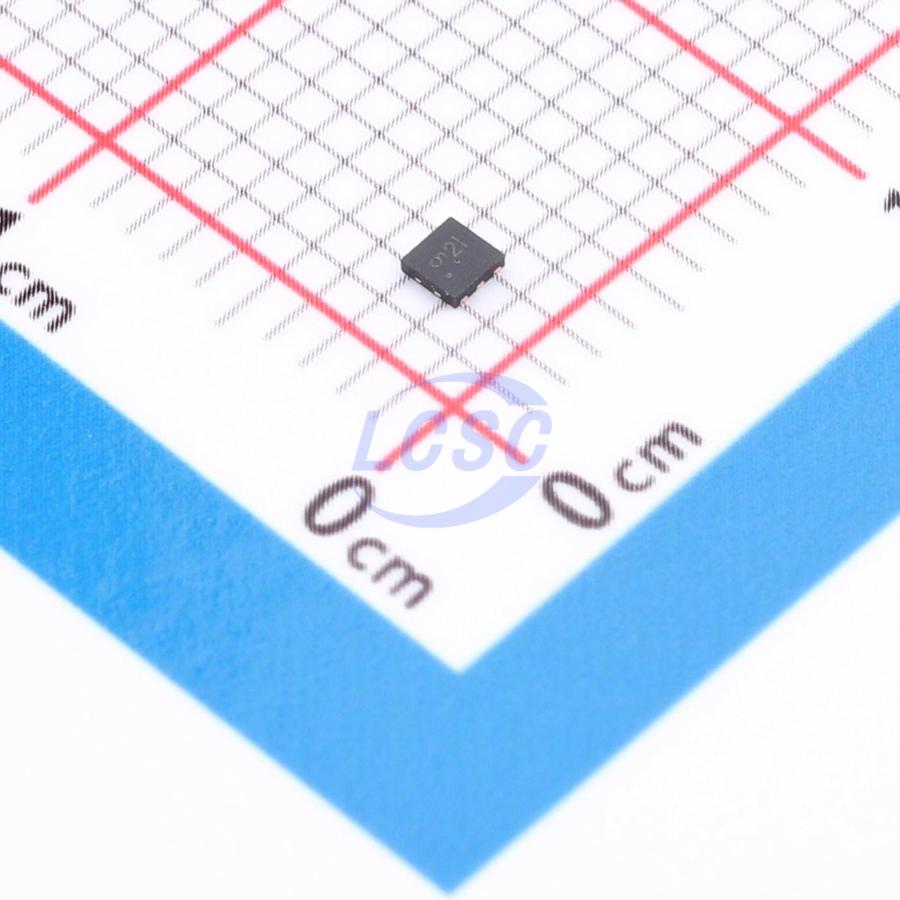

NCP715MX50TBG
5V Positive Fixed XDFN-6(1.5x1.5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-6(1.5x1.5)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP715MX50TBG
- Store part #
- C892738
- Package / case
- XDFN-6(1.5x1.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C892738
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.48 | ₹124.48 |
| 10+ | ₹121.50 | ₹1,215.00 |
| 30+ | ₹119.80 | ₹3,594.00 |
| 100+ | ₹117.88 | ₹11,788.00 |
1 × ₹124.48
₹124.48
excl. GST
₹146.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP715MX50TBG
₹124.48 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 3.2uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 50mA
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
Overview
The NCP715 is 50 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5.3 V
- Ultra Low Quiescent Current: Max. 4.7 μA Over Full Load and Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 52 dB at 100 kHz
- Noise: 190 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit protection
- Available in XDFN6 1.5 x 1.5 mm, SC−70 (SC−88A) and TSOP−5 Packages
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCV8715MX50TBG#C893295onsemi · XDFN-6(1.5x1.5) | onsemi | XDFN-6(1.5x1.5) | On request | ₹85.36 · 0 in stock | View | |
