onsemiDatasheet (PDF)

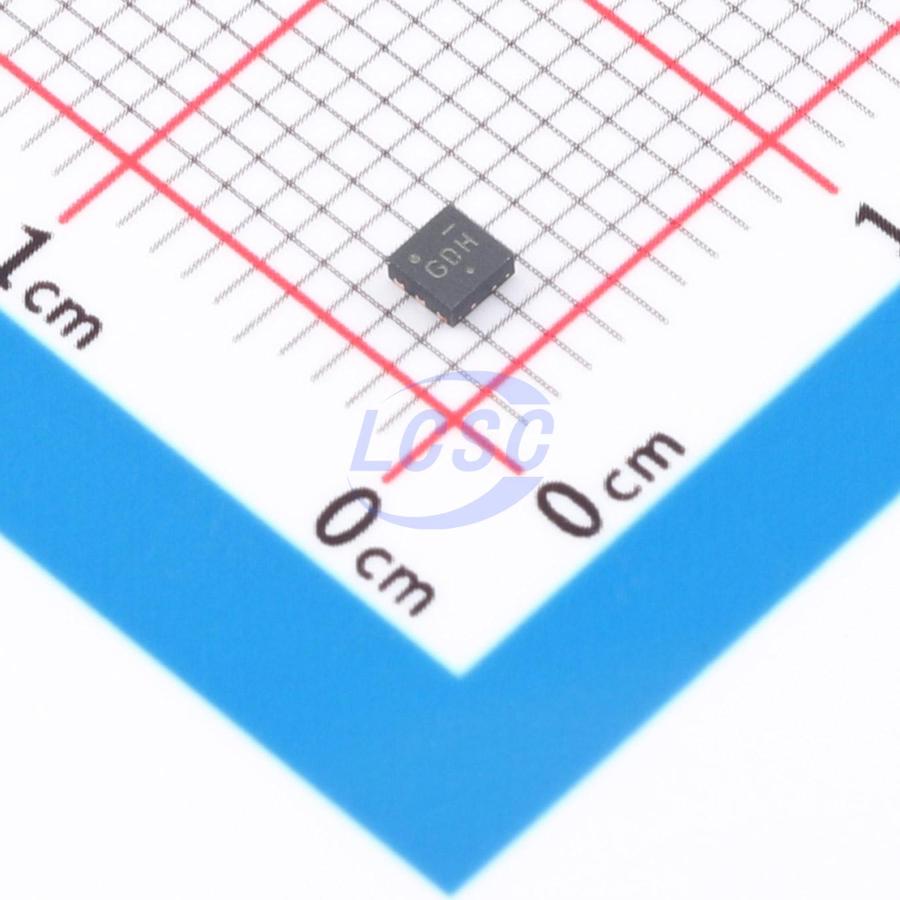

NCP718AMT250TBG
2.5V Positive Fixed WDFN-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WDFN-6-EP(2x2)ROHS3 CompliantActive
Low Dropout Regulator, Wide Input Voltage, Low lq, 300 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP718AMT250TBG
- Store part #
- C892784
- Package / case
- WDFN-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C892784
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.60 | ₹69.60 |
| 10+ | ₹67.87 | ₹678.70 |
| 30+ | ₹66.79 | ₹2,003.70 |
| 100+ | ₹65.49 | ₹6,549.00 |
1 × ₹69.60
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP718AMT250TBG
₹69.60 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 300mA
- Features
- Enable control;Built-in soft-start;Thermal shutdown;Over Current Protection;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The NCP718 is 300 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low quiescent current consumption (typ. 4 μA over the full temperature range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Wireless Chargers
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5 V (upon request)
- Adjustable Voltage Option from 1.2 V to 5 V
- Ultra−Low Quiescent Current: typ. 4 μA over Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 1 kHz
- Noise: typ. 36 μV_RMS from 100 Hz to 100 kHz
- Stable with Small 1 μF Ceramic Capacitor
- Soft−start to Reduce Inrush Current and Overshoots
- Thermal Shutdown and Current Limit Protection
- SOA Limiting for High Vin / High Iout – Static / Dynamic
- Active Discharge Option Available (upon request)
- Available in TSOT−23−5 and WDFN6 2x2 mm Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A2525DRVR#C2867877TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 151 | ₹137.00 · 151 in stock | View |
