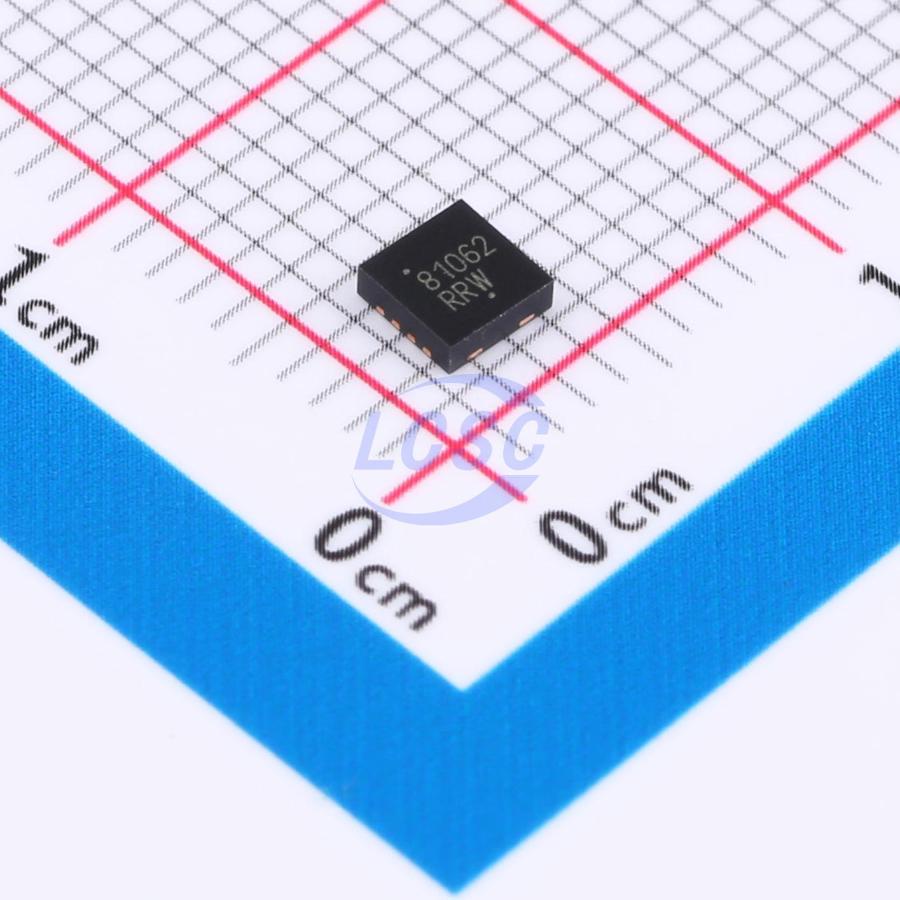

NCP81062MNTWG
4.5V~13.2V DFN-8(3x3) Gate Drivers RoHS
VR12 Compatible Synchronous Buck MOSFET Drivers
- Manufacturer
- onsemi
- Manufacturer part #
- NCP81062MNTWG
- Store part #
- C154581
- Package / case
- DFN-8(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,359 in stock
#C154581
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.08 | ₹48.08 |
| 10+ | ₹42.22 | ₹422.20 |
| 30+ | ₹39.72 | ₹1,191.60 |
| 100+ | ₹36.79 | ₹3,679.00 |
| 500+ | ₹35.32 | ₹17,660.00 |
| 1,000+ | ₹34.49 | ₹34,490.00 |
1 × ₹48.08
₹48.08
excl. GST
₹56.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP81062MNTWG
₹48.08 for 1 + GST
Specifications
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Voltage - Supply
- 4.5V~13.2V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -10℃~+125℃
- Rise Time
- 16ns
- Fall Time
- 11ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.121 g
Overview
The NCP81062 is a high performance dual MOSFET gate driver optimized to drive the gates of both high−side and low−side power MOSFETs in a synchronous buck converter. It can drive up to 3 nF load with a 25 ns propagation delay and 20 ns transition time. Adaptive anti−cross−conduction and power saving operation circuit can provide a low switching loss and high efficiency solution for notebook and desktop systems. Bidirectional EN pin can provide a fault signal to controller when the gate driver fault detect under OVP, UVLO occur. Also, an under−voltage lockout function guarantees the outputs are low when supply voltage is low.
Applications
- Power Solutions for Desktop Systems
- The NCP81062 gate driver is a single phase MOSFET driver designed for driving N−channel MOSFETs in a synchronous buck converter topology. This gate driver is optimized for desktop applications.
Key features
- Faster Rise and Fall Times
- Adaptive Anti−Cross−Conduction Circuit
- Integrated Bootstrap Diode
- Pre OV function
- ZCD Detect
- Floating Top Driver Accommodates Boost Voltages of up to 35 V
- Output Disable Control Turns Off Both MOSFETs
- Under−voltage Lockout
- Power Saving Operation Under Light Load Conditions
- Direct Interface to NCP6151 and Other Compatible PWM Controllers
- Thermally Enhanced Package
- These are Pb−Free Devices
