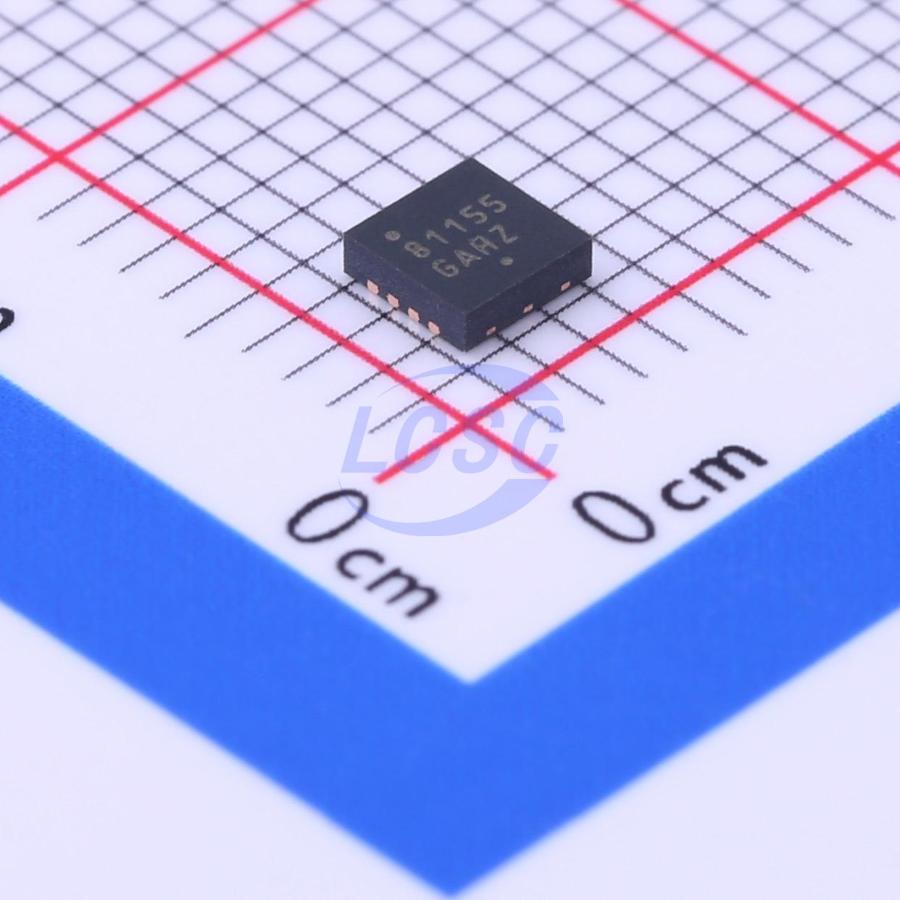

NCP81155MNTXG
4.5V~13.2V 1.4mA DFN-8-EP(3x3) Gate Drivers RoHS
DFN-8-EP(3x3)ROHS3 CompliantActive
MOSFET Driver
- Manufacturer
- onsemi
- Manufacturer part #
- NCP81155MNTXG
- Store part #
- C173765
- Package / case
- DFN-8-EP(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C173765
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.37 | ₹79.37 |
| 10+ | ₹63.09 | ₹630.90 |
| 30+ | ₹55.95 | ₹1,678.50 |
| 100+ | ₹47.27 | ₹4,727.00 |
| 500+ | ₹43.37 | ₹21,685.00 |
| 1,000+ | ₹41.20 | ₹41,200.00 |
1 × ₹79.37
₹79.37
excl. GST
₹93.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP81155MNTXG
₹79.37 for 1 + GST
Specifications
- High Level Delay Time
- 13ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2V
- Voltage - Supply
- 4.5V~13.2V
- Operating Temperature
- -10℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.4mA
- Rise Time
- 16ns
- Fall Time
- 11ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
The NCP81155 is a high−performance dual MOSFET gate driver in a small 3 mm x 3 mm package, optimized to drive the gates of both high−side and low−side power MOSFETs in a buck or buck−boost application. VCC UVLO ensures the MOSFETs are off when supply voltages are low. A bi−directional Enable pin provides a fault signal to the controller when a UVLO fault is detected.
Applications
- E−Cigarettes
- Unmanned Aerial Vehicles (UAV)
Key features
- Space−Efficient 3 mm x 3 mm DFN8 Thermally−Enhanced Package
- VCC Range of 4.5 V to 13.2 V
- Integrated Bootstrap Diode
- Compatible with 3.3 V and 5 V PWM Inputs
- Bi−Directional Enable Feature Pulls Enable Pin low during a UVLO Fault.
- Adaptive Anti−Cross Conduction Circuit Protects against Cross−Conduction during FET Turn−on and Turn−off
- Output Disable Control Turns Off Both MOSFETs
- VCC Undervoltage Lockout
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
