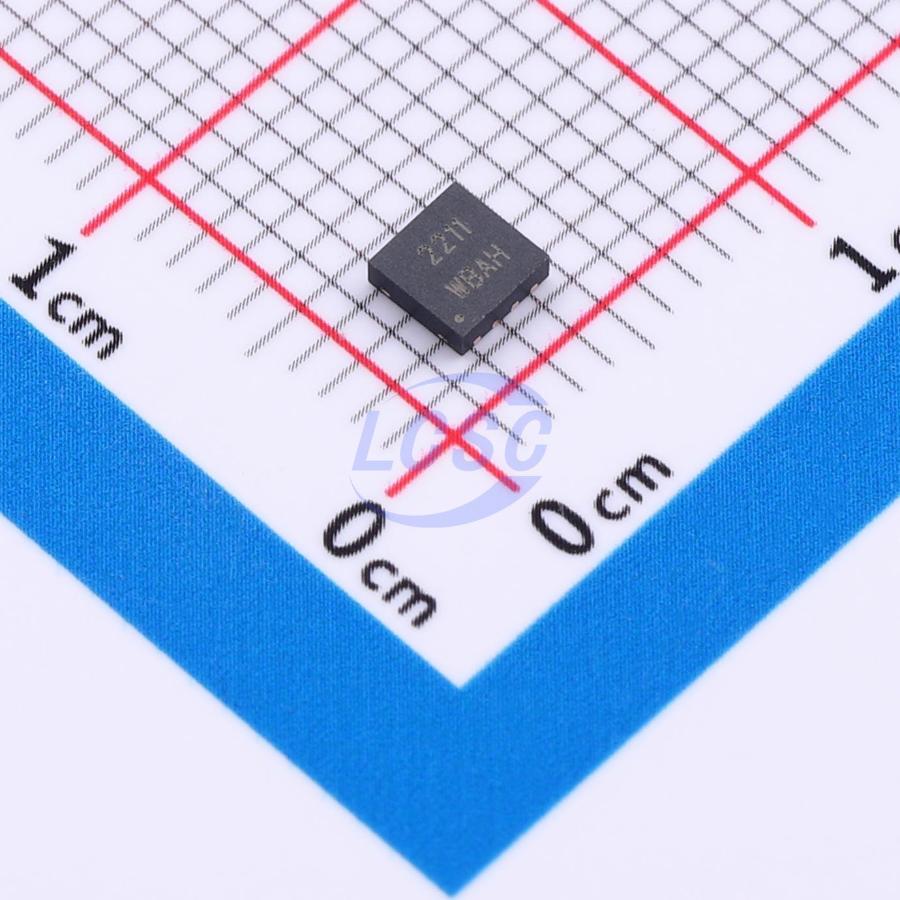

HGSEMI

NCS2211DQ3/TR

2mA 1.9V~5.5V 1-Channel Class AB DFN-8(3x3) Audio Amplifiers

DFN-8(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: NCS2211DQ3/TR
Store part #: C52121512
Package / case: DFN-8(3x3)
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,944 in stock

#C52121512

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹58.89	₹58.89
10+	₹46.62	₹466.20
30+	₹41.30	₹1,239.00
100+	₹34.77	₹3,477.00
500+	₹31.70	₹15,850.00
1,000+	₹30.06	₹30,060.00

Quantity (min 1)

1 × ₹58.89

₹58.89

excl. GST

₹69.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

NCS2211DQ3/TR

₹58.89 for 1 + GST

Specifications

Quiescent Current: 2mA
Voltage - Supply: 1.9V~5.5V
Total Harmonic Distortion + Noise (THD+N): 0.08%
Features: Automatic mute/no-noise switch;Enable/shutdown function
Number of Inputs: 1 Pair Differential Inputs
Signal-to-Noise Ratio: 98dB
Speaker Channels: 1-Channel
Output Power: 2.9Wx1@4Ω;1.8Wx1@8Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 80dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.177 g

Overview

The NCS2211 is a 3W mono Class AB audio power amplifier operating over a supply voltage range of 1.9–5.5V. The device uses a BTL bridge configuration and can deliver an average output power of 3.0W into a 4Ω load with less than 10% THD at a 5V supply. In shutdown mode, the typical current consumption is less than 0.5μA. The amplifier is designed to deliver adequate power and high-fidelity audio output with minimal external components, requiring no output coupling capacitors or bootstrap capacitors. Available in SOP-8 and DFN-8 packages to help save board space, it is ideal for mobile phones and other portable devices utilizing low-voltage, low-power solutions.

Applications

Mobile phones
Amplifiers and Bluetooth speakers
Radios
GPS devices and dash cams
Voice toys

Key features

Operating voltage range: 1.9 - 5.5V
Innovative "click and pop" suppression technology eliminates turn-on and turn-off noise
Output power up to 2.9W at 10% THD+N, 5V supply, 4Ω load
Output power up to 1.8W at 10% THD+N, 5V supply, 8Ω load
Shutdown current less than 0.5μA
Thermal shutdown protection
Available in SOP-8 and DFN-8 packages
