onsemiDatasheet (PDF)

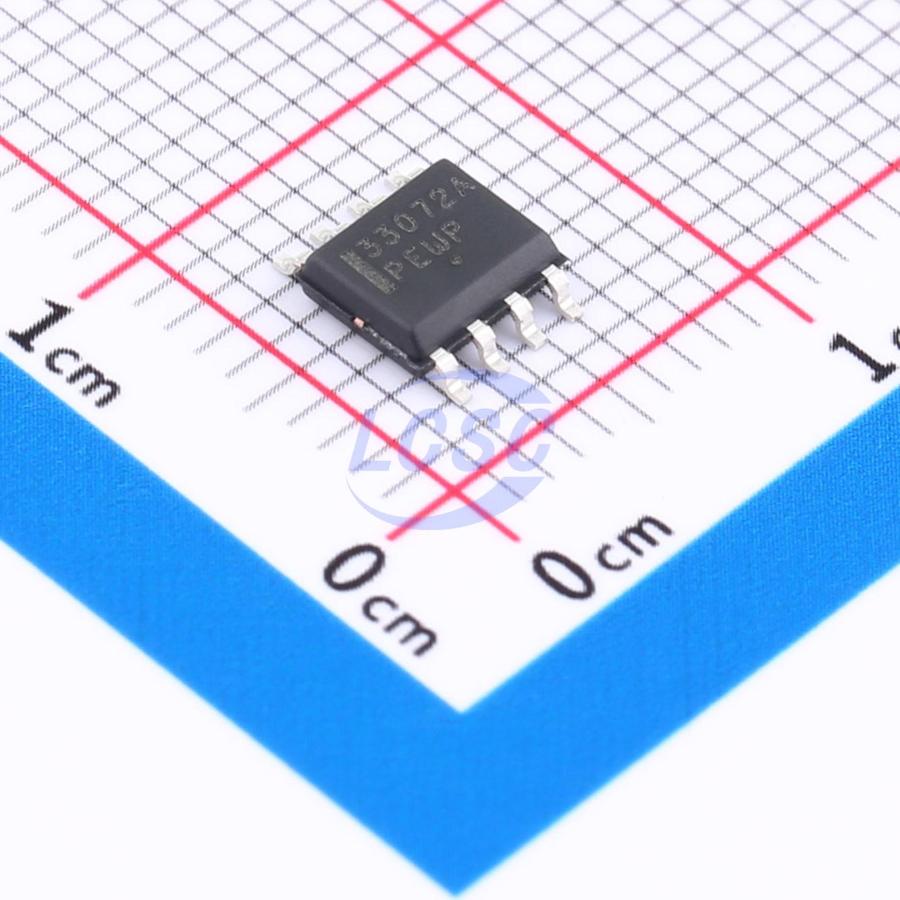

NCV33072ADR2G
30mA 2 500uV 13V/us 97dB 100nA 1.9mA 4.5MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Single Supply 3.0 V to 44 V Operational Amplifiers
- Manufacturer
- onsemi
- Manufacturer part #
- NCV33072ADR2G
- Store part #
- C904598
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C904598
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.73 | ₹119.73 |
| 10+ | ₹96.70 | ₹967.00 |
| 30+ | ₹85.19 | ₹2,555.70 |
| 100+ | ₹73.89 | ₹7,389.00 |
| 500+ | ₹67.16 | ₹33,580.00 |
| 1,000+ | ₹63.45 | ₹63,450.00 |
1 × ₹119.73
₹119.73
excl. GST
₹141.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV33072ADR2G
₹119.73 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 6nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 97dB
- Ib - Input Bias Current
- 100nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 1.9mA
- Gain Bandwidth Product
- 4.5MHz
- Features
- High capacitive load driving;Short-Circuit Protection;ESD protection
- Input Voltage Noise Density
- 32nV/√Hz@1kHz
- Single Supply
- 3V~44V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.134 g
