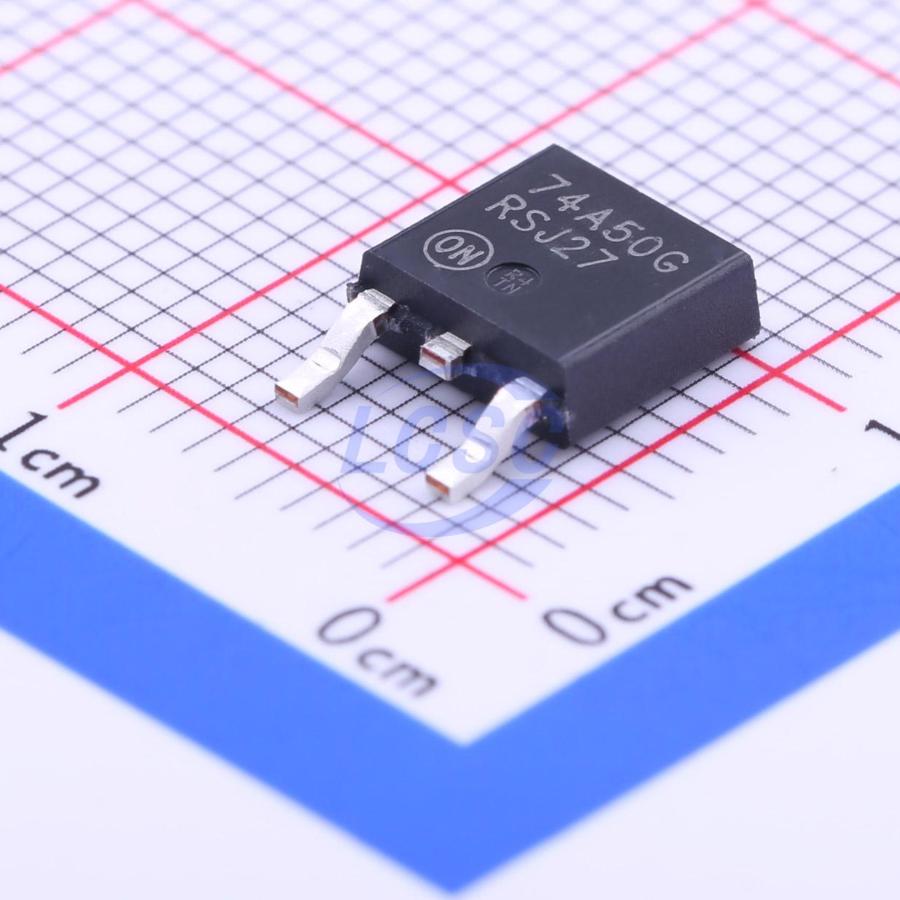

NCV4274ADT50RKG
5V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
400 mA, 2% and 4% Voltage Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4274ADT50RKG
- Store part #
- C233416
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,564 in stock
#C233416
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.70 | ₹132.70 |
| 10+ | ₹105.72 | ₹1,057.20 |
| 30+ | ₹92.24 | ₹2,767.20 |
| 100+ | ₹78.74 | ₹7,874.00 |
| 500+ | ₹70.93 | ₹35,465.00 |
| 1,000+ | ₹66.79 | ₹66,790.00 |
1 × ₹132.70
₹132.70
excl. GST
₹156.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV4274ADT50RKG
₹132.70 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 150uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
The NCV4274 and NCV4274A is a precision micro−power voltage regulator with an output current capability of 400 mA available in the DPAK, D2PAK and SOT−223 packages. The output voltage is accurate within ±2.0% or ±4.0% depending on the version with a maximum dropout voltage of 0.5 V with an input up to 40 V. Low quiescent current is a feature drawing only 150 μA with a 1 mA load. This part is ideal for automotive and all battery operated microprocessor equipment. The regulator is protected against reverse battery, short circuit, and thermal overload conditions. The device can withstand load dump transients making it suitable for use in automotive environments.
Key features
- 2.5, 3.3 V, 5.0 V, 8.5 V, ±2.0% Output Options
- 2.5, 3.3 V, 5.0 V, ±4.0% Output Options
- Low 150 μA Quiescent Current at 1 mA load current
- 400 mA Output Current Capability
- Fault Protection
- +60 V Peak Transient Voltage with Respect to GND -42 V Reverse Voltage Short Circuit Thermal Overload
- Very Low Dropout Voltage
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV4274CDT50RKG#C603928onsemi · DPAK | onsemi | DPAK | 65 | ₹200.62 · 65 in stock | View |
 | TLE42744DV50#C118977Infineon · TO-252-2(DPAK) | Infineon | TO-252-2(DPAK) | 378 | ₹134.05 · 378 in stock | View |
 | TLE4274D V50#C539714Infineon · TO-252 | Infineon | TO-252 | 303 | ₹124.02 · 303 in stock | View |
 | BD450M5FP-CE2#C308598ROHM · TO-252 | ROHM | TO-252 | 1,123 | ₹96.05 · 1,123 in stock | View |
 | TL720M05QKVURQ1#C486028TI · TO-252 | TI | TO-252 | 2,561 | ₹159.37 · 2,561 in stock | View |
