onsemiDatasheet (PDF)

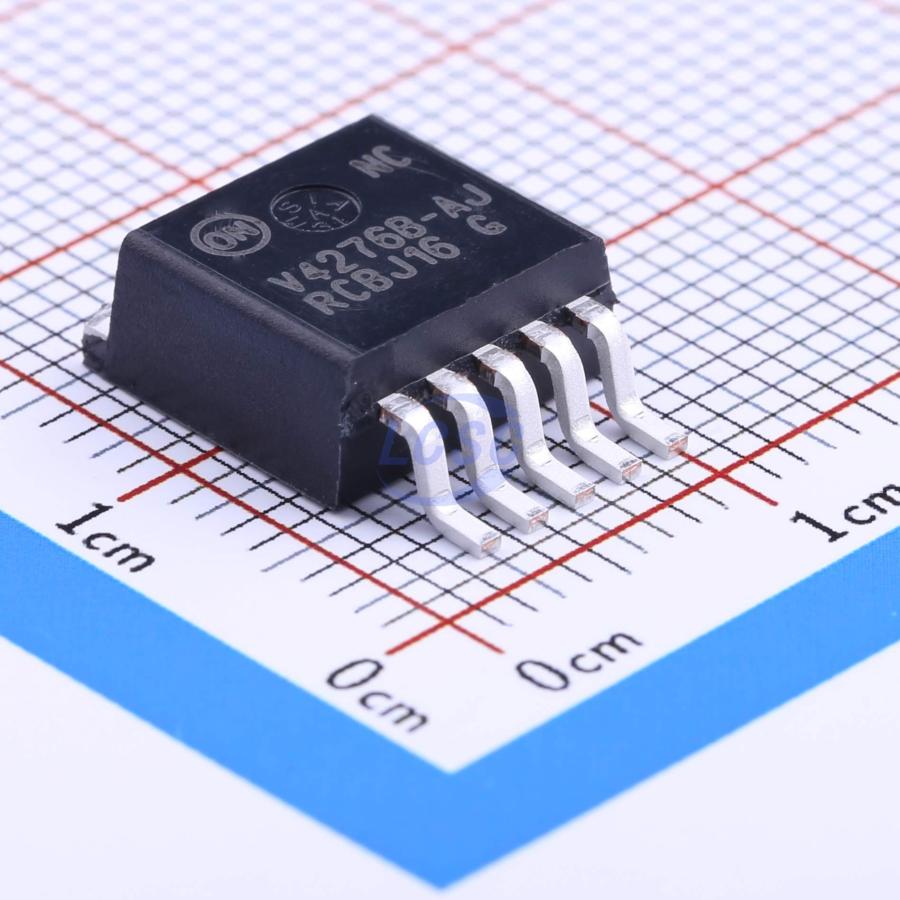

NCV4276BDSADJR4G
2.5V~20V Positive Adjustable D2PAK-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
D2PAK-5ROHS3 CompliantActive
400 mA Low-Drop Voltage Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4276BDSADJR4G
- Store part #
- C89269
- Package / case
- D2PAK-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
607 in stock
#C89269
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.16 | ₹223.16 |
| 10+ | ₹192.54 | ₹1,925.40 |
| 30+ | ₹175.80 | ₹5,274.00 |
| 100+ | ₹156.68 | ₹15,668.00 |
| 500+ | ₹148.20 | ₹74,100.00 |
| 800+ | ₹144.51 | ₹1,15,608.00 |
1 × ₹223.16
₹223.16
excl. GST
₹263.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
NCV4276BDSADJR4G
₹223.16 for 1 + GST
Specifications
- Output Voltage
- 2.5V~20V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Enable control;Reverse polarity voltage protection;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.66 g
Overview
The NCV4276B is a 400 mA output current integrated low dropout regulator family designed for use in harsh automotive environments. It includes wide operating temperature and input voltage ranges. The device is offered with 3.3 V, 5.0 V, and adjustable voltage versions available in 2% output voltage accuracy. It has a high peak input voltage tolerance and reverse input voltage protection. It also provides overcurrent protection, overtemperature protection and inhibit for control of the state of the output voltage. The NCV4276B family is available in DPAK and D²PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. The NCV4276B has improved startup behavior during input voltage transients.
Key features
- 3.3 V, 5.0 V, and Adjustable Voltage Version (from 2.5 V to 20 V ±2% Output Voltage
- 400 mA Output Current
- 500 mV (max) Dropout Voltage (5.0 V Output)
- Inhibit Input
- Very Low Current Consumption
- Fault Protection: +45 V Peak Transient Voltage, -42 V Reverse Voltage, Short Circuit, Thermal Overload
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42764GVATMA1#C5310865Infineon · TO-263-5 | Infineon | TO-263-5 | 11 | ₹299.45 · 11 in stock | View |
 | TLE4276GV#C539727Infineon · TO-263-5 | Infineon | TO-263-5 | 14 | ₹490.08 · 14 in stock | View |
| IFX25401TBV#C3750347Infineon · TO-263-5 | Infineon | TO-263-5 | On request | ₹68.78 · 0 in stock | View | |
