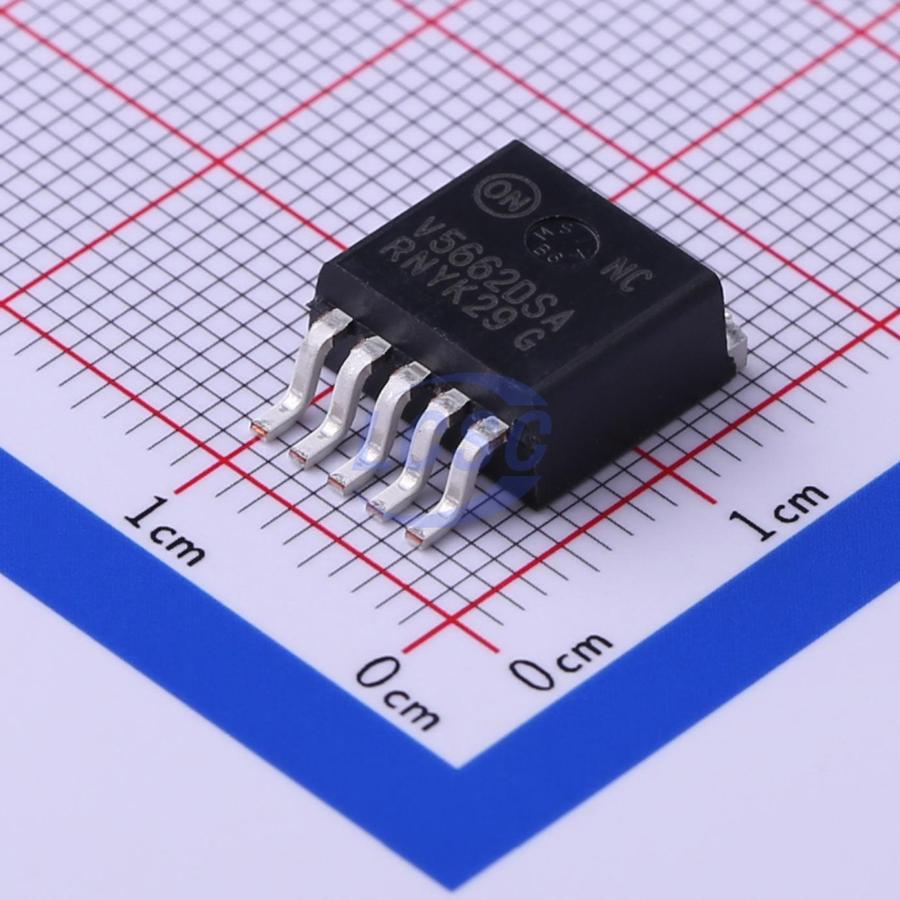

NCV5662DSADJR4G
900mV~7.7V Positive Adjustable D2PAK-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
D2PAK-5ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCV5662DSADJR4G
- Store part #
- C462926
- Package / case
- D2PAK-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
800 in stock
#C462926
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.99 | ₹171.99 |
| 10+ | ₹167.86 | ₹1,678.60 |
| 30+ | ₹165.04 | ₹4,951.20 |
| 100+ | ₹162.44 | ₹16,244.00 |
1 × ₹171.99
₹171.99
excl. GST
₹202.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
NCV5662DSADJR4G
₹171.99 for 1 + GST
Specifications
- Output Voltage
- 900mV~7.7V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 3mA
- Output Configuration
- Positive
- Operating Voltage
- 9V
- Output Current
- 2A
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.662 g
Overview
The NCP5662/NCV5662 is a high performance, low dropout linear regulator designed for high power applications that require up to 2.0 A current. It is offered in both fixed and adjustable output versions. With output voltages as low as 0.9 V and ultra−fast response times for load transients, the NCP5662/NCV5662 also provides additional features such as Enable and Error Flag (for the fixed output version), increasing the utility of these devices. A thermally robust, 5 pin D²PAK or DFN8 package, combined with an architecture that offers low ground current (independent of load), provides for a superior high−current LDO solution.
Applications
- Servers
- ASIC Power Supplies
- Post Regulation for Power Supplies
- Constant Current Source
- Networking Equipment
- Gaming and STB Modules
Key features
- Ultra−Fast Transient Response (Settling Time: 1 - 3 μs)
- Low Noise Without Bypass Capacitor (26 μVrms)
- Low Ground Current Independent of Load (3.0 mA Maximum)
- Fixed/Adjustable Output Voltage Versions
- Enable Function
- Error Flag (Fixed Output Version)
- Current Limit Protection
- Thermal Shutdown Protection (160°C)
- 0.9 V Reference Voltage for Ultra−Low Output Operation
- Power Supply Rejection Ratio > 65 dB
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCP5663DSADJR4G#C719795onsemi · D2PAK-5 | onsemi | D2PAK-5 | 51 | ₹402.67 · 51 in stock | View | |
