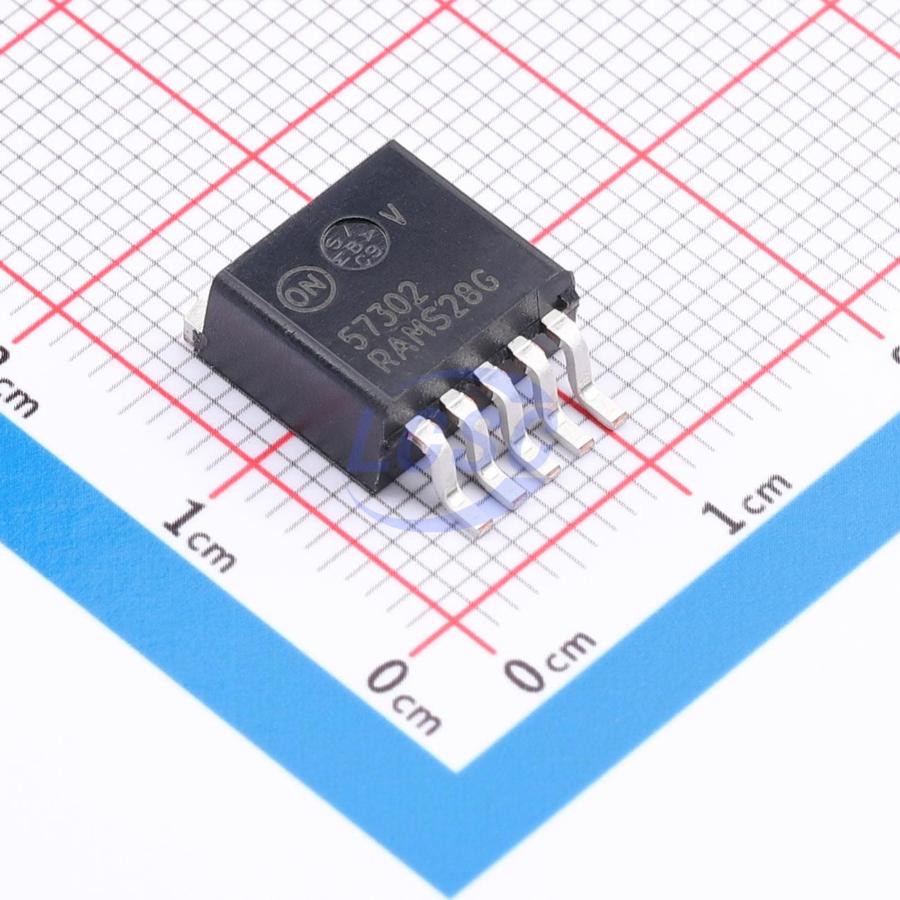

NCV57302DSADJR4G

The NCP57302 is a high precision, very low dropout (VLDO), low minimum input voltage and low ground current positive voltage regulator that is capable of providing an output current in excess of 3.0 A with a typical dropout voltage of 315 mV at 3.0 A load current and input voltage from 1.8 V and up. The device is stable with ceramic output capacitors. The device can withstand up to 18 V max input voltage. Internal protection features consist of output current limiting, built−in thermal shutdown and reverse output current protection. Logic level enable pin is available. The NCP57302 is an adjustable voltage device and is available in D2PAK−5 package.

Applications

• Consumer and Industrial Equipment Point of Regulation
• Servers and Networking Equipment
• FPGA, DSP and Logic Power supplies
• Switching Power Supply Post Regulation
• Battery Chargers
• Functional Replacement for Industry Standard MIC29300, MIC39300, MIC37300 with Improved Minimum Input Voltage Specification

Key features

• Output Current in Excess of 3.0 A
• Minimum Operating Input Voltage 1.8 V for Full 3 A Output Current
• 315 mV Typical Dropout Voltage at 3.0 A
• Adjustable Output Voltage Range from 1.24 V to 13 V
• Low Ground Current
• Fast Transient Response
• Stable with Ceramic Output Capacitor
• Logic Compatible Enable Pin
• Current Limit, Reverse Current and Thermal Shutdown Protection
• Operation up to 13.5 V Input Voltage
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
