onsemiDatasheet (PDF)

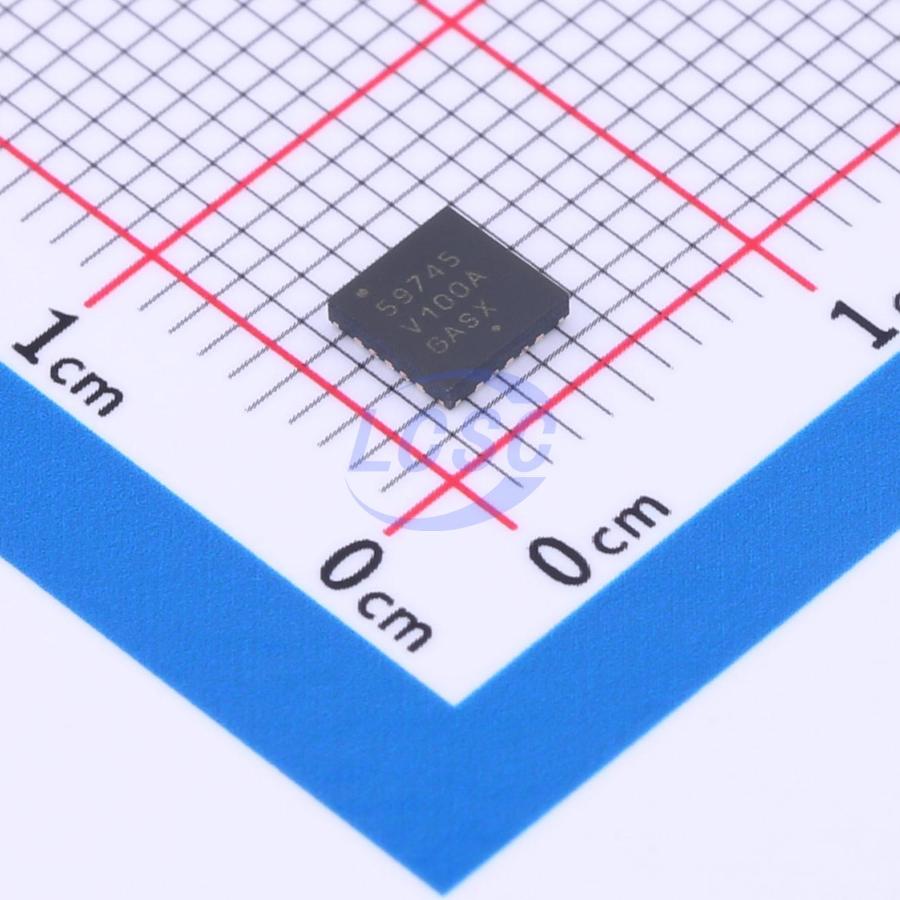

NCV59745AMW100TAG
1V Positive Fixed QFN-20-EP(4x4) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
QFN-20-EP(4x4)ROHS3 CompliantActive
Linear Voltage Regulator, Bias Rail, Low Noise, Very Low Dropout, Programmable Soft - Start, 3A
- Manufacturer
- onsemi
- Manufacturer part #
- NCV59745AMW100TAG
- Store part #
- C892992
- Package / case
- QFN-20-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C892992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹218.78 | ₹218.78 |
| 10+ | ₹214.00 | ₹2,140.00 |
| 30+ | ₹210.73 | ₹6,321.90 |
| 100+ | ₹207.46 | ₹20,746.00 |
1 × ₹218.78
₹218.78
excl. GST
₹258.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV59745AMW100TAG
₹218.78 for 1 + GST
Specifications
- Output Voltage
- 1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Output Type
- Fixed
- Features
- Enable control;Adjustable soft-start;Operating status indication;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
The NCV59745 is very low dropout low noise dual−rail voltage regulator that is capable of providing an output current in excess of 3.0 A with a dropout voltage of 115 mV typ. at full load current. This series contains fixed output voltage devices. The high output current capability with high accuracy, broad bandwidth high PSRR and low noise makes this VLDOs ideal for powering noise sensitive high speed communication devices, high end FPGAs and microprocessors.
Applications
- High Speed Analog VCO, DAC, ADC
- FPGAs, DSPs, SerDes
- Imaging Sensors and ASICs
- Automotive, Telecom and Industrial Equipment Point of Load Regulation
Key features
- Output Current in Excess of 3.0 A
- 0.25% Typical Accuracy Over Line and Load
- ΔVIN Range: 0.8 V to 5.5 V
- VBIAS Range: 2.2 V to 5.5 V
- Output Voltage Range: 0.8 V to 3.6 V
- Dropout Voltage: 105 mV typ. at 3 A
- Programmable Soft Start
- Open Drain Power Good Output
- Low Noise, 6 μVRMS Typically
- Excellent Transient Response
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices, Wettable Flank for AOI
