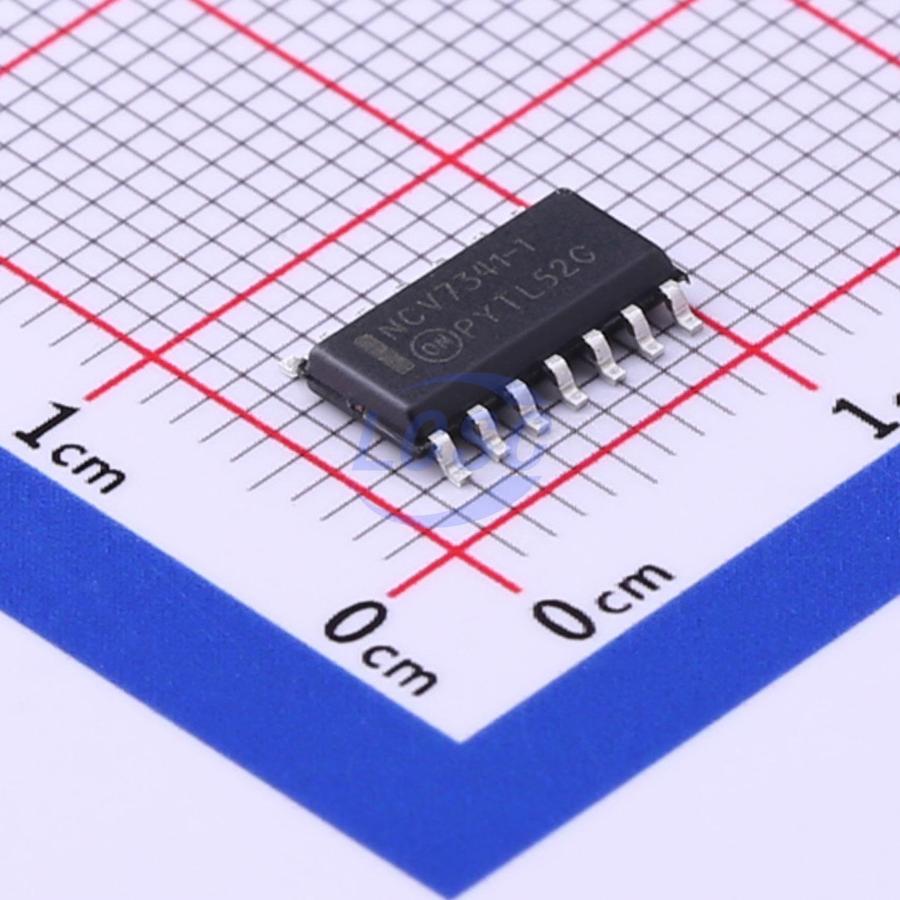

NCV7341D21R2G

The NCV7341 CAN transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus and may be used in both 12 V and 24 V systems. The transceiver provides differential transmit capability to the bus and differential receive capability to the CAN controller. Due to the wide common−mode voltage range of the receiver inputs, the NCV7341 is able to reach outstanding levels of electromagnetic susceptibility (EMS). Similarly, extremely low electromagnetic emission (EME) is achieved by the excellent matching of the output signals.

Applications

• Automotive
• Industrial Networks

Key features

• Ideal Passive Behavior when Supply Voltage is Removed
• Separate V_IO Supply for Digital Interface Allowing Communication to CAN Controllers and Microcontrollers with Different Supply Levels
• Fully Compatible with the ISO 11898 Standard
• High Speed (up to 1 Mb)
• Very Low Electromagnetic Emission (EME)
• VSPLIT Voltage Source for Stabilizing the Recessive Bus Level if Split Termination is Used (Further Improvement of EME)
• Differential Receiver with High Common−Mode Range for Electromagnetic Immunity (EMI)
• Up to 110 Nodes can be Connected in Function of the Bus Topology
• Transmit Data (TxD) Dominant Time−out Function
• Bus Error Detection with Version NCV7341D20
• Bus Pins Protected Against Transients in Automotive Environments
• Bus Pins and Pin VSPLIT Short−Circuit Proof to Battery and Ground
• Thermally Protected
• NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls
• These are Pb−Free Devices
