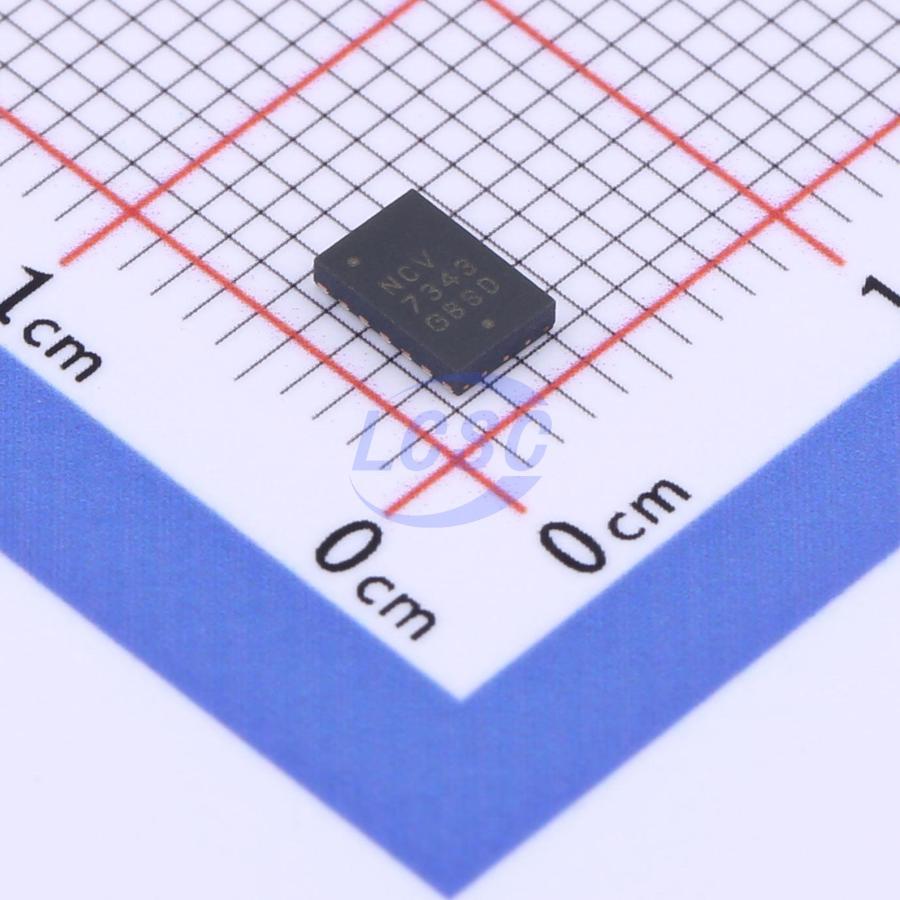

NCV7343MW0R2G

The NCV7343 CAN FD transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus. The transceiver provides differential transmit capability to the bus and differential receive capability to the CAN controller. The NCV7343 is an addition to the CAN high−speed transceiver family complementing NCV734x CAN stand−alone transceivers and previous generations such as AMIS42665, AMIS3066x, etc. The NCV7343 guarantees additional timing parameters to ensure robust communication at data rates beyond 1 Mbit/s to cope with CAN flexible data rate requirements (CAN FD). These features make the NCV7343 an excellent choice for all types of HS−CAN networks, in nodes that require a low−power mode with wake−up capability via the CAN bus.

Applications

• Automotive
• Industrial Networks

Key features

• Compliant with International Standard ISO11898−2:2016
• CAN FD Timing Specified up to 5 Mbit/s
• Extended Bus Load Range
• Standby and Sleep Mode with very Low Current Consumption
• CAN Wake−up with Wake−up Pattern (WUP), Short CAN Activity Filter Time, Long Wake−up Timeout and Normal Bus Biasing
• Local Wake−up
• VIO Pin Allowing Direct Interfacing with 3 V to 5 V MCUs
• Low Electromagnetic Emission (EME) and High Electromagnetic Susceptibility (EMS)
• High Impedance Bus Lines in Unpowered State
• Transmit Data (TxD) Dominant Timeout Function (Long)
• Bus Error Detection
• Under all Supply Conditions the Chip behaves Predictably
• ESD Robustness of Bus Pins >8 kV
• Thermal Protection
• Bus Pins Short Circuit Proof to Supply Voltage and Ground
• Bus Pins Protected against Transients in an Automotive Environment
• AEC−Q100 Grade 0 Qualified and PPAP Capable
• These are Pb−Free Devices
