onsemi

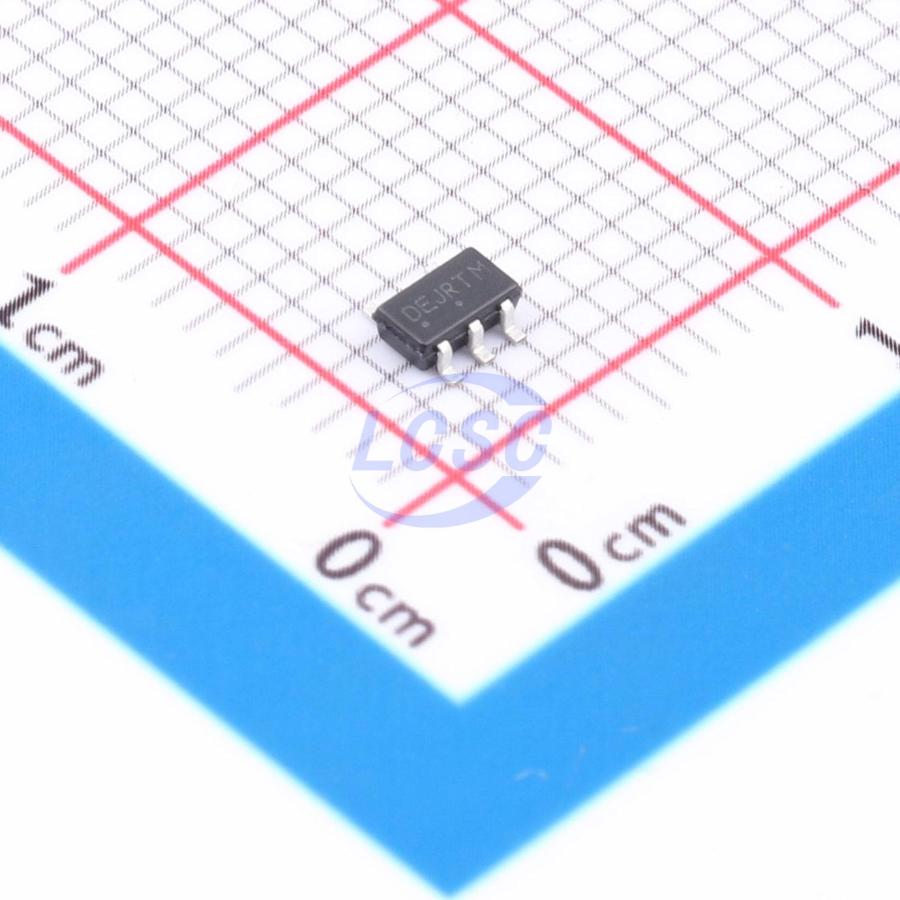

NCV8114ASN165T1G

1.65V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TSOP-5ROHS3 CompliantActive

300 mA Low Dropout Voltage Regulator

Manufacturer: onsemi
Manufacturer part #: NCV8114ASN165T1G
Store part #: C893066
Package / case: TSOP-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,610 in stock

#C893066

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹29.19	₹145.95
50+	₹23.17	₹1,158.50
150+	₹20.59	₹3,088.50
500+	₹17.37	₹8,685.00
3,000+	₹15.94	₹47,820.00
6,000+	₹15.08	₹90,480.00

Quantity (min 5, multiples of 5)

5 × ₹29.19

₹145.95

excl. GST

₹172.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV8114ASN165T1G

₹145.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.65V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The NCV8114 is 300 mA LDO that provides the engineer with a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCV8114 employs the dynamic quiescent current adjustment for very low IO consumption at no−load.

Applications

Parking Camera Modules
Wireless Handsets, Wireless LAN
Automotive Infotainment Systems
Other Battery Powered Applications

Key features

Operating Input Voltage Range: 1.7 V to 5.5 V
Available in Fixed Voltage Options: 0.9 V to 3.6 V Contact Factory for Other Voltage Options
Very Low Quiescent Current of Typ. 50 μA
Standby Current Consumption: Typ. 0.1 μA
Low Dropout: 135 mV Typical at 300 mA
±1% Accuracy at Room Temperature
High Power Supply Ripple Rejection: 75 dB at 1 kHz
Thermal Shutdown and Current Limit Protections
Stable with a 1 μF Ceramic Output Capacitor
Available in TSOP Package
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
