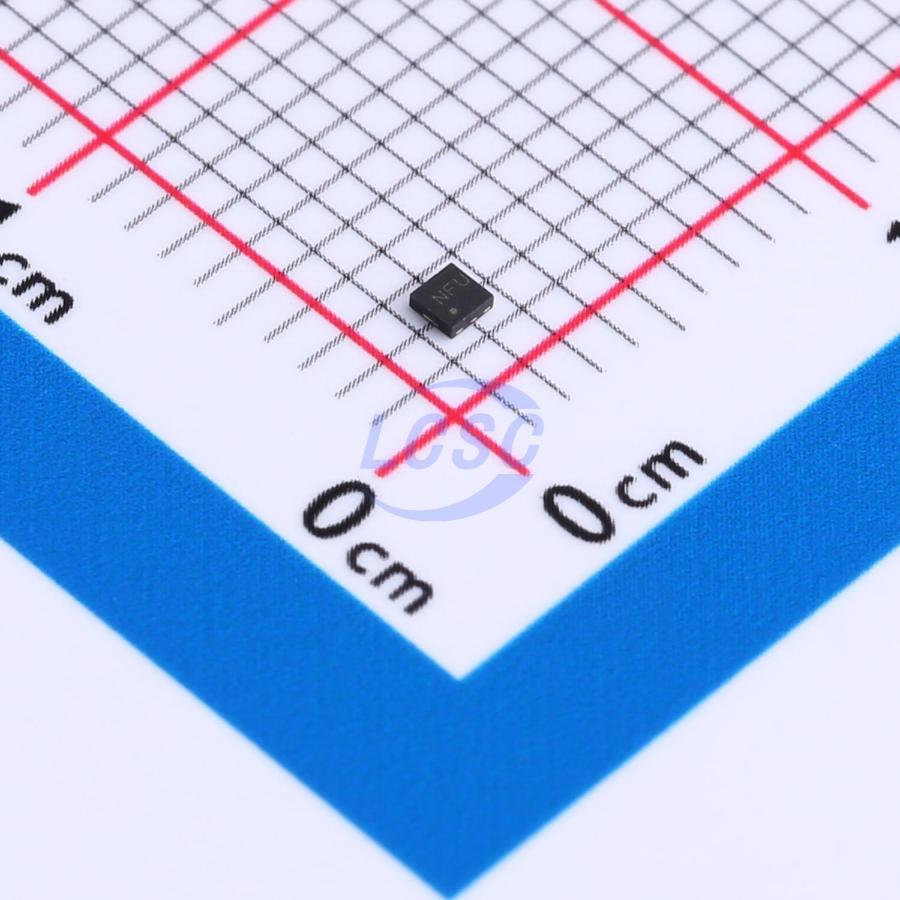

NCV8130BMX100TCG

The NCV8130 is a 300 mA VLDO equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCV8130 features low IQ consumption. The XDFN6 1.2 mm x 1.2 mm package is optimized for use in space constrained applications.

Applications

• Automotive, Consumer and Industrial Equipment Point of Load Regulation
• Battery−powered Equipment
• FPGA, DSP and Logic Power Supplies
• Switching Power Supply Post Regulation
• Cameras, DVRs, STB and Camcorders

Key features

• Input Voltage Range: 0.8 V to 5.5 V
• Bias Voltage Range: 2.4 V to 5.5 V
• Fixed Output Voltage Device
• Output Voltage Range: 0.8 V to 2.1 V
• ±1.5% Accuracy over Temperature, 0.5% VOUT @ 25°C
• Ultra−Low Dropout: 150 mV Maximum at 300 mA
• Very Low Bias Input Current of Typ. 80 μA
• Very Low Bias Input Current in Disable Mode: Typ. 0.5 μA
• Logic Level Enable Input for ON/OFF Control
• Output Active Discharge Option Available
• Stable with a 1 μF Ceramic Capacitor
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
• These are Pb−Free Devices
